SPARECRUX is NOT an authorized distributor for ALLEN BRADLEY

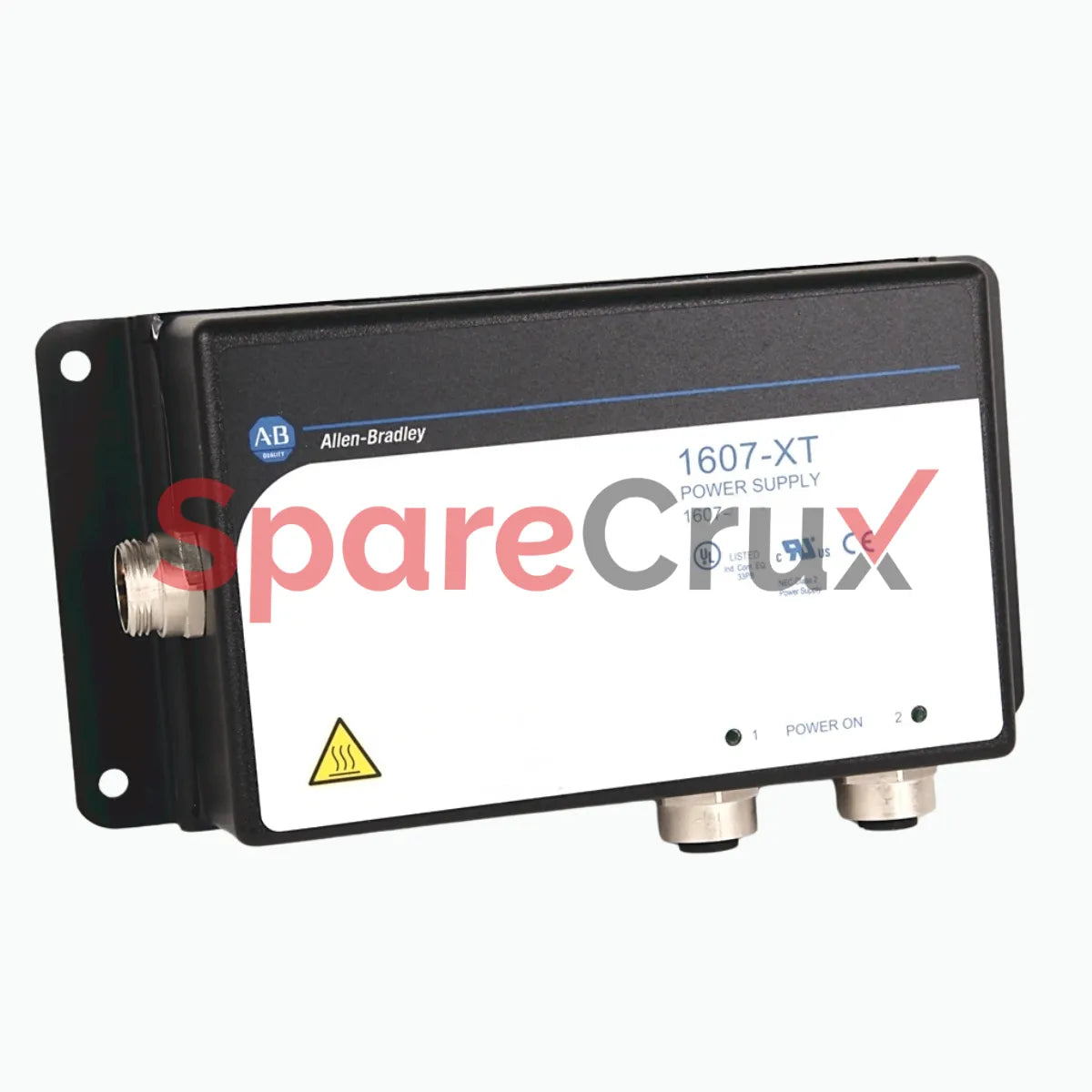

1607-XT200D2B | ALLEN BRADLEY | ArmorPower On-Machine Power Supply, 24V DC, 200W (or two 91W outputs), Dual Output, Grounded (-) Terminal, 90-264V AC / 100-300V DC Input Voltage
₹ 59,242.58
₹ 50,205.58 (Excl. Tax)
Couldn't load pickup availability
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1607-XT200D2B
Original Equipment Manufacturer
ALLEN BRADLEY
Description
1607-XT200D2B Technical Data
Attribute
Specification
Description
ArmorPower On-Machine Power Supply with dual 24V DC outputs
Input Voltage Range
100–240V AC; 100–300V DC
Input Frequency
47–63 Hz
Nominal Output Voltage
24V DC (+1%)
Output Current
3.8 A per output
Output Power
91.2 W per output
Efficiency
Up to 89% at 230V AC
Inrush Current
<25 A
Operating Temperature Range
-25°C to +60°C (-13°F to +140°F); derate 2.0%/K, 50–60°C (122–140°F)
Dimensions (W x H x D)
245 mm x 74 mm x 122 mm (9.65 in x 2.91 in x 4.80 in)
Weight
Approximately 3.04 kg (6.70 lb)
Mounting Options
On-machine mounting with IP67 rating
Certifications
UL 508, UL 60950-1, CE, cURus
For detailed technical specifications, please refer to Rockwell Automation's technical data publication 1607-TD001. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/td/1607-td001_-en-p.pdf))
