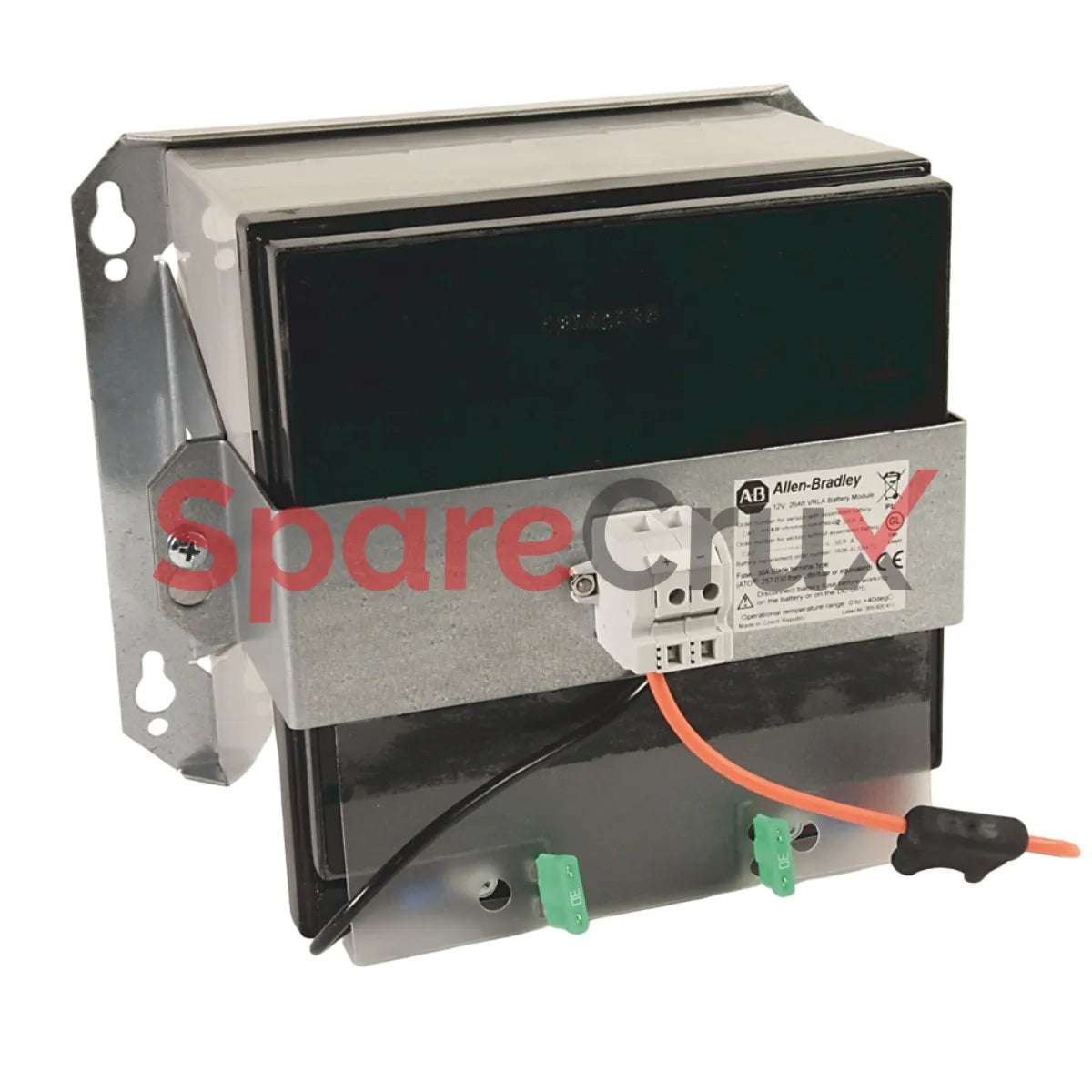

1606-XLSBATBR4 | ALLEN BRADLEY | Battery Module Bracket, 24V, 12Ah
₹ 9,023.45
₹ 7,646.99 (Excl. Tax)
Couldn't load pickup availability
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1606-XLSBATBR4
Original Equipment Manufacturer
ALLEN BRADLEY
Description
1606-XLSBATBR4 Technical Data
Attribute
Specification
Description
Battery module for 24V DC, 12 Ah applications
Nominal Voltage
24V DC
Capacity
12 Ah
Maximum Discharge Current
35A
Maximum Charging Current
3.5A
Recommended Charging Voltage at 20°C
27.5V
Self-discharge Rate
Approximately 3% per month at 20°C
Operating Temperature Range (Charging)
-10°C to +40°C
Operating Temperature Range (Discharging)
-15°C to +50°C
Storage Temperature Range
-20°C to +50°C
Dimensions (W x H x D)
203 mm x 186 mm x 143 mm (7.99 in x 7.32 in x 5.63 in)
Weight
Approximately 9.2 kg (20.3 lb) with battery
Mounting Options
DIN rail or panel/wall mounting
Certifications
GL (Marine), GOST R
For detailed installation instructions and additional technical information, please refer to Rockwell Automation's installation instructions for the 1606-XLSBATBR4 battery module. ([literature.rockwellautomation.com](https://literature.rockwellautomation.com/idc/groups/literature/documents/in/1606-in069_-en-e.pdf?utm_source=chatgpt.com))
