SPARECRUX is NOT an authorized distributor for ALLEN BRADLEY

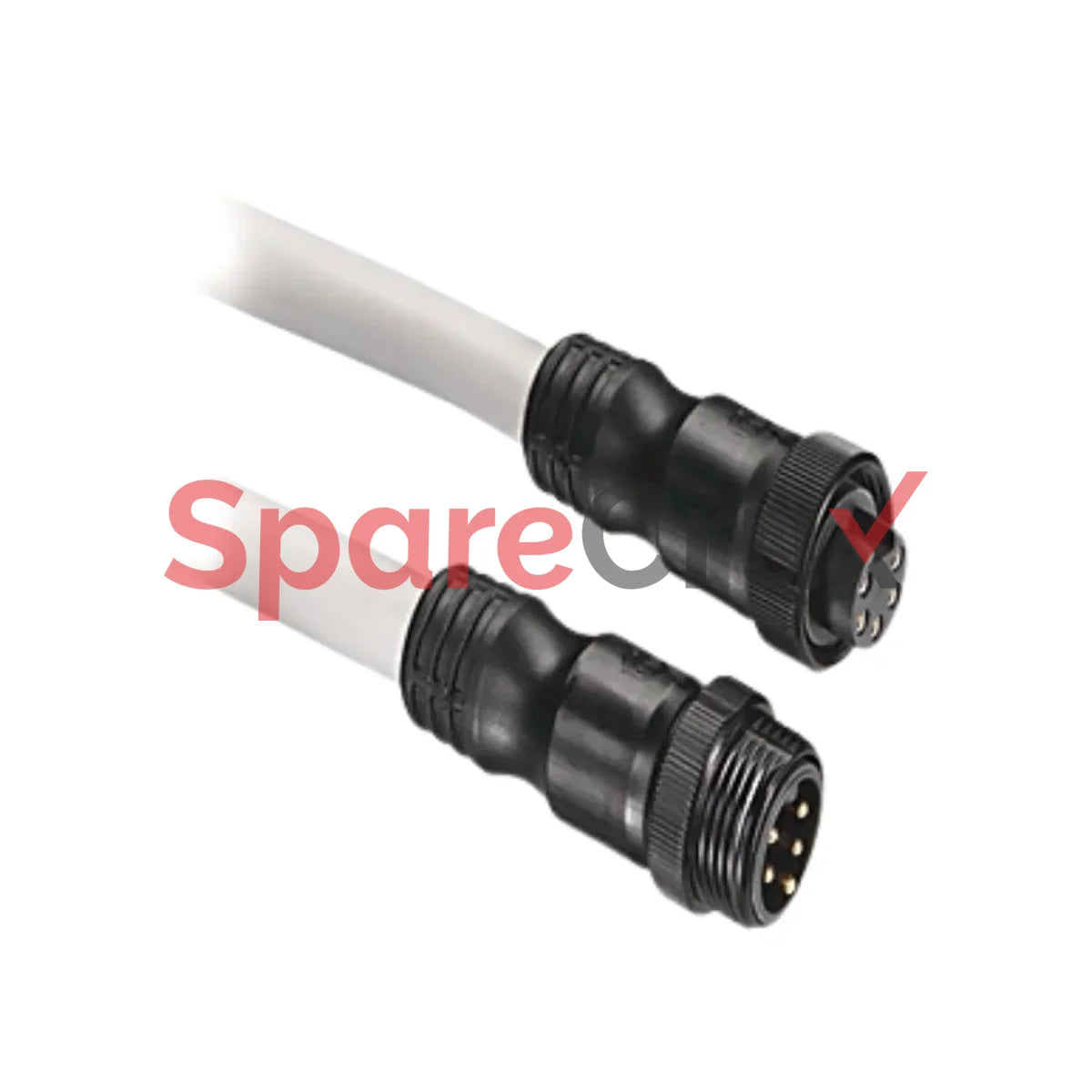

1485CS-P1N5-M5 | ALLEN BRADLEY | DeviceNet Cable, Stainless Steel, Thick Media, Mini Straight Female to Mini Straight Male, 1 m (3.28 ft), 5-Pin, Grey PVC Jacket

₹ 11,340.20

₹ 9,610.34 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1485CS-P1N5-M5

Original Equipment Manufacturer

ALLEN BRADLEY

Description

Enhance your industrial automation system with the Allen-Bradley 1485CS-P1N5-M5 DeviceNet Cordset. Built for seamless connectivity, this cordset provides a stable and reliable connection for demanding industrial environments.

Technical Specifications:
Number of Poles: 5
Degree of Protection (IP), Mounted: IP67
Number of Pins: 5
First End Connector Style: Mini, Straight Female
Second End Connector Style: Mini, Straight Male
Number of Conductors: 5
Enclosure Type Rating: NEMA 1, 2, 3, 4, 6P, 12, 13; IP67; 1200 psi (8270 kPa) washdown
Cable Diameter: Thick
Cable Type: PVC
Material: Epoxy-Coated Zinc, Gold-Plated Brass Contacts
Bend Radius: 10 x diameter
Cable Length: 5 meters (16.4 feet)
Special Characteristic: Heavy-duty passive cable
Assembly Rating: 300V, 8 A (4 A NEC)
Cable Rating: UL-Type PLTC 300V or CM 75°C (167°F) or AWM style 2464, CSA AWM I/II A/B 80°C (176°F) 300V FT1
Cable Temperature: 75°C (167°F)
