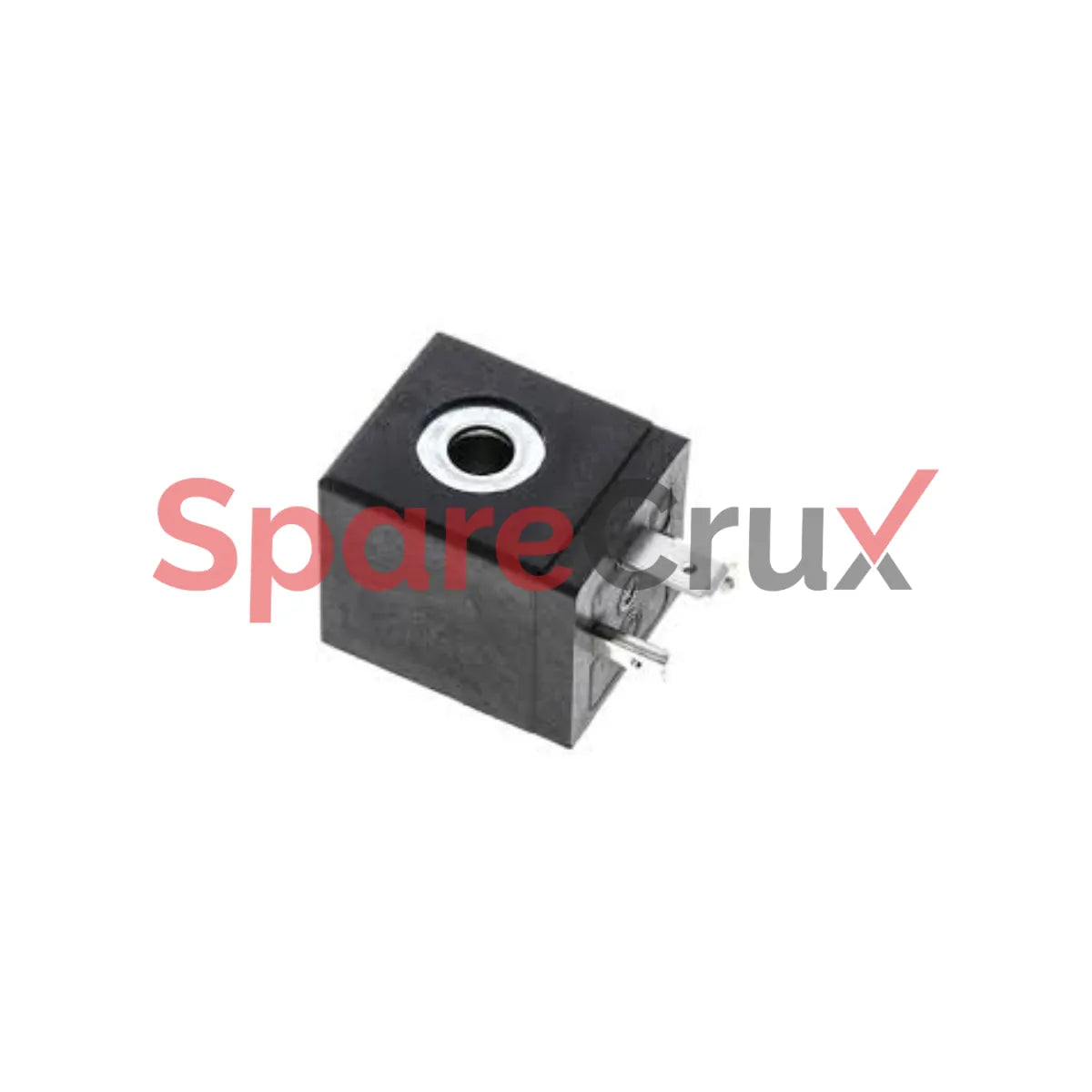

123062 | FESTO | Solenoid Coil MSN1W-230AC-OD

₹ 611.82

₹ 518.49 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

123062

Original Equipment Manufacturer

FESTO

Description

Parameter Value
Mounting position Optional
Min. pick-up time 10 ms
Duty cycle 100%
Power factor (cos φ) 0.7
Coil Data (230 V AC, 50 Hz) Pick-up: 7.5 VAHolding: 5.0 VA
Coil Data (230 V AC, 60 Hz) Pick-up: 5.0 VAHolding: 3.7 VA
Permissible voltage fluctuation ±10%
Protection class IP65
Ambient temperature -10 °C ... +50 °C
Media temperature -10 °C ... +50 °C
Weight 80 g
Electrical connection 3-pin, Type A (per DIN EN 175301-803)
Mounting Via retaining clamp / With accessories
Certification DNV-TAA000032X, CE (EU LVD), UKCA
PWIS (LABS) conformity VDMA24364-C1-L
Material – Housing Polyamide (PA)
Material – Electrical contact Steel
Material – Winding Copper
