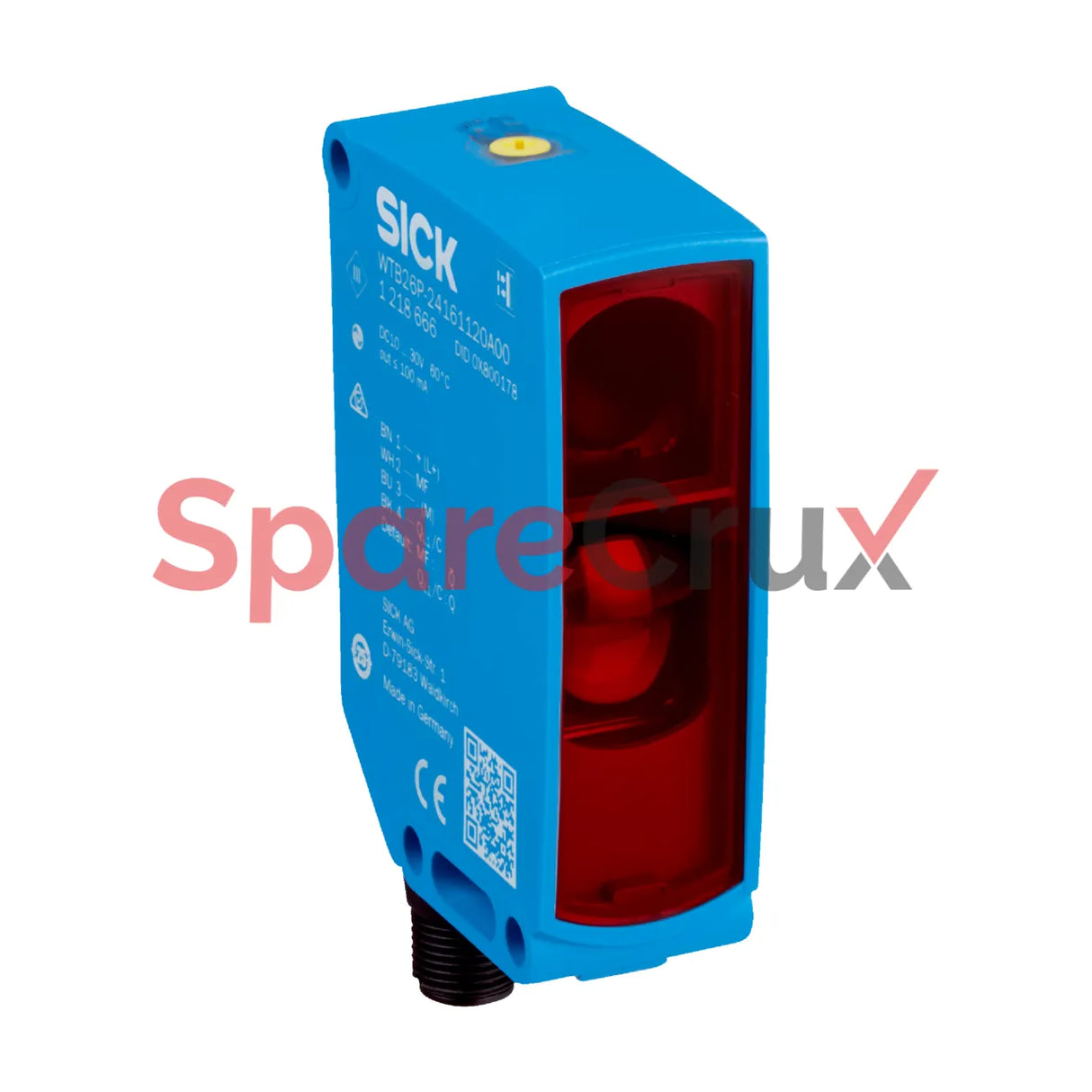

1221726 | SICK SENSORS | WTB26I-24162120A00 Photoelectric Proximity Sensor

₹ 32,689.42

₹ 27,702.90 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Supply voltage UB 10 V DC ... 30 V DC
Ripple ≤ 5 Vpp
Current consumption ≤ 30 mA, without load (at UB = 24 V)
Protection class III
Housing Rectangular
Dimensions (W x H x D) 24.6 mm x 82.5 mm x 53.3 mm
Connection Male connector M12, 4-pin



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1221726

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle - Photoelectric proximity sensor

Functional principle detail - Background suppression

Sensing range min. - 30 mm

Sensing range max. - 2,000 mm

Adjustable switching threshold - 180 mm ... 2,000 mm

Reference object - 90% remission (DIN 5033 standard white)

Min. distance (set range/background) - 85 mm (at 800 mm distance)

Recommended sensing range - 200 mm ... 800 mm

Normative reference - EN 62471:2008-09 / IEC 62471:2006

LED risk group - Free group

Wave length - 850 nm

Average service life - 100,000 h at $+25\text{ °C}$

Supply voltage UB - 10 V DC ... 30 V DC

Ripple - ≤ 5 Vpp

Housing - Rectangular

Dimensions (W x H x D) - 24.6 mm x 82.5 mm x 53.3 mm

Connection - Male connector M12, 4-pin

Housing material - Plastic, VISTAL®

Front screen - Plastic, PMMA

Male connector material - Plastic, VISTAL®

Weight - Approx. 80 g

Maximum tightening torque of the fixing screws - 1.3 Nm

MTTFD - 626 years

DCavg - 0%

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

ECOLAB certificate - ✔

cULus certificate - ✔

IO-Link certificate - ✔

Photobiological safety (DIN EN 62471) certificate - ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) - ✔

ECLASS 5.1.4 - 27270902

ECLASS 6.0 - 27270902

ECLASS 7.0 - 27270902

ECLASS 8.0 - 27270902

ECLASS 9.0 - 27270902

ECLASS 10.0 - 27270902

ECLASS 11.0 - 27270902

ECLASS 12.0 - 27270902
