SPARECRUX is NOT an authorized distributor for SICK SENSORS

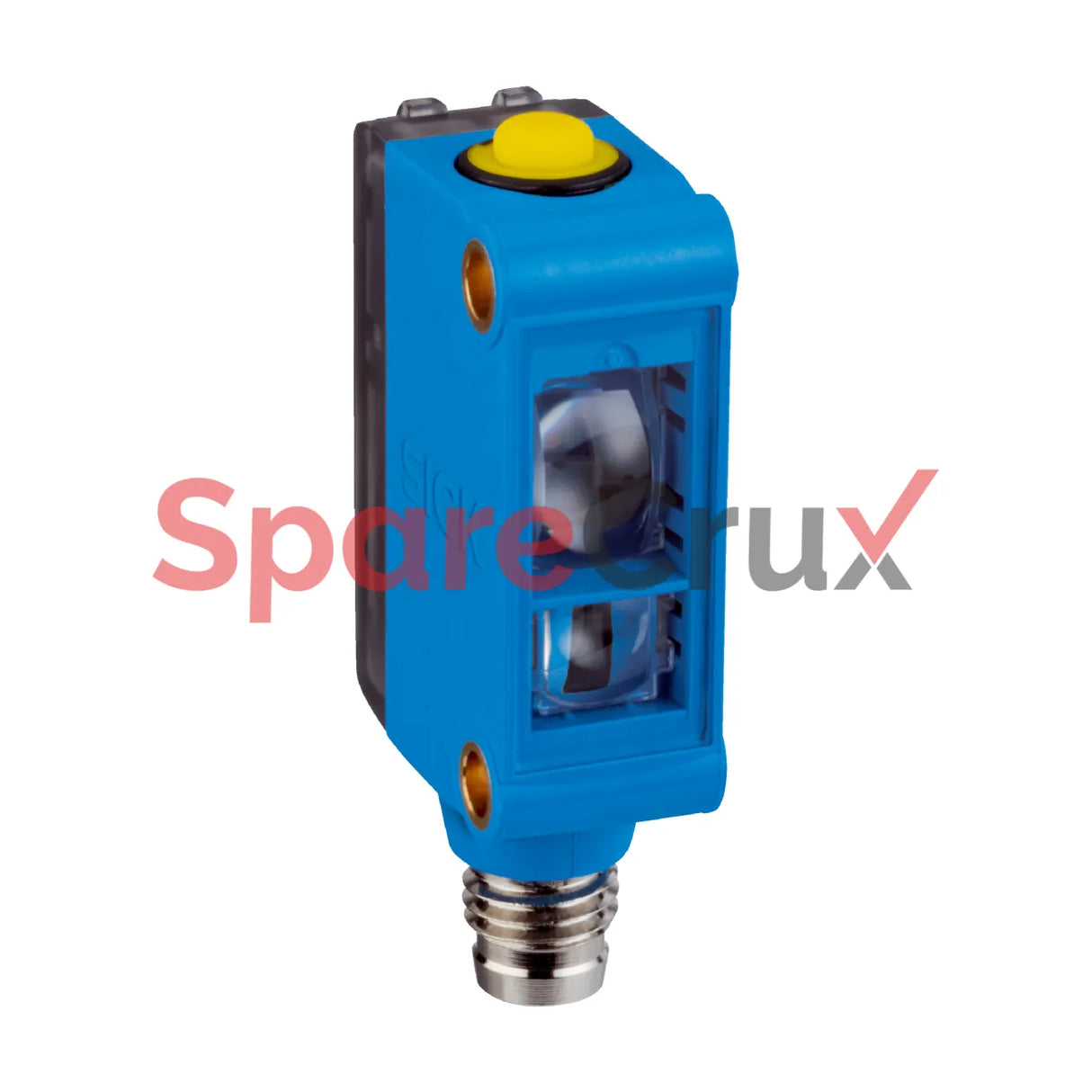

1122730 | SICK SENSORS | CSM-WP111C1P Color Sensor

₹ 25,094.35

₹ 21,266.40 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1122730

Original Equipment Manufacturer

SICK SENSORS

Description
Supply voltage 12 V DC ... 24 V DC 1)
Ripple < 5 Vpp 2)
Current consumption < 50 mA 3)
Switching frequency 1.7 kHz 4)
Response time 300 µs 5)
Jitter 150 µs
Switching output PNP
Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
Switching mode Light/dark switching
Output (channel) 1 color
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance ≤ 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design Small
Light source LED, RGB 1)
Wave length 640 nm, 525 nm, 470 nm
Light spot size 1.9 mm x 9.4 mm
Light spot direction Vertical
Adjustment Teach-in button
Teach-in mode

Teach-in static/dynamic

ET: Teach-in dynamic



SICK SENSORS 1122730 CSM-WP111C1P Color Sensor
