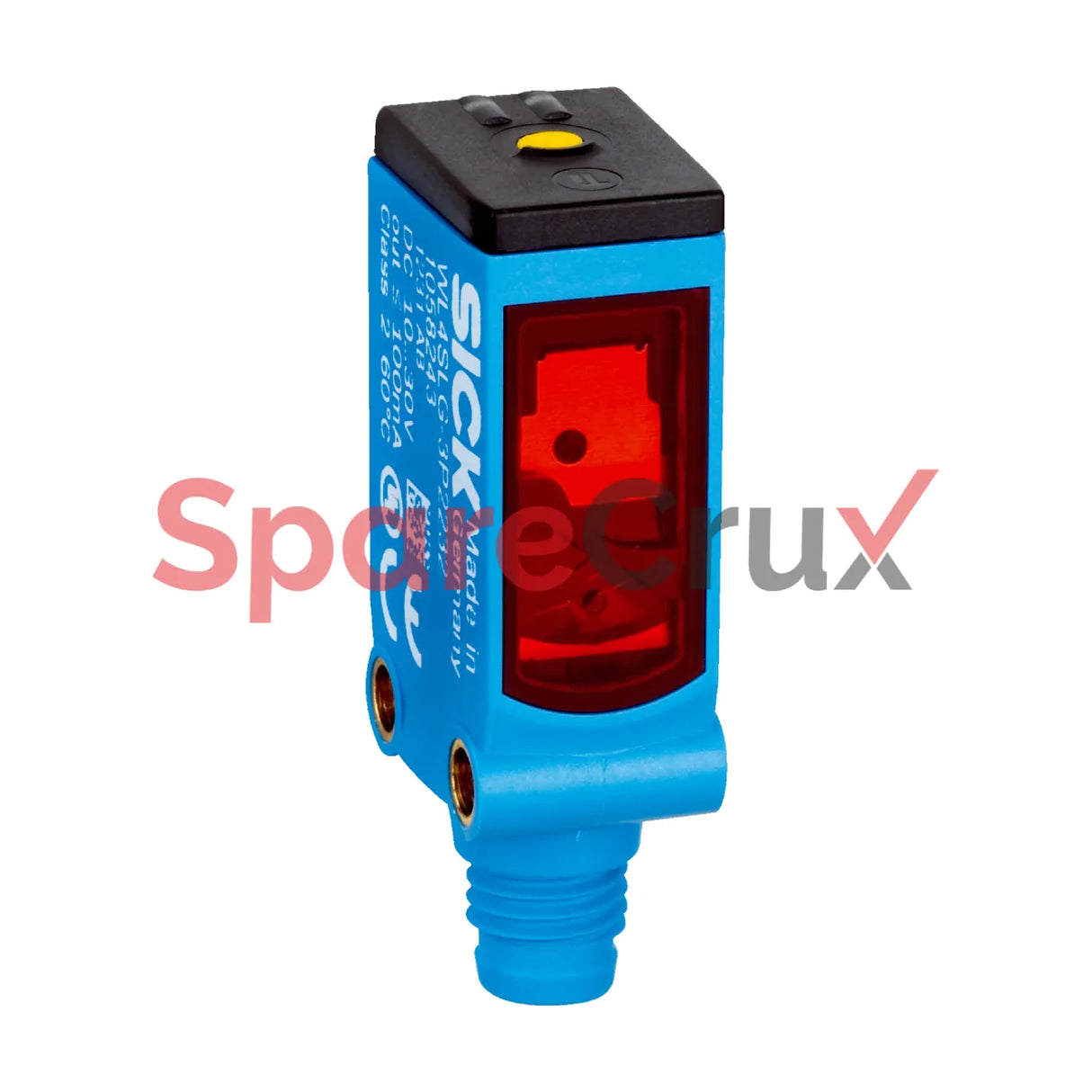

1098509 | SICK SENSORS | WL4SLC-3P2232A72 Photoelectric Retro-Reflective Sensor

₹ 38,610.07

₹ 32,720.40 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional Principle Photoelectric retro-reflective sensor
Functional Principle Detail Without reflector minimum distance (autocollimation/coaxial optics)
Sensing Range Max. 0 m ... 12 m
Sensing Range 0 m ... 8 m
Polarisation Filters Yes
Supply Voltage UB 10 V DC ... 30 V DC
Ripple < 5 Vpp
Current Consumption 30 mA
Protection Class III
Housing Rectangular
Design Detail Slim
Dimensions (W x H x D) 12.2 mm x



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1098509

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle – Photoelectric retro-reflective sensor

Functional principle detail – Without reflector minimum distance (autocollimation/coaxial optics)

Sensing range max. – 0 m ... 12 m 1)

Sensing range – 0 m ... 8 m 1)

Polarisation filter – Yes

Normative reference – EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11

Laser class – 1 3)

Wave length – 650 nm

Adjustment – IO-Link, Single teach-in button

Required accessories – Auxiliary sensor (e.g. WL4SL-3P2232, 1061561), Smart-Sensor Y-junction SYL-8204-G0M11-X2 (6055012), 2 x connecting cable (e.g. YF8U14-C60VA3M8U14, 2096612), 2 x reflector (e.g. P250F, 5308843)

Mounting hole – M3

Supply voltage UB – 10 V DC ... 30 V DC 1)

Ripple – < 5 Vpp 2)

Current consumption – 30 mA 3)

Protection class – III

Housing – Rectangular

Design detail – Slim

Dimensions (W x H x D) – 12.2 mm x 41.8 mm x 17.3 mm

Connection – Male connector M8, 4-pin

Weight – 100 g

MTTFD – 562 years (EN ISO 13849-1) 1)

DCavg – 0 %

TM (mission time) – 10 years

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

ECOLAB certificate – ✔

Laser safety (IEC 60825-1) certificate – ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) – ✔

ECLASS 5.1.4 – 27270903

ECLASS 6.0 – 27270903

ECLASS 7.0 – 27270903

ECLASS 8.0 – 27270903

ECLASS 9.0 – 27270903

ECLASS 10.0 – 27270903

ECLASS 11.0 – 27270903

ECLASS 12.0 – 27270903
