SPARECRUX is NOT an authorized distributor for SICK SENSORS

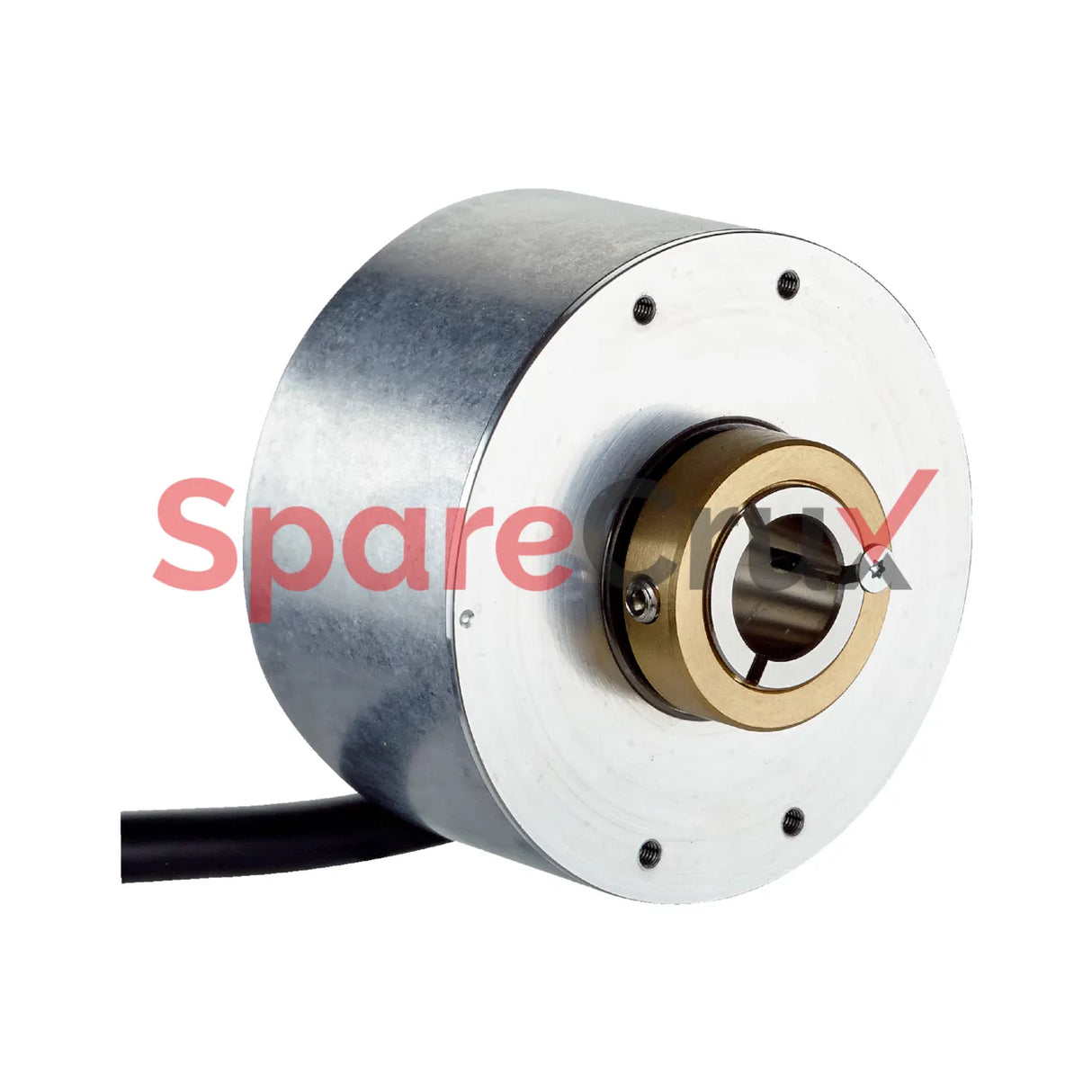

1090623 | SICK SENSORS | DBS60E-TGEKA1024 Incremental Encoders

₹ 25,102.85

₹ 21,273.60 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1090623

Original Equipment Manufacturer

SICK SENSORS

Description

Mechanical design Through hollow shaft
Shaft diameter 14 mm
Flange type / stator coupling Without stator coupling, flange with 4 x M2,5
Weight + 0.25 kg 1)
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum
Material, cable PVC
Start up torque + 0.5 Ncm (+20 °C)
Communication interface Incremental
Communication Interface detail HTL / Push pull
Number of signal channels 6-channel
Initialization time < 5 ms 1)
Output frequency + 300 kHz 2)
Load current ≤ 30 mA, per channel
Power consumption ≤ 1 W (without load)



SICK SENSORS 1090623 DBS60E-TGEKA1024 Incremental Encoders
SICK SENSORS

1090623 | SICK SENSORS | DBS60E-TGEKA1024 Incremental Encoders

₹ 21,273.60
Mechanical design Through hollow shaft
Shaft diameter 14 mm
Flange type / stator coupling Without stator coupling, flange with 4 x M2,5
Weight + 0.25 kg 1)
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum
Material, cable PVC
Start up torque + 0.5 Ncm (+20 °C)
Communication interface Incremental
Communication Interface detail HTL / Push pull
Number of signal channels 6-channel
Initialization time < 5 ms 1)
Output frequency + 300 kHz 2)
Load current ≤ 30 mA, per channel
Power consumption ≤ 1 W (without load)
