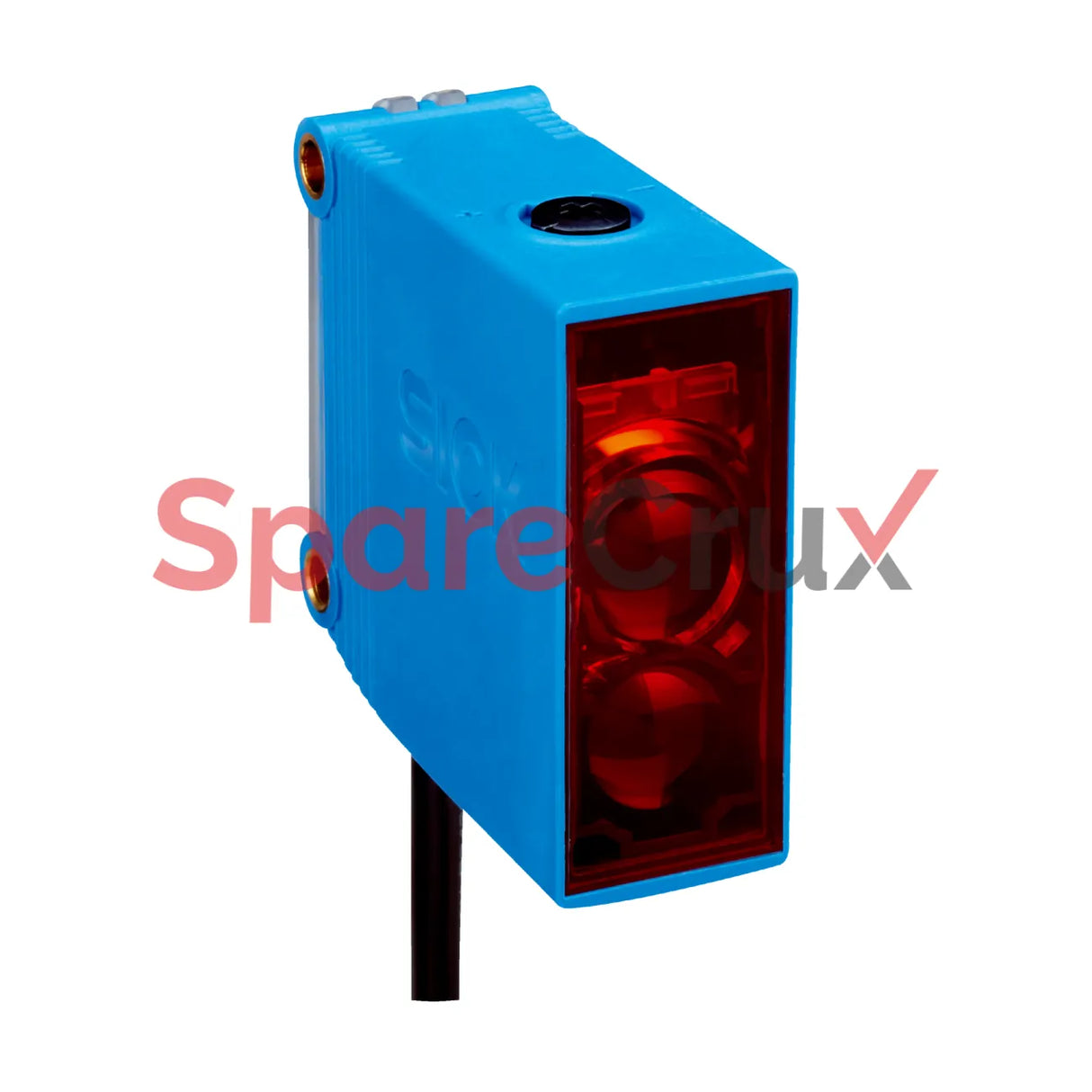

1084215 | SICK SENSORS | GTB10-R9822 Photoelectric Proximity Sensor

₹ 11,071.35

₹ 9,382.50 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional Principle Photoelectric proximity sensor
Functional Principle Detail Background suppression
Dimensions (W × H × D) 20 mm × 50 mm × 51.5 mm
Housing Design (Light Emission) Rectangular
Sensing Range Max. 20 mm ... 1,200 mm ¹
Type of Light Infrared light
Supply Voltage Ue 24 V AC/DC ... 240 V AC/DC ¹
Ripple < 10 %
Power Consumption ≤ 2.5 VA



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1084215

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle: Photoelectric proximity sensor

Functional principle detail: Background suppression

Dimensions (W x H x D): 20 mm x 50 mm x 51.5 mm

Housing design (light emission): Rectangular

Sensing range max.: 20 mm ... 1,200 mm 1)

Type of light: Infrared light

Light source: LED 2)

Light spot size (distance): Ø 22 mm (700 mm)

Wave length: 850 nm

Adjustment: Potentiometer, 5 turns

Supply voltage Ue: 24 V AC/DC ... 240 V AC/DC 1)

Ripple: < 10 %

Power consumption: ≤ 2.5 VA

Switching output: Relay, SPDT, electrically isolated 2)

Switching mode: Light/dark switching 2)

Response time: ≤ 10 ms

Switching frequency: 20 Hz 3)

Connection type: Cable, 5-wire, 5 m 4)

Cable material: Plastic, PVC

Conductor cross section: 0.25 mm²

Circuit protection: C 5)

Protection class: II 6)

Weight: 115 g

Interference emission: EN 61000-6-3 (2011-09) 7)

Housing material: Plastic, ABS/PMMA

Not applicable for this product

UK declaration of conformity: ✔

ACMA declaration of conformity: ✔

Moroccan declaration of conformity: ✔

China RoHS: ✔

CCC certificate: ✔

cULus certificate: ✔

Photobiological safety (DIN EN 62471) certificate: ✔

ECLASS 5.1.4: 27270902

ECLASS 6.0: 27270902

ECLASS 7.0: 27270902

ECLASS 8.0: 27270902

ECLASS 9.0: 27270902

ECLASS 10.0: 27270902

ECLASS 11.0: 27270902

ECLASS 12.0: 27270902

ECLASS 13.0: 27270902

ECLASS 14.0: 27270902

ECLASS 15.0: 27270902
