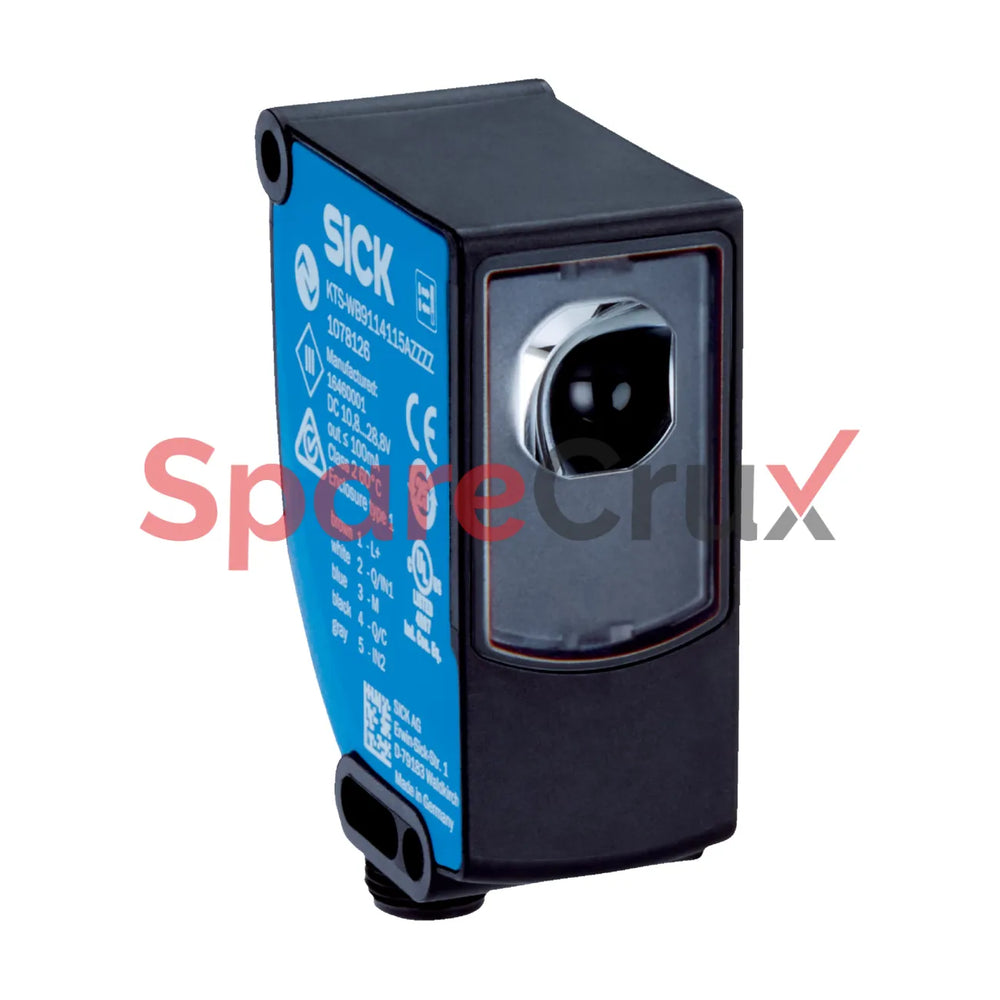

1078131 | SICK SENSORS | KTS-WB9114115AA90ZZZZ Contrast Sensor

₹ 49,805.44

₹ 42,208.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1078131

Original Equipment Manufacturer

SICK SENSORS

Description
Special applications Standard
Device type Automation function, AFC90 (time stamp)
Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm
Sensing distance ≤ 13 mm
Sensing distance tolerance ± 5 mm
Housing design Middle
Light source LED, RGB 1)
Wave length 470 nm, 525 nm, 625 nm
Light emission Long side of housing
Supply voltage 10.8 V DC ... 28.8 V DC 1)
Ripple ≤ 5 Vpp 2)
Current consumption < 100 mA 3)
Switching frequency

50 kHz 4)

 5)
Response time

10 µs 6)

 7)
Jitter 5 µs 8)
Switching output Push-pull: PNP/NPN
Switching output (voltage) Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V
