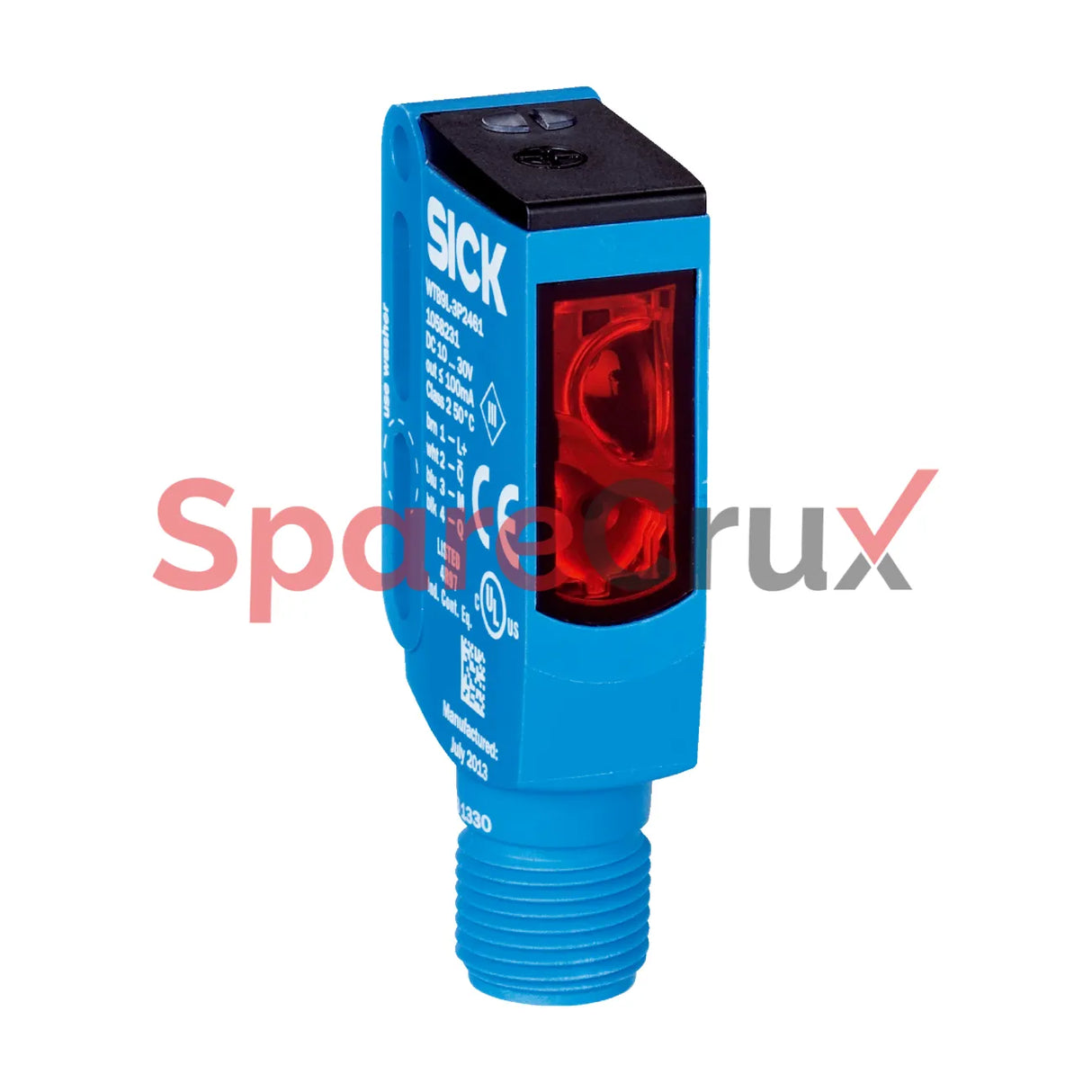

1058231 | SICK SENSORS | WTB9L-3P2461 Photoelectric Proximity Sensor

₹ 35,947.63

₹ 30,464.10 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional Principle Photoelectric proximity sensor
Functional Principle Detail Background suppression
Dimensions (W x H x D) 12.2 mm x 52.2 mm x 23.6 mm
Housing Design (Light Emission) Rectangular
Mounting Hole M3
Sensing Range Max. 25 mm ... 300 mm
Sensing Range 25 mm ... 300 mm
Type of Light Visible red light



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1058231

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle – Photoelectric proximity sensor

Functional principle detail – Background suppression

Dimensions (W x H x D) – 12.2 mm x 52.2 mm x 23.6 mm

Housing design (light emission) – Rectangular

Mounting hole – M3

Sensing range max. – 25 mm ... 300 mm 1)

Sensing range – 25 mm ... 300 mm 1)

Type of light – Visible red light

Light source – Laser 2)

Light spot size (distance) – Ø 1 mm (170 mm)

Wave length – 650 nm

Laser class – 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) 3)

Adjustment – Potentiometer, 5 turns

Special applications – Detecting small objects

Supply voltage UB – 10 V DC ... 30 V DC 1)

Ripple – < 5 Vpp 2)

Current consumption – 30 mA 3)

Switching output – PNP 4)

Output function – Complementary

Switching mode – Light/dark switching 4)

Output current Imax. – ≤ 100 mA

Response time – ≤ 0.5 ms 5)

Switching frequency – 1,000 Hz 6)

Connection type – Male connector M12, 4-pin

MTTFD – 424 years (EN ISO 13849-1) 1)

DCavg – 0 %

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

ECOLAB certificate – ✔

cULus certificate – ✔

Laser safety (IEC 60825-1) certificate – ✔

ECLASS 5.1.4 – 27270903

ECLASS 6.0 – 27270903

ECLASS 7.0 – 27270903

ECLASS 8.0 – 27270903

ECLASS 9.0 – 27270903

ECLASS 10.0 – 27270903

ECLASS 11.0 – 27270903

ECLASS 12.0 – 27270903

ECLASS 13.0 – 27270903

ECLASS 14.0 – 27270903
