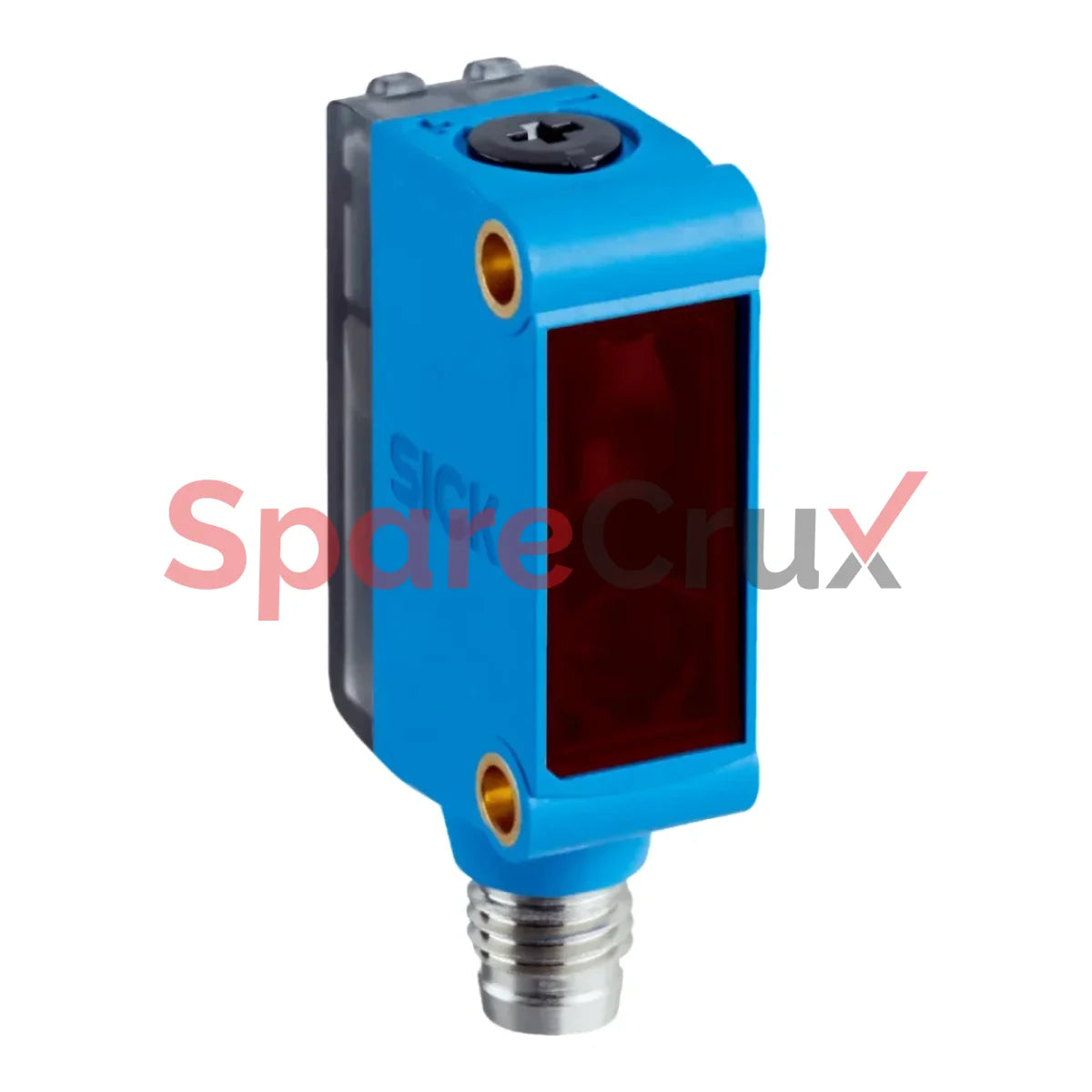

1052445 | SICK SENSORS | GTB6-N1212 Through Beam Photoelectric Sensor

Features

• Functional Principle: Photoelectric proximity sensor with background suppression
• Sensing Range: 5 mm to 250 mm
• Light Source: PinPoint LED, visible red light (650 nm)
• Light Spot Size: Ø 6 mm at 100 mm distance
• Adjustment: Mechanical spindle, 5 turns
• Switching Mode: Selectable via light/dark selector

Electrical Data

• Supply Voltage (UB): 10 V DC to 30 V DC
• Ripple: ±10%
• Current Consumption: 30 mA (without load)
• Protection Class: III
• Output Type: NPN
• Output Current (Imax): ≤100 mA
• Response Time: <625 µs
• Switching Frequency: 1,000 Hz
• Circuit Protection:
  • A: VS connections reverse-polarity protected
  • B: Inputs and output reverse-polarity protected
  • D: Outputs overcurrent and short-circuit protected

Mechanical Data

• Housing: Rectangular, plastic (ABS/PC)
• Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm
• Connection: Cable, 3-wire, 2 m length (PVC)
• Front Screen: Plastic (PMMA)
• Weight: 60 g

Ambient Data

• Enclosure Rating: IP67
• Operating Temperature: –25 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C
