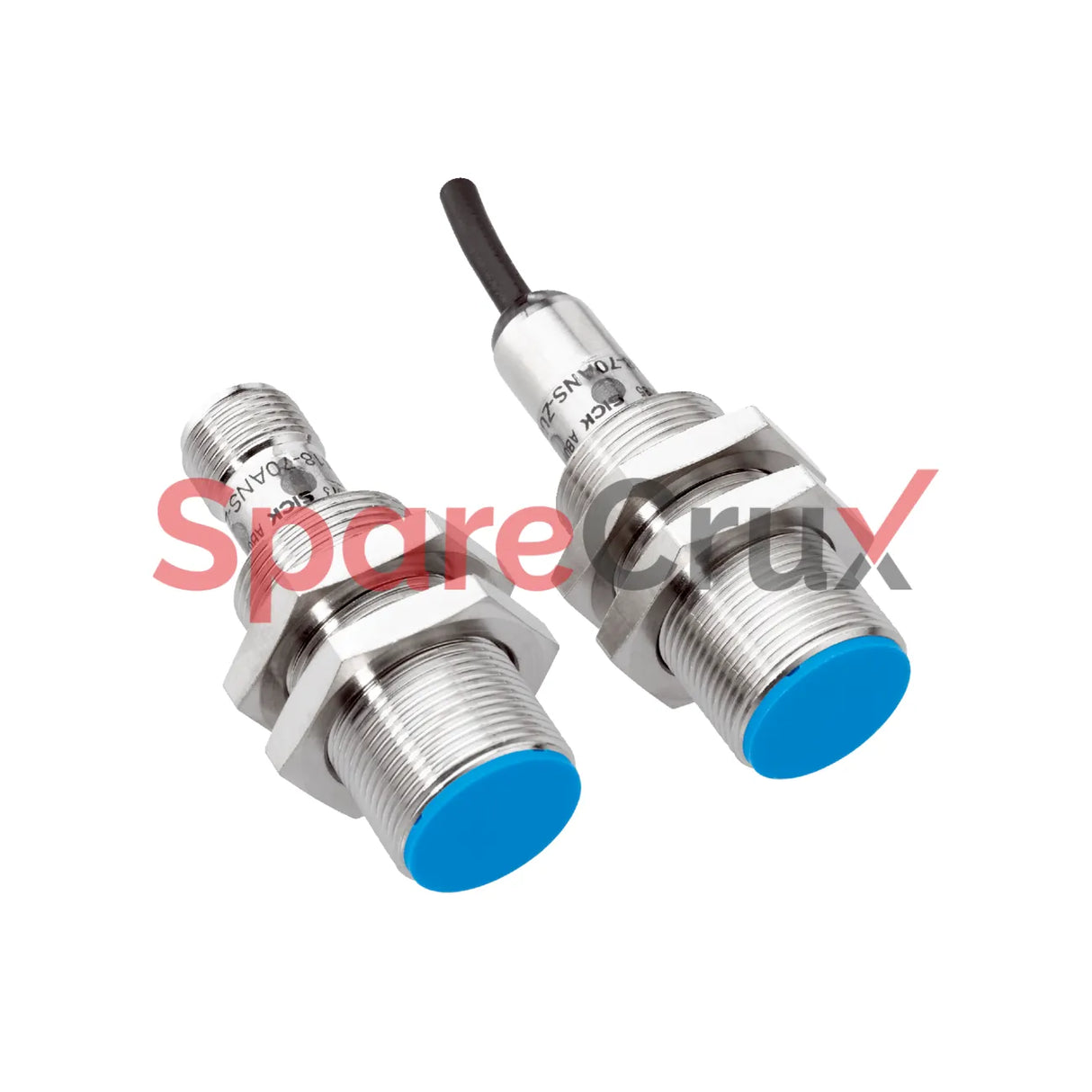

1040085 | SICK SENSORS | MM18-70ANS-ZUK Magnetic Sensors

₹ 3,762.78

₹ 3,188.80 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1040085

Original Equipment Manufacturer

SICK SENSORS

Description

Housing Metric
Housing Short-body
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 0 mm ... 70 mm 1)
Safe sensing range Sa 56.7 mm
Magnetic sensitivity 0.7 mT
Switching frequency 5,000 Hz
Connection type Cable, 3-wire, 2 m
Switching output NPN
Switching output detail NPN
Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 10 % 1)
Voltage drop ≤ 2 V 2)
Current consumption 10 mA 3)
Time delay before availability ≤ 20 ms
Hysteresis 1 % ... 10 %
Reproducibility ≤ 1 % 4)
Temperature drift (of Sr) ± 10 %
