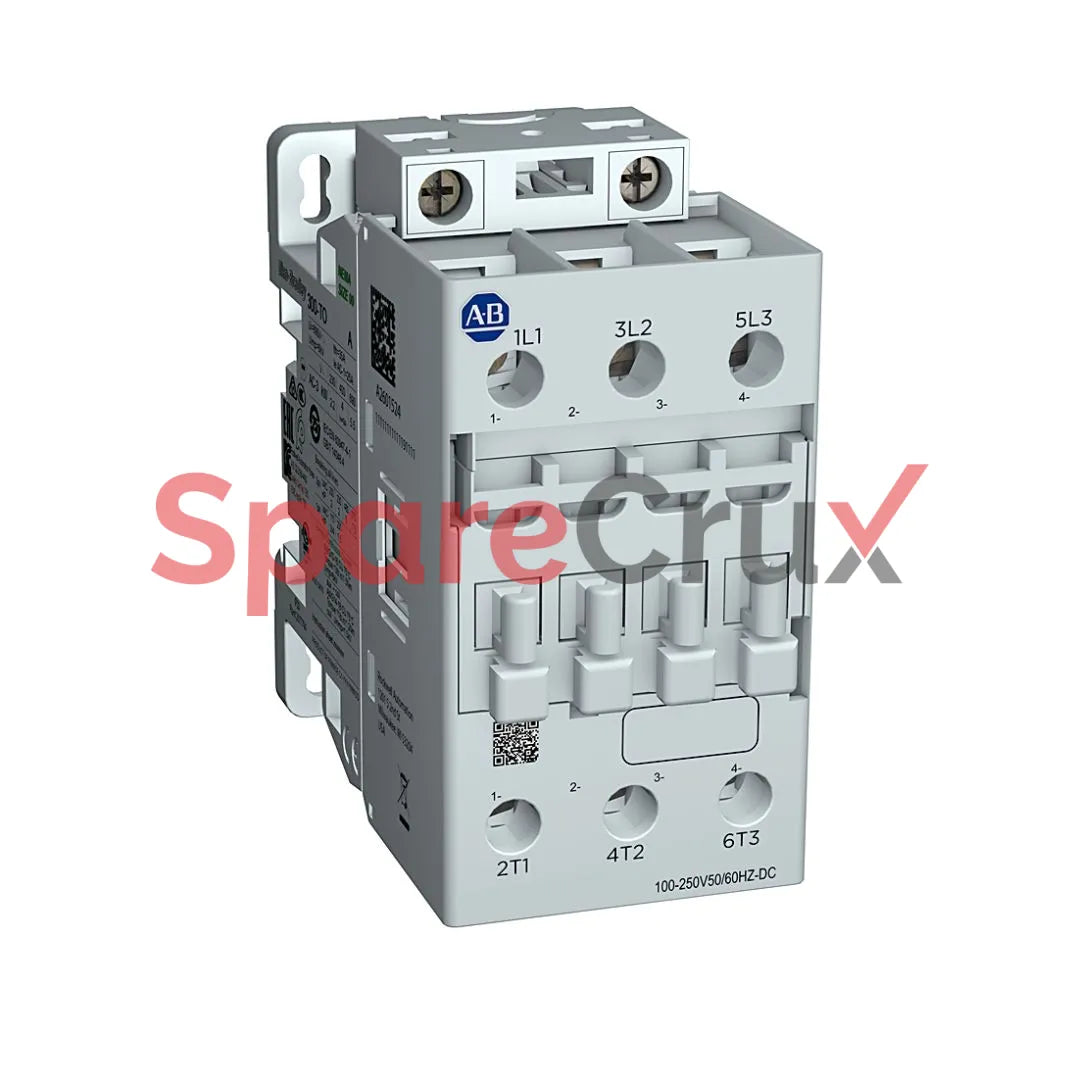

100-E38KD00 | ALLEN BRADLEY | 100-E MCS-E Contactor, 38A, AC3 duty, 100-250V AC 50/60Hz / 100-250V DC Electronic Coil
₹ 8,291.72
₹ 7,026.88 (Excl. Tax)
Couldn't load pickup availability
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
100-E38KD00
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Voltage type for actuating
AC/DC
Rated control supply voltage at AC 50 Hz
100 V
Rated control supply voltage at AC 60 Hz
100 V
Rated control supply voltage at DC
100 V
Type of electrical connection of main circuit
Screw connection
Rated impulse voltage withstand (Uimp)
6 kV
Operating time, closing delay
40 ms
Operating time, opening delay
11 ms
Optional overload relays
Electronic
Main current circuit resistance
0.21 mΩ
Rated isolation voltage (Ui)
690V per IEC
Function
Non-reversing contactor
Standard coil, pick-up
50VA/50 W @ 100-250V AC/DC
Standard coil, hold-in
2.2VA/2 W @ 100-250V AC/DC
General purpose current (enclosed)
24A @ 600V per UL/CSA
Power dissipation
3 W per pole at Ie, AC-1, 400V
Short time withstand (Icw)
3-pole: 600A @ 10s (40 °C)
FLA
50A @ 600V, 3-phase per UL/CSA HVAC applications
Rated operational current and power (enclosed)
7.5Hp @ 250V DC, with 3-poles in series per UL/CSA
LRA
300 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
Electromagnetic compatibility
IEC 60947-1 - Environment A and B (100-E09...E38 only.)
Total power dissipation
5 W at Ie, AC-3, 400V, AC/DC control (120-250V)
Operating limits, dropout
(≤0.60) x Us @ DC control
Rating for switching AC motors
3-poles: 30Hp @ 575V, AC-2, AC-3 (60 Hz)
Operating limits, pick-up
(0.85...1.1) x Us @ 50/60 Hz
MCCB current rating
Type 2 (per IEC 60947-4-1): 240A @ 400V, 70 kA available fault current
DIN fuses (gG) current rating
Type 2 (per IEC 60947-4-1): 80A @ 400V, 100 kA available fault current
Rated voltage (Ue)
24V @ 48V,110V @ 220V, 440V DC
Rated operational current and power
7.5Hp @ 200V AC, 500000 electrical ops, 3-phase per UL/CSA elevator duty
Coil voltage
100 to 250V AC/DC
Switching of lighting loads
Tungsten lA: 50A @ 600V, 3-phase (break all lines) per UL/CSA
UL class RK5 fuses rating
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 100A @ 600V, 5 kA available fault current
Rated operational current (Ie)
50A @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F)
UL class J and CSA HRCI-J fuses rating
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 100A @ 600V, 100 kA available fault current
UL inverse-time circuit breaker
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 125A @ 600V, 5 kA available fault current
Switching of power transformers
Apparent power: 83 kVA @ 600V @ 60Hz (n = 15)
Rated operational power (Pe)
60 kW @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F)
Switching of DC loads
3-poles in series: 50A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
