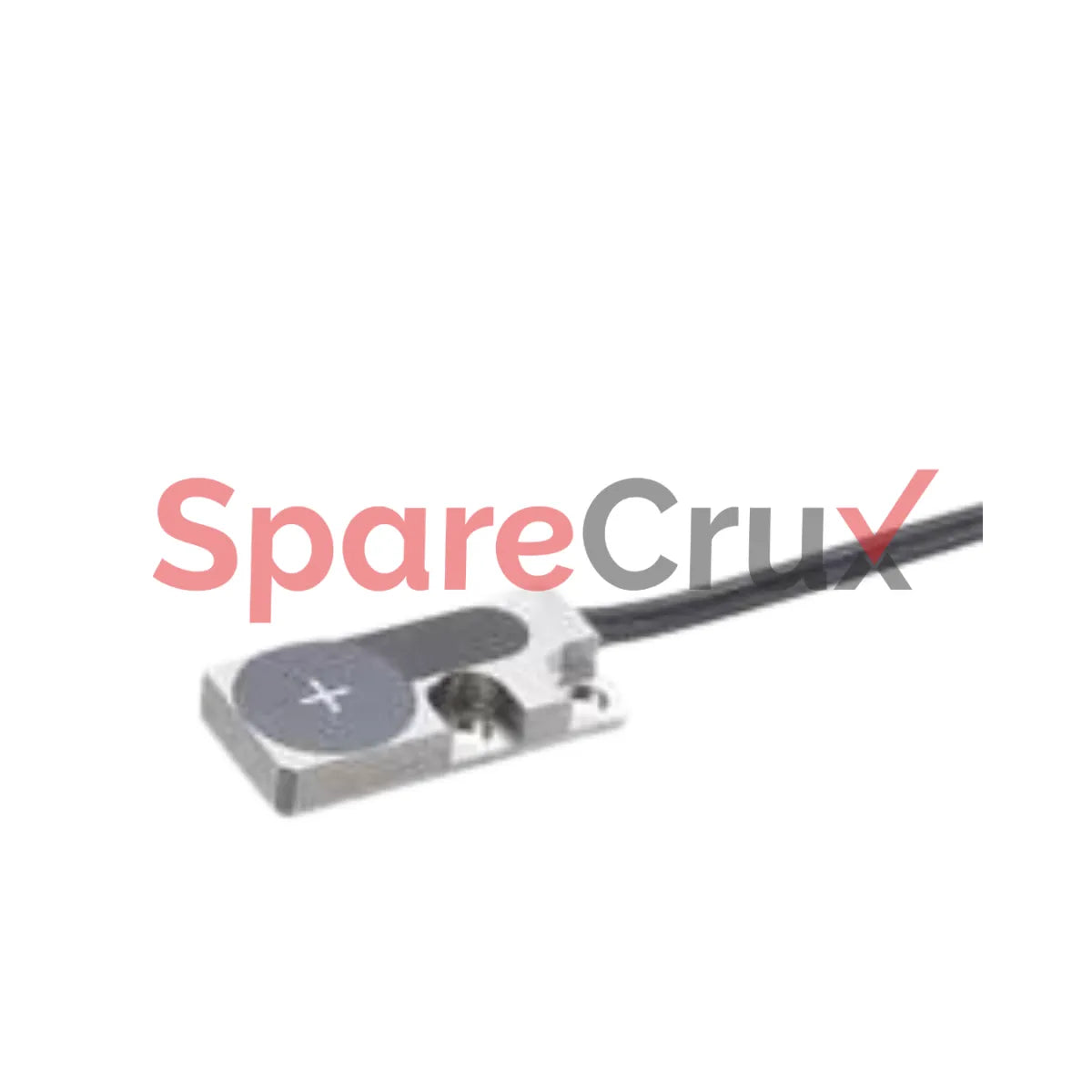

SH-614A | KEYENCE | Sensor Head

₹ 16,755.02

₹ 14,199.17 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

SH-614A

Original Equipment Manufacturer

KEYENCE

説明
Feature Specification
Model SH-614A
Type High-accuracy Positioning Sensor (Thin Type)
Shape/Size 14 × 30 × 4.8 mm (0.55" × 1.18" × 0.19")
Stable Detecting Range 0 to 5 mm (0.20")
Maximum Detecting Distance 10 mm (0.39")
Standard Target 15 × 15 mm (0.59" × 0.59") (Iron, t=1 mm)
Repeatability 0.002 mm (0.00008")
Hysteresis 0.015 mm (0.0006")
Temperature Characteristics 0.04%/°C
Enclosure Rating IP67
Detectable Object Ferrous metals (refer to datasheet for non-ferrous metals)
Shipping Weight Approximately 1.5 kg (3.3 lbs)
Mounting Type Standard Shielded Thin
Cable Length Options 10 m (SH-614A(10M))
Country of Origin Japan
