SPARECRUX is NOT an authorized distributor for FESTO

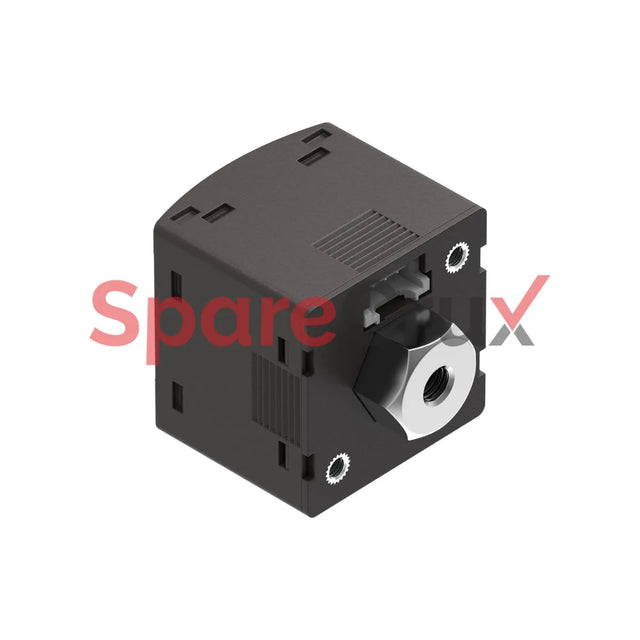

8035539 | FESTO | Pressure Sensor SPAN-P10R-M5F-PNLK-PNVBA-L1

₹ 5,408.84

₹ 4,583.76 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

8035539

Original Equipment Manufacturer

FESTO

説明
Feature Details
Symbol 00995685
Approvals RCM trademark, c UL us listed (OL), CE mark, UKCA
Certificate authority UL E322346
Measurement variable Relative pressure
Measurement method Piezoresistive pressure sensor
Pressure range 0 to 1 MPa (0 to 10 bar / 0 to 145 psi)
Max overload pressure 1.5 MPa (15 bar / 217.5 psi)
Operating medium Compressed air (ISO 8573-1:2010 [7:4:4]), inert gases
Lubricated operation Possible
Media temperature 0 °C to 50 °C
Ambient temperature 0 °C to 50 °C
Accuracy ±1.5 % FS
Repetition accuracy ±0.3 % FS
Temperature coefficient ±0.05 % FS/K
Switching output 2 x PNP or 2 x NPN, switchable
Switching function Window comparator, Threshold value comparator, Auto difference monitoring
Switching element function N/C or N/O contact, switchable
Max output current 100 mA
Analogue outputs 0 - 10 V, 4 - 20 mA, 1 - 5 V
Max load resistance (current) 500 Ohm
Min load resistance (voltage) 20 kOhm
Short circuit current rating Yes
Communication protocol IO-Link® Device V1.1
