SPARECRUX is NOT an authorized distributor for PEPPERL+FUCHS

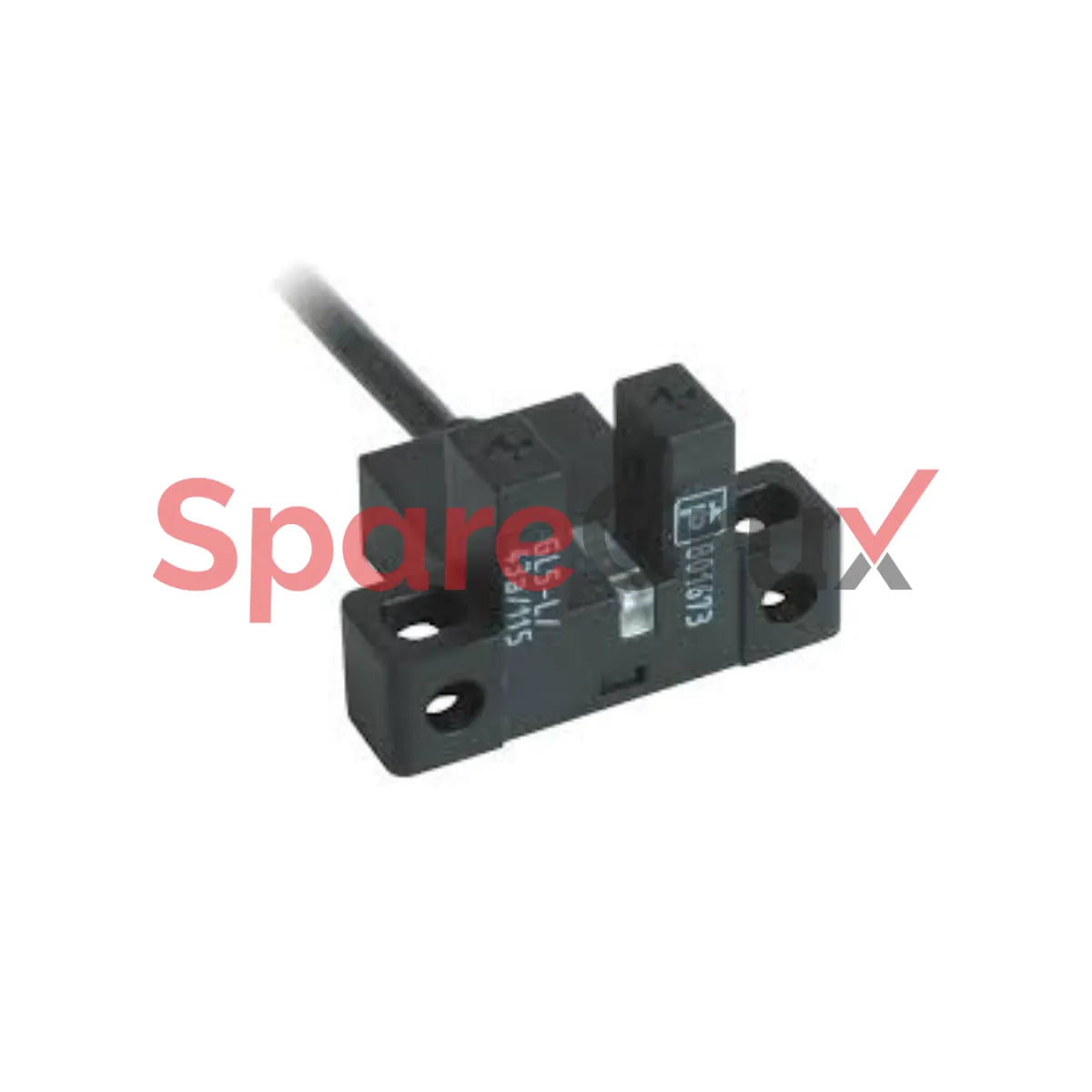

801673 | PEPPERL+FUCHS | Photoelectric Slot Sensor

₹ 3,453.86

₹ 2,927.00 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

801673

Original Equipment Manufacturer

PEPPERL+FUCHS

説明

Parameter Specification
Light source IRED
Light type Infrared, continuous light, 940 nm
Target size 0.8 x 1.8 mm
Slot width 5 mm
Slot depth 8.5 mm
Ambient light limit 1000 Lux
Switching type Light/dark on
Signal output 2 PNP complementary, overvoltage protected
Switching voltage max. 30 V DC
Switching current max. 50 mA, resistive load
Voltage drop Ud max. 0.2 V at 10 mA, max. 0.6 V at 50 mA
Switching frequency f max. 5 kHz
Response time 40 µs Light beam not interrupted, 80 µs Light beam interrupted
Degree of protection IP50
Connection 2 m cable, 4 x 0.08 mm², PVC
Material Housing: PBT
Mass 25 g
Tightening torque, fastening screws 0.6 Nm
Dimensions Height: 26 mm, Width: 18.5 mm, Length: 15.5 mm
Cable length 2 m
