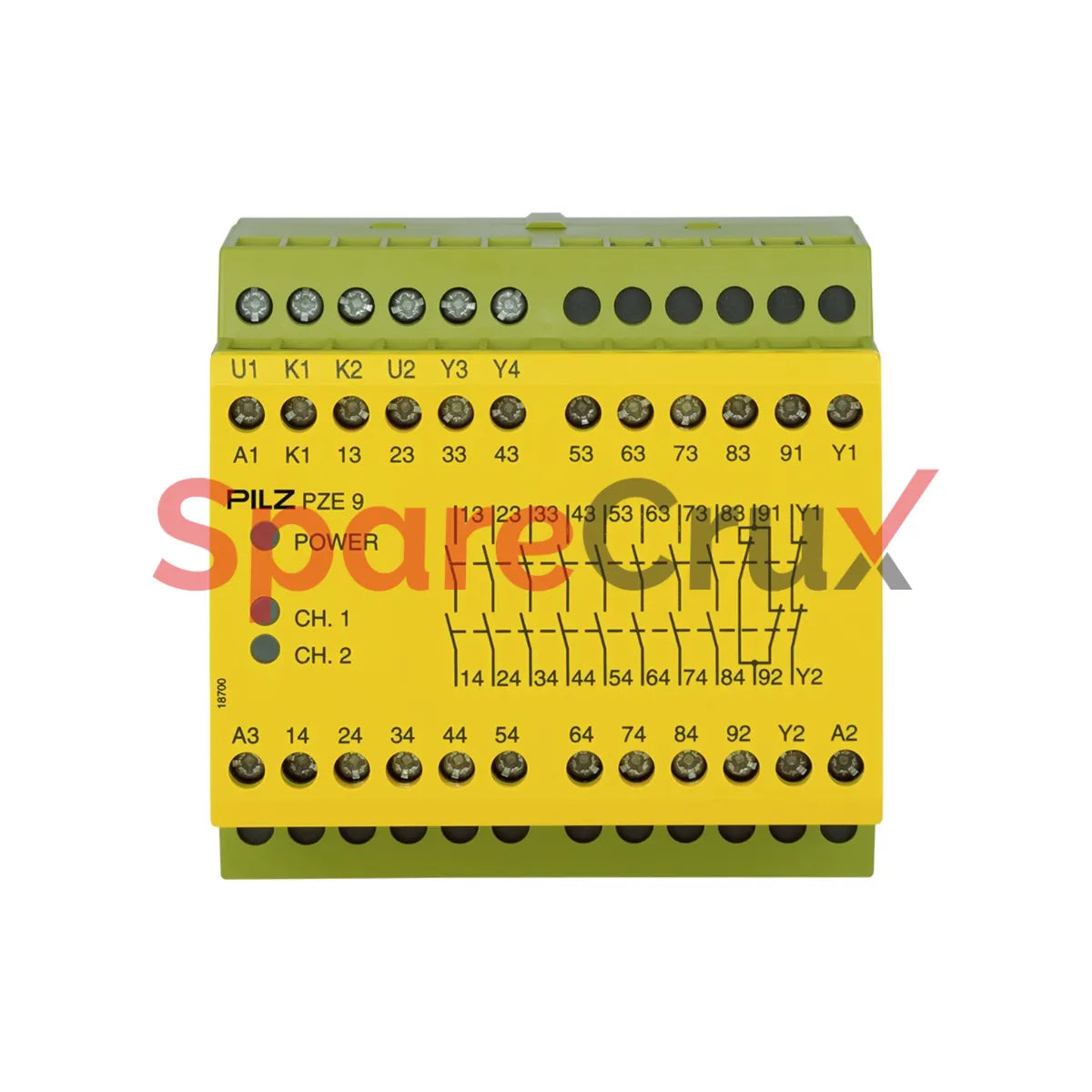

774150 | PILZ | PZE 9 24VDC 8n/o 1n/c

₹ 53,690.00

₹ 45,500.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

774150

Original Equipment Manufacturer

PILZ

説明
Feature Specification
Model Name PZE 9 24VDC 8n/o 1n/c
Product Type Contact Expansion Module (Safety Relay)
Function Increases number of contacts for a base safety unit (e.g., PNOZ X)
Safety Contacts (N/O) 8 (Instantaneous Normally Open)
Auxiliary Contacts (N/C) 1 (Instantaneous Normally Closed)
Supply Voltage (UB) 24V DC
Inputs 2 (Supports 1/2-channel wiring, with/without short detection)
Max. Current (AC1) 8A at 240V AC
Max. Current (DC1) 8A at 24V DC
Terminal Type Screw Terminal (Fixed)
Dimensions (W x H x D) 90 mm x 87 mm x 121 mm
Safety Level Up to PL e (EN ISO 13849-1) / SIL CL 3 (IEC 62061)
