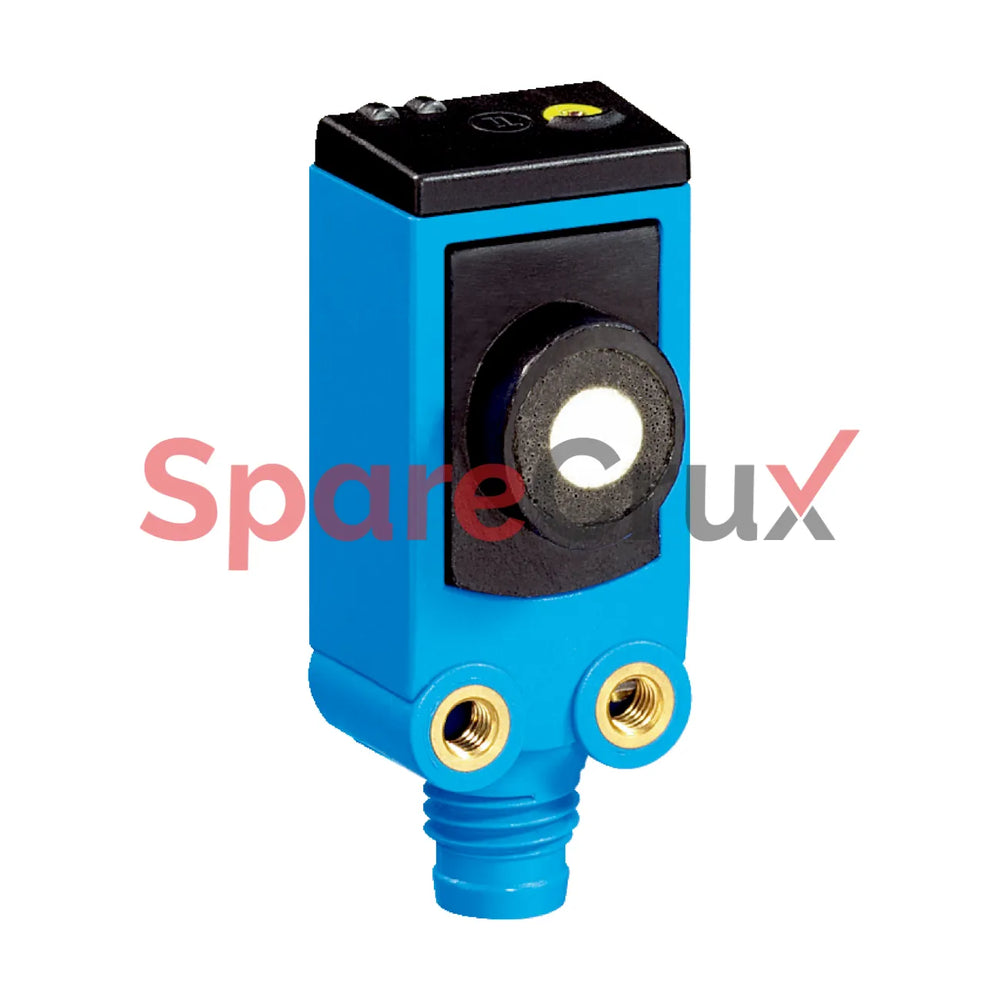

6068454 | SICK SENSORS | UC4-1334B Ultrasonic Distance Sensor

₹ 32,929.43

₹ 27,906.30 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Operating range, limiting range 13 mm ... 150 mm, 250 mm 1)
Target Natural objects
Resolution ≥ 0.1 mm
Repeatability ± 0.15 % 2)
Measurement accuracy ± 1 % 3)
Temperature compensation ✔
Response time 24 ms
Switching frequency 30 Hz
Output time 8 ms
Ultrasonic frequency (typical) 380 kHz
Supply voltage UB DC 15 V ... 30 V 1)
Power consumption ≤ 0.75 W 2)
Initialization time < 300 ms
Indication 2 x LED
Enclosure rating IP65 / IP67



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6068454

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Operating range, limiting range - 13 mm ... 150 mm, 250 mm ¹)

Target - Natural objects

Resolution - ≥ 0.1 mm

Repeatability - ± 0.15 % ²)

Measurement accuracy - ± 1 % ³)

Temperature compensation - ✔

Response time - 24 ms

Switching frequency - 30 Hz

Output time - 8 ms

Ultrasonic frequency (typical) - 380 kHz

Supply voltage UB - DC 15 V ... 30 V ¹)

Power consumption - ≤ 0.75 W ²)

Initialization time - < 300 ms

Indication - 2 × LED

Enclosure rating - IP65 / IP67

Dimensions (W × H × D) - 16 mm × 40.1 mm × 16.7 mm

Design - Rectangular

Sending axis - Straight

Housing material - Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin)

Weight - 10 g

Connection type - Male connector, M8, 3-pin

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

China Compulsory Product Certification (CCC) exempt - ✔

ECLASS 5.1.4 - 27270804

ECLASS 6.0 - 27270804

ECLASS 7.0 - 27270804

ECLASS 8.0 - 27270804

ECLASS 9.0 - 27270804

ECLASS 10.0 - 27270804

ECLASS 11.0 - 27270804
