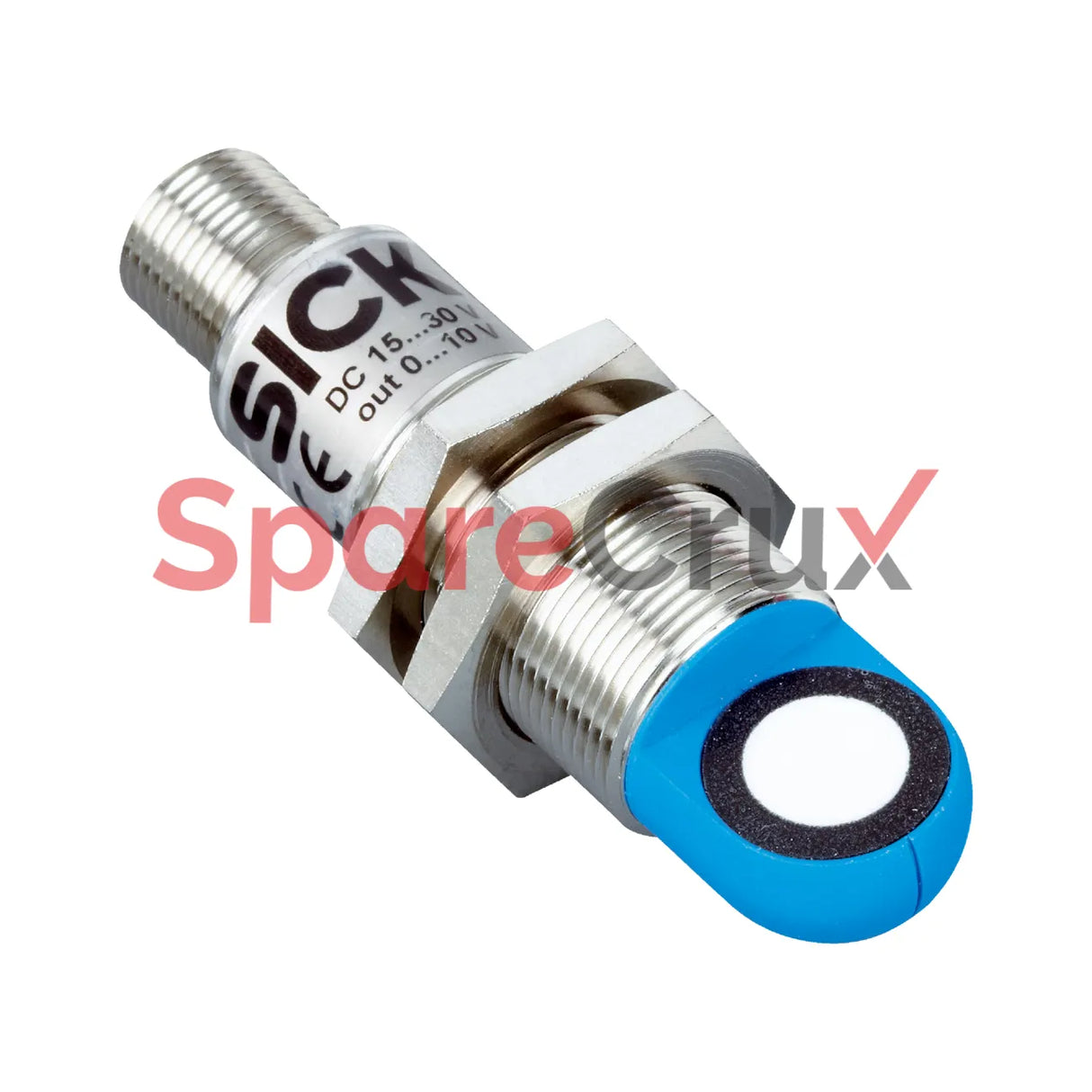

6068440 | SICK SENSORS | UM18-21712E212 Ultrasonic Distance Sensor

₹ 44,397.97

₹ 37,625.40 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Operating range, limiting range 20 mm ... 150 mm, 250 mm
Target Natural objects
Resolution ≥ 0.069 mm
Repeatability ± 0.15 % 1)
Measurement accuracy ± 1 % 2) 3)
Temperature compensation ✔
Response time 32 ms
Switching frequency 25 Hz
Output time 8 ms
Supply voltage UB DC 10 V ... 30 V 1)
Power consumption ≤ 1.2 W 2)
Initialization time < 300 ms
Display 2 x LED
Enclosure rating IP65 / IP67



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6068440

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Operating range, limiting range - 20 mm ... 150 mm, 250 mm

Resolution - ≥ 0.069 mm

Repeatability - ± 0.15 % 1)

Measurement accuracy - ± 1 % 2) 3)

Temperature compensation - ✔

Response time - 32 ms

Switching frequency - 25 Hz

Output time - 8 ms

Ultrasonic frequency (typical) - 380 kHz

Supply voltage UB - DC 10 V ... 30 V 1)

Power consumption - ≤ 1.2 W 2)

Initialization time - < 300 ms

Display - 2 x LED

Enclosure rating - IP65 / IP67

Protection class - III

Dimensions (W x H x D) - 18 mm x 18 mm x 68.7 mm

Design - Cylindrical

Sending axis - Angled

Housing material - Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin)

Weight - 30 g

Thread size - M18 x 1

Connection type - Male connector, M12, 5-pin

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

China Compulsory Product Certification (CCC) exempt - ✔

cULus certificate - ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) - ✔

ECLASS 5.1.4 - 27270804

ECLASS 6.0 - 27270804

ECLASS 7.0 - 27270804

ECLASS 8.0 - 27270804

ECLASS 9.0 - 27270804

ECLASS 10.0 - 27270804

ECLASS 11.0 - 27270804
