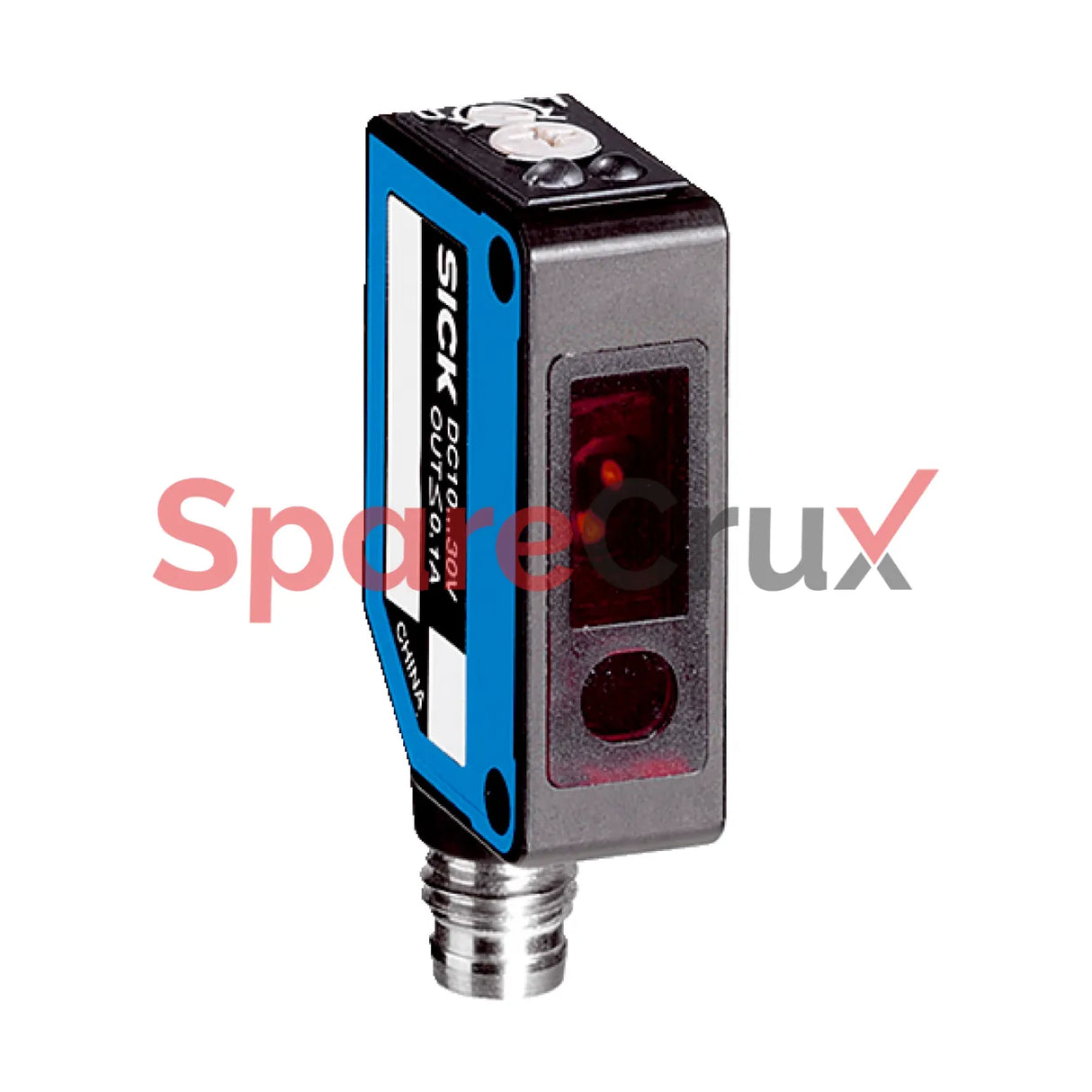

6033181 | SICK SENSORS | WL8-N2231 Photoelectric Retro-Reflective Sensor

₹ 15,696.36

₹ 13,302.00 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional Principle Photoelectric retro-reflective sensor
Functional Principle Detail Without reflector minimum distance (autocollimation/coaxial optics)
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing Design (Light Emission) Rectangular
Sensing Range Max. 0 m ... 4 m
Sensing Range 0 m ... 3 m
Type of Light Visible red light
Supply Voltage UB 10 V DC ... 30 V DC
Ripple ± 10 %
Current Consumption 30 mA
Switching Output NPN
Switching Mode Light/dark switching



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6033181

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle – Photoelectric retro-reflective sensor

Functional principle detail – Without reflector minimum distance (autocollimation/coaxial optics)

Dimensions (W x H x D) – 11 mm x 31 mm x 20 mm

Housing design (light emission) – Rectangular

Sensing range max. – 0 m ... 4 m 1)

Sensing range – 0 ... 3 m 1)

Type of light – Visible red light

Light source – LED 2)

Light spot size (distance) – Ø 30 mm (1 m)

Wave length – 650 nm

Adjustment – Potentiometer, 270°

Special applications – Detection of objects moving at high speeds

Supply voltage UB – 10 V DC ... 30 V DC 1)

Ripple – ± 10 % 2)

Current consumption – 30 mA 3)

Switching output – NPN

Switching mode – Light/dark switching

Switching mode selector – Selectable via light/dark rotary switch

Signal voltage NPN HIGH/LOW – Approx. VS / < 1.8 V

Output current Imax. – ≤ 100 mA

Response time – ≤ 0.25 ms 4)

Switching frequency – 2,000 Hz 5)

Connection type – Male connector M8, 4-pin

MTTFD – 1,018.3 years

DCavg – 0 %

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

Photobiological safety (DIN EN 62471) certificate – ✔

ECLASS 5.1.4 – 27270903

ECLASS 6.0 – 27270903

ECLASS 7.0 – 27270903

ECLASS 8.0 – 27270903

ECLASS 9.0 – 27270903

ECLASS 10.0 – 27270903

ECLASS 11.0 – 27270903

ECLASS 12.0 – 27270903

ECLASS 13.0 – 27270903

ECLASS 14.0 – 27270903

ECLASS 15.0 – 27270903

ETIM 6.0 – EC002719
