SPARECRUX is NOT an authorized distributor for SICK SENSORS

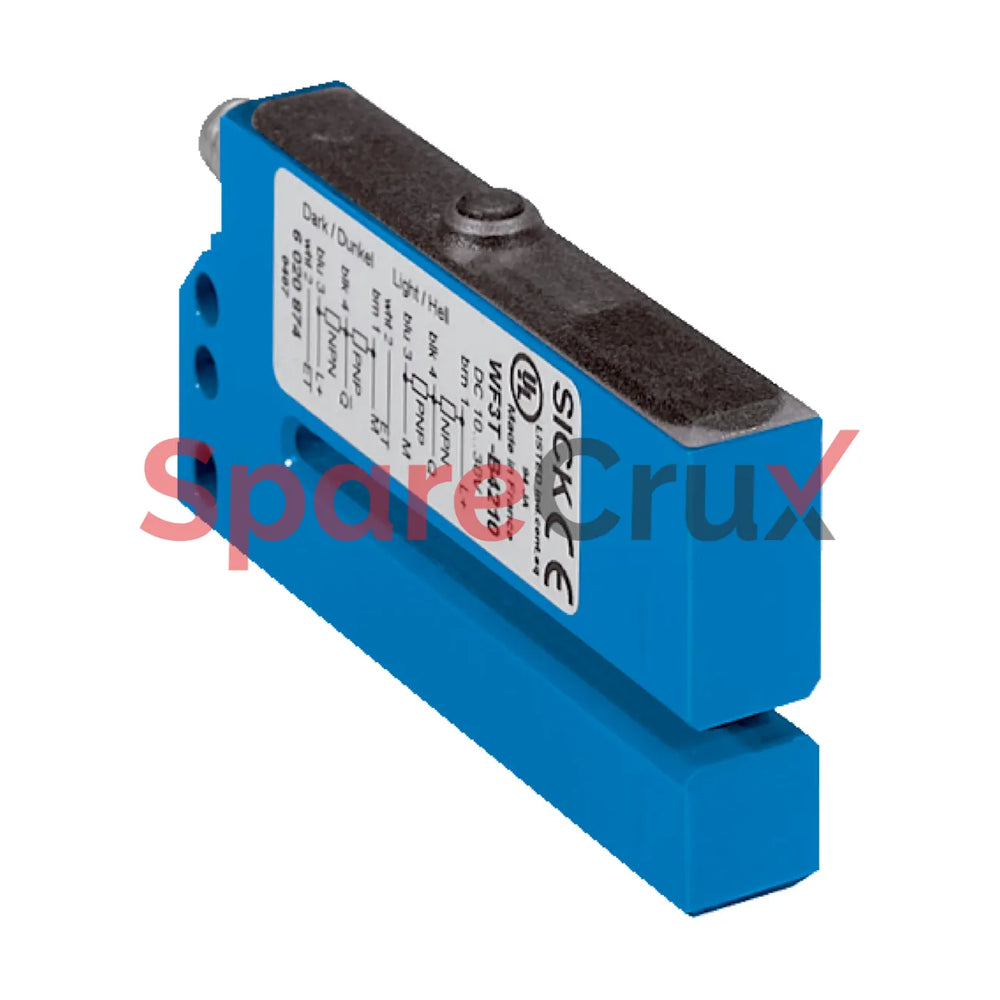

6020874 | SICK SENSORS | WF3T-B4210 Fork Sensor

₹ 23,695.34

₹ 20,080.80 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6020874

Original Equipment Manufacturer

SICK SENSORS

説明
Functional principle Optical detection principle
Dimensions (W x H x D) 12 mm x 37.5 mm x 80 mm
Fork width 3 mm
Fork depth 60 mm
Label detection ✔
Light source LED, infrared, Infrared light
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 40 mA 1)
Switching frequency 10 kHz
Response time ≤ 50 µs 2)
Switching output PNP/NPN
Switching output (voltage)

PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V

NPN: HIGH = approx. UV / LOW ≤ 2 V
Switching mode Light/dark switching
Output current Imax. 100 mA
Teach-in ✔
Connection type Male connector M8, 4-pin



SICK SENSORS 6020874 WF3T-B4210 Fork Sensor
SICK SENSORS

6020874 | SICK SENSORS | WF3T-B4210 Fork Sensor

₹ 20,080.80
Functional principle Optical detection principle
Dimensions (W x H x D) 12 mm x 37.5 mm x 80 mm
Fork width 3 mm
Fork depth 60 mm
Label detection ✔
Light source LED, infrared, Infrared light
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 40 mA 1)
Switching frequency 10 kHz
Response time ≤ 50 µs 2)
Switching output PNP/NPN
Switching output (voltage)

PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V

NPN: HIGH = approx. UV / LOW ≤ 2 V
Switching mode Light/dark switching
Output current Imax. 100 mA
Teach-in ✔
Connection type Male connector M8, 4-pin
