SPARECRUX is NOT an authorized distributor for FESTO

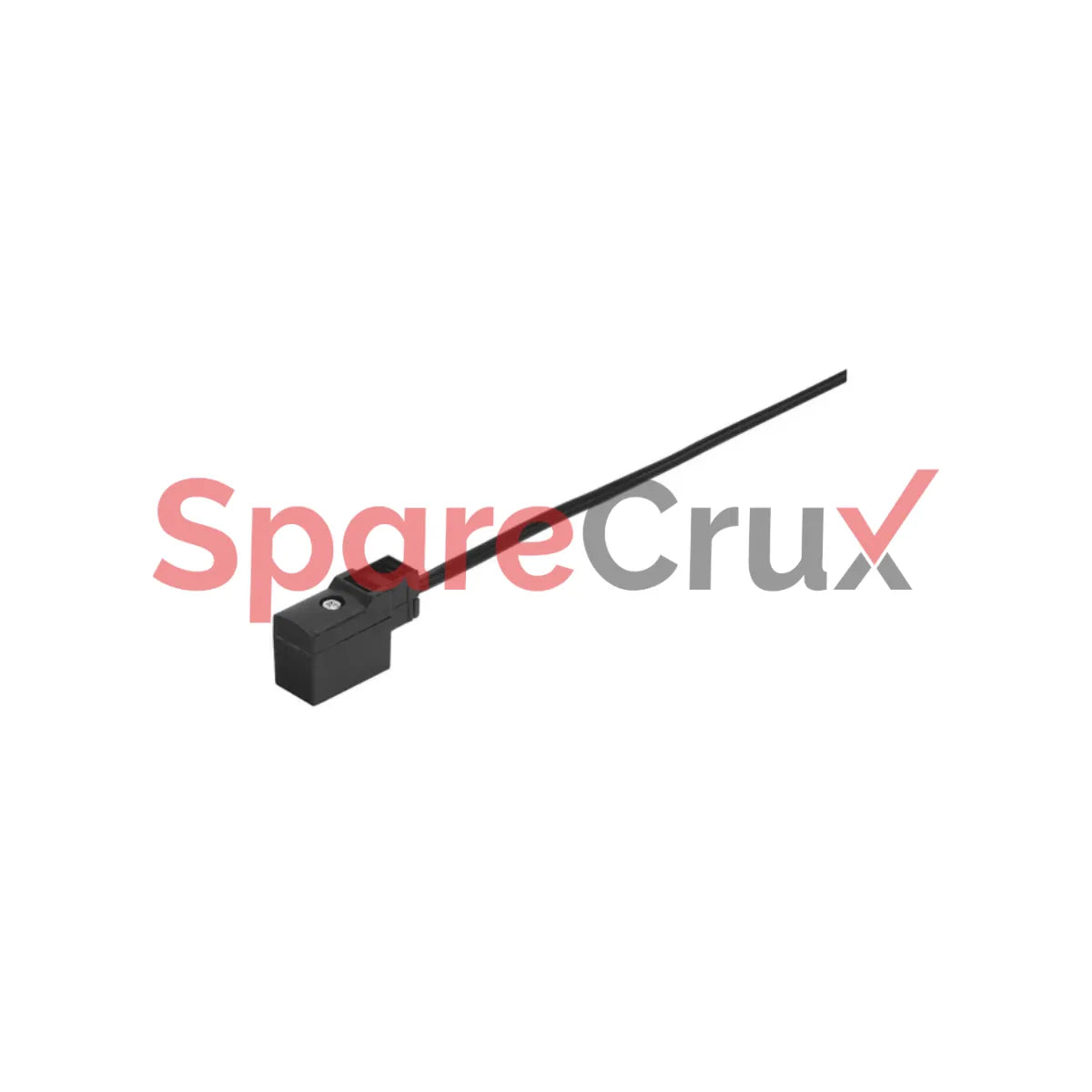

34997 | FESTO | Connecting Cable KMYZ-2-24-2,5-LED

₹ 3,090.31

₹ 2,618.91 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

34997

Original Equipment Manufacturer

FESTO

説明

Parameter Specification
Maritime classification See certificate
Switching position indicator LED
Type of mounting On solenoid valve via self-tapping screw
Mounting position Optional
Product weight 50 g
Electrical connection 2-pin / 2-wire
Angled socket / cable
Square design / open end
Nominal operating voltage (DC) 24 V
Current rating at 40°C 1 A
Protective conductor connection Not available
Cable length 2.5 m
Cable characteristic Standard
Cable diameter 3.4 mm
Cable structure 2 x 0.25 mm²
Degree of protection IP65
Ambient temperature -10 °C ... 50 °C
CE mark In accordance with EU RoHS Directive
UKCA marking To UK RoHS instructions
LABS (PWIS) conformity VDMA24364-B2-L
Note on materials RoHS-compliant
Corrosion resistance class CRC 2 - Moderate corrosion stress
Material cable sheath TPE-U (PUR)
Material housing PA
Material electrical contact Bronze
