30 Days Return Policy. Learn more

Click here to contact us.

SPARECRUX is NOT an authorized distributor for LAPP GROUP

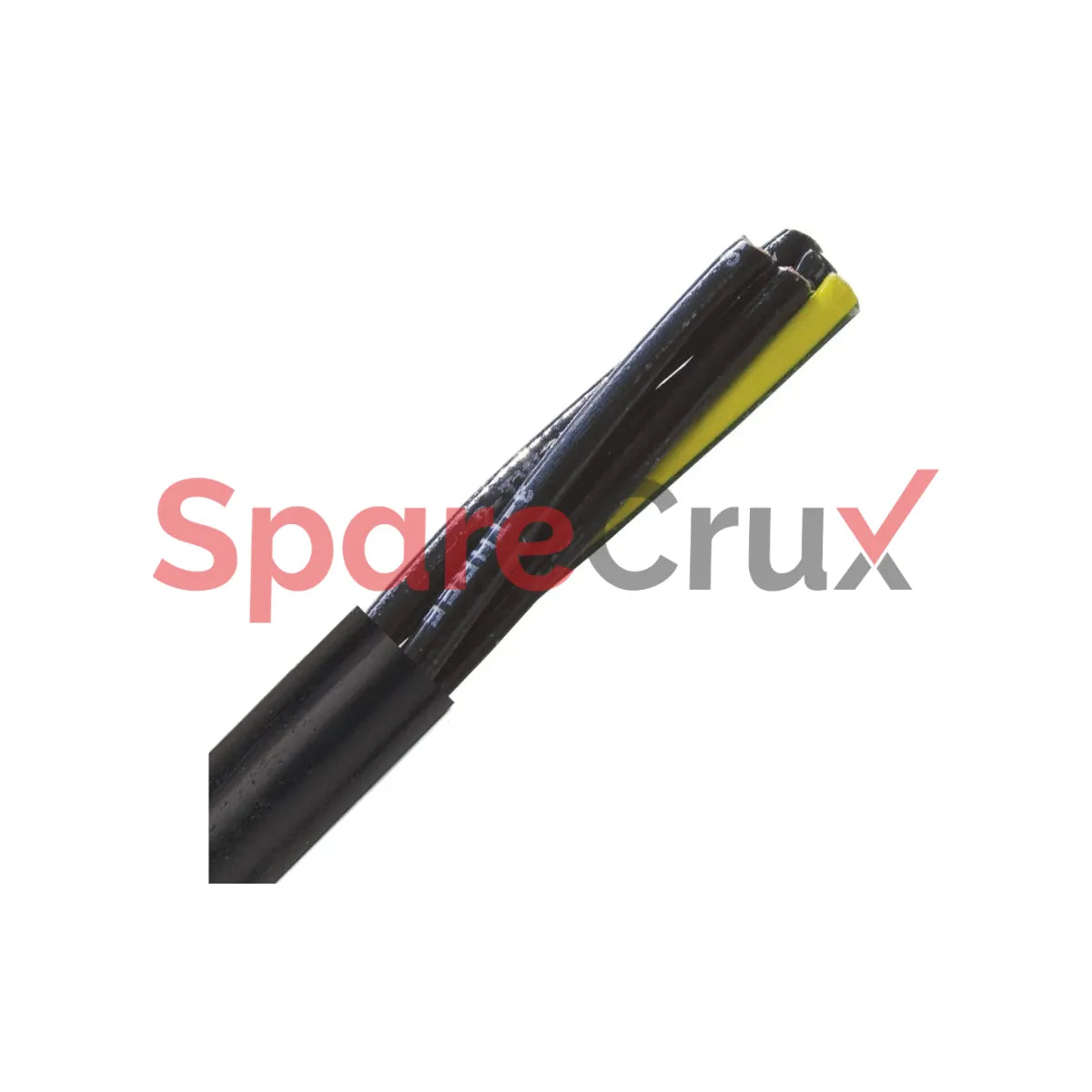

221618 | LAPP GROUP | Power And Control Cable 18g1

₹ 1,765.58

₹ 1,496.25 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

221618

Original Equipment Manufacturer

LAPP GROUP

説明

Brand ÖLFLEX®
Product Type Power and control cable
Weight 431 kg/km
Copper Index 259.000 kg/km
Copper Index (lb) 1742.000 lb/10,000 ft
Test Voltage 2 kV
Current Rating According To IEC 60364-5-52
Max. Conductor Resistance at 20°C 13.3 Ω/km
Cable Dimension 18G1.5
Conductor Cross-Section (mm²) 1.5 mm²
Nominal Cross Section Conductor (AWG) 16 AWG
Conductor Material Bare Copper
Conductor Design IEC 60228 class 5: fine-wire
Nominal Core Diameter 2.61 mm
Min. Outer Diameter 15.84 mm
Nominal Outer Diameter 16.6 mm
Max. Outer Diameter 17.36 mm
Shape of Cable Round
Core Insulation Base Material Polyvinylchloride (PVC)
Insulation Skin Nylon
Base Material of Outer Sheath Thermoplastic
Cable Insulation Colour Black
LAPP GROUP

221618 | LAPP GROUP | Power And Control Cable 18g1

₹ 1,496.25
Brand ÖLFLEX®
Product Type Power and control cable
Weight 431 kg/km
Copper Index 259.000 kg/km
Copper Index (lb) 1742.000 lb/10,000 ft
Test Voltage 2 kV
Current Rating According To IEC 60364-5-52
Max. Conductor Resistance at 20°C 13.3 Ω/km
Cable Dimension 18G1.5
Conductor Cross-Section (mm²) 1.5 mm²
Nominal Cross Section Conductor (AWG) 16 AWG
Conductor Material Bare Copper
Conductor Design IEC 60228 class 5: fine-wire
Nominal Core Diameter 2.61 mm
Min. Outer Diameter 15.84 mm
Nominal Outer Diameter 16.6 mm
Max. Outer Diameter 17.36 mm
Shape of Cable Round
Core Insulation Base Material Polyvinylchloride (PVC)
Insulation Skin Nylon
Base Material of Outer Sheath Thermoplastic
Cable Insulation Colour Black
