SPARECRUX is NOT an authorized distributor for ALLEN BRADLEY

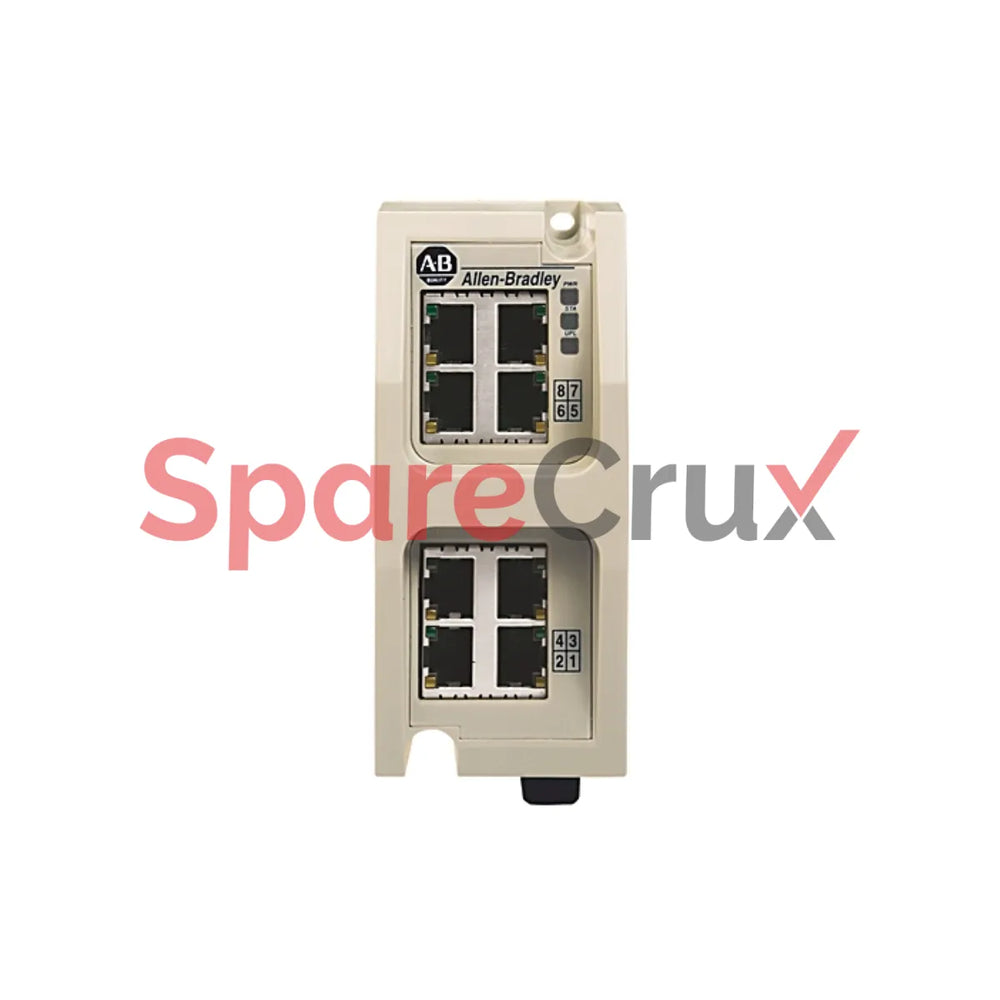

1783-EMS08T | ALLEN BRADELY | 8 port Managed Switch

₹ 224,200.00

₹ 190,000.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1783-EMS08T

Original Equipment Manufacturer

ALLEN BRADLEY

説明
Specification Value / Detail
Product Name / Series Stratix 6000 8-port Managed Switch (1783-EMS08T) :contentReference[oaicite:0]{index=0}
Lifecycle Status Discontinued (as of April 09, 2019) :contentReference[oaicite:1]{index=1}
Replacement Product 1783-LMS8 :contentReference[oaicite:2]{index=2}
Power Requirements 250 mA @ 24 V DC (12 … 48 V DC), Class 2 / SELV :contentReference[oaicite:3]{index=3}
Power Dissipation 5.8 W :contentReference[oaicite:4]{index=4}
Thermal Dissipation 24.6 BTU/hr @ 60 °C :contentReference[oaicite:5]{index=5}
Network Ports (Copper) 8 × RJ-45 10/100 Mbps (full/half duplex) :contentReference[oaicite:6]{index=6}
Optional Fiber Port / SFP 1 SFP slot (1 Gbps) :contentReference[oaicite:7]{index=7}
Supported Protocols TCP/IP, EtherNet/IP, Telnet, HTTP, DHCP, BOOTP, FTP, IGMP, SMTP :contentReference[oaicite:8]{index=8}
Switch Features VLAN, IGMP snooping, IGMP query (V1/V2), DHCP server, BOOTP, QoS, Port mirroring :contentReference[oaicite:9]{index=9}
Indicators 16 port indicators, 3 status indicators :contentReference[oaicite:10]{index=10}
Inrush Current, Max 2.2 A :contentReference[oaicite:11]{index=11}
Isolation Voltage 50 V continuous (basic insulation), between power to ground / network channels :contentReference[oaicite:12]{index=12}
Wire / Cable Requirements – Power 0.33 … 3.3 mm² (22…12 AWG) solid or stranded copper, insulation ≤ 1.2 mm :contentReference[oaicite:13]{index=13}
Functional Ground Wire 3.3 mm² (12 AWG) solid or stranded copper rated ≥ 75 °C :contentReference[oaicite:14]{index=14}
Torque on DC Power / Ground Terminals 1.36 N·m (12 lb-in) :contentReference[oaicite:15]{index=15}
Enclosure Type / Mounting Open style, DIN rail mounting, IP20 (no rugged enclosure) :contentReference[oaicite:16]{index=16}
Operating Temperature 32 … 140 °F (≈ 0 … 60 °C) :contentReference[oaicite:17]{index=17}
Weight ≈ 0.28 kg (0.63 lb) :contentReference[oaicite:18]{index=18}
