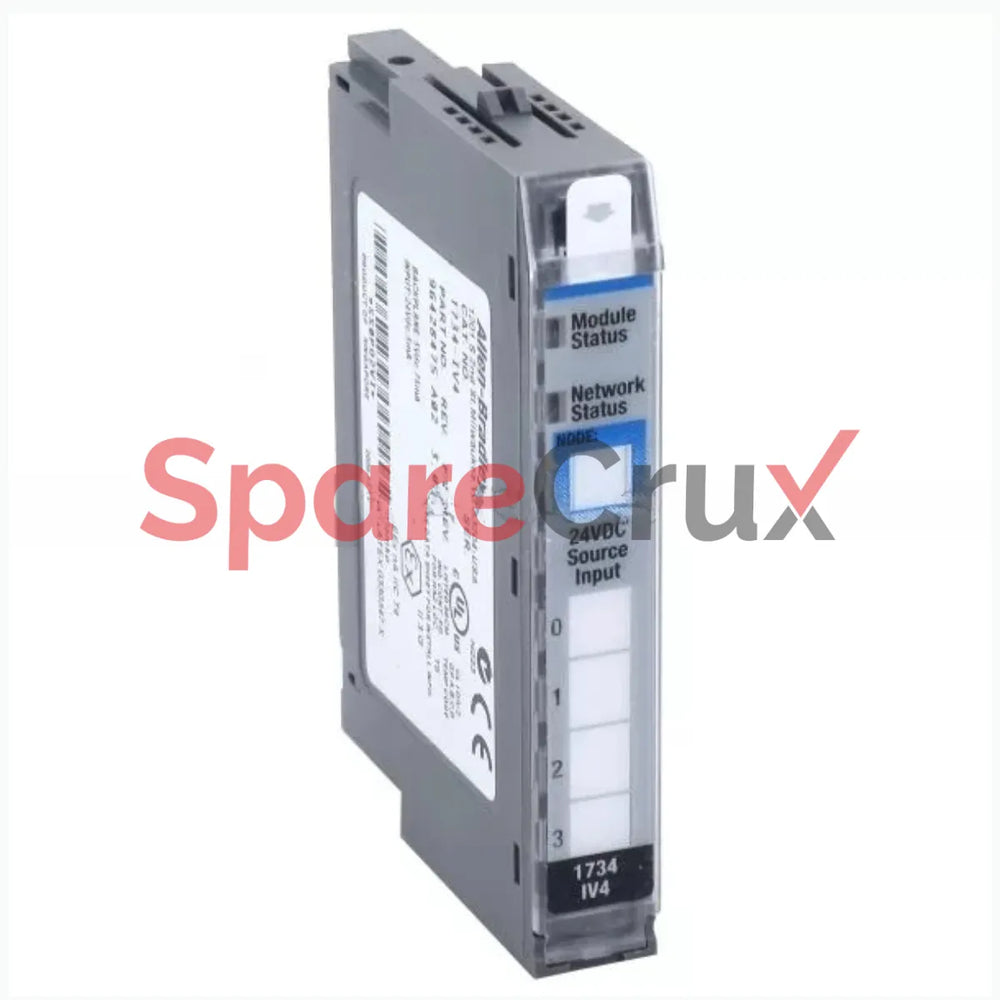

1734-IV4 | ALLEN BRADLEY | POINT I/O 4-Channel 24V DC Sourcing Input Module

₹ 5,214.82

₹ 4,419.34 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1734-IV4_Allen_Bradley

Original Equipment Manufacturer

ALLEN BRADLEY

説明

Specification

1734-IV4

Input Channels

4

Input Type

24V DC sourcing input

Voltage Range

10…28.8V DC

Current Rating per Channel

2.7 mA nominal at 24V DC

Input Delay Time

0.5 ms hardware delay; selectable filter time (0…65 ms, default 1 ms)

Off-State Voltage

0…5V DC

Off-State Current

< 1.5 mA

Power Consumption

0.8 W max

Power Dissipation

2.7 BTU/hr max

Isolation Voltage

50V (continuous), Basic Insulation Type

Dimensions (HxWxD)

56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)

Operating Temperature Range

-20…55 °C (-4…131 °F)

Certifications

CE, UL, c-UL, Class I Division 2, ATEX Zone 2, IECEx
