SPARECRUX is NOT an authorized distributor for FESTO

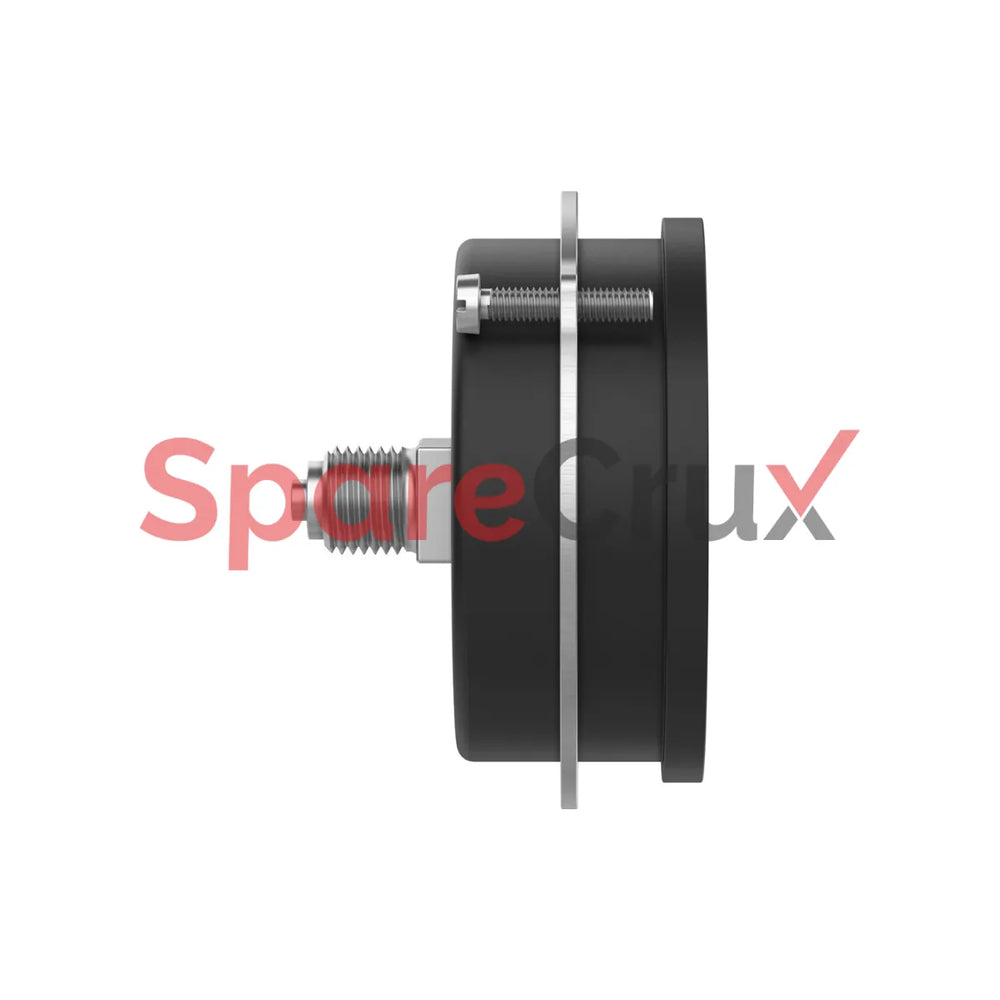

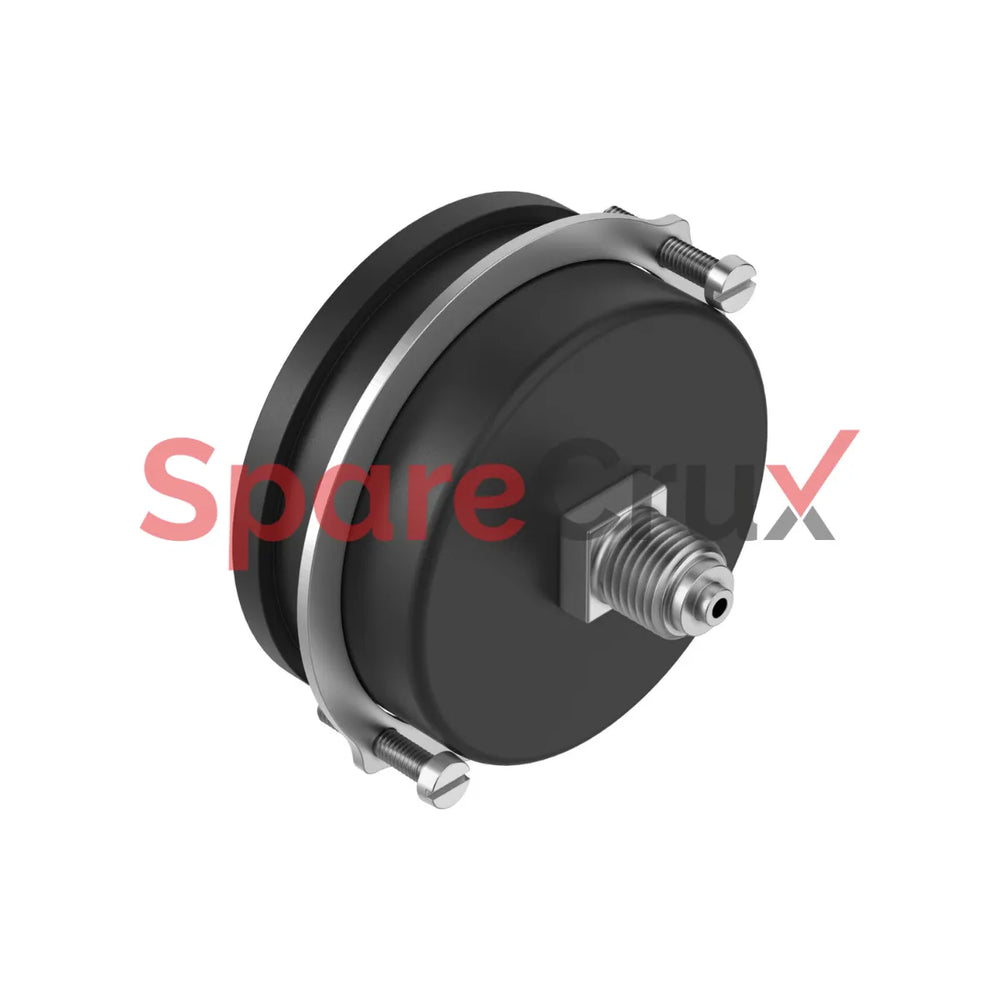

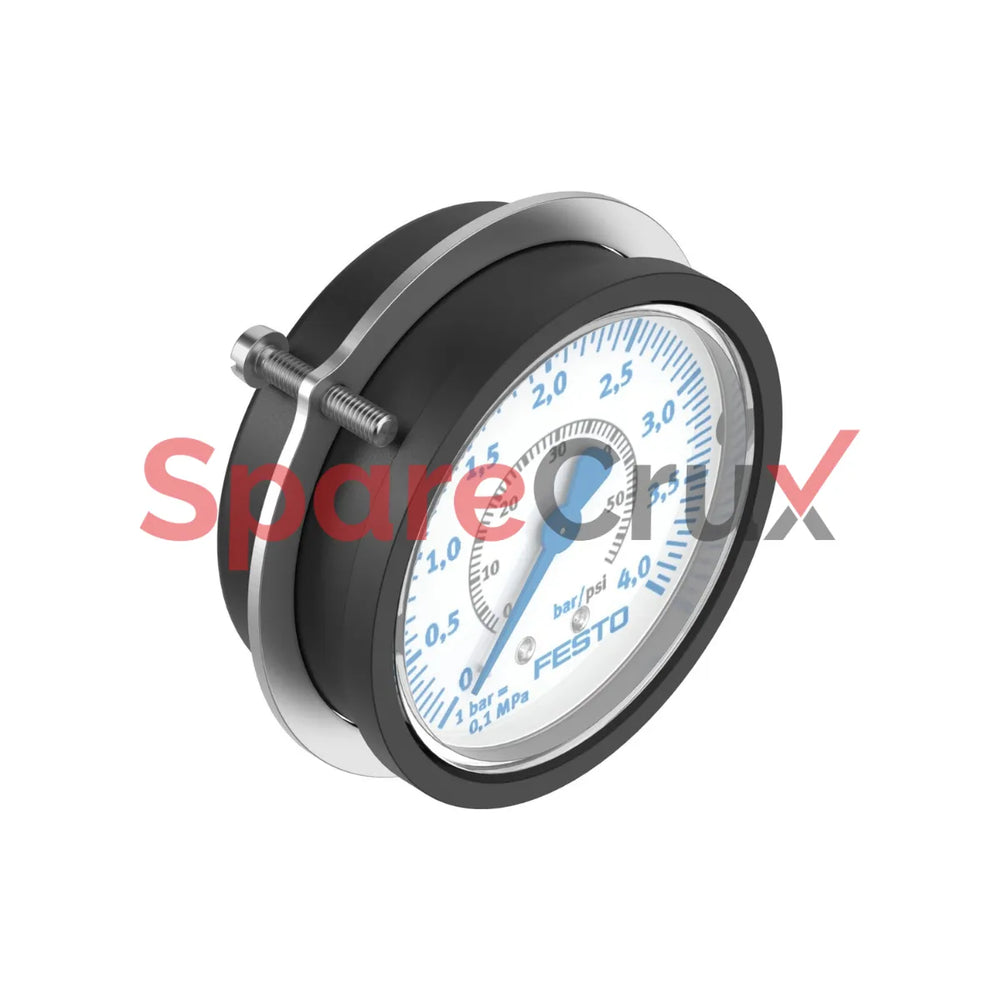

162843 | FESTO | Flanged Precision Pressure Gauge FMAP-63-4-1/4-EN

₹ 1,459.97

₹ 1,237.26 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

162843

Original Equipment Manufacturer

FESTO

説明
Parameter Specification
Indicating range 0 bar – 4 bar1 psi – 58 psi
Symbol 00991463
Conforms to standard EN 837-1
Nominal size of pressure gauge 63
Explosion protection ATEX Zones 1, 2, 21, 22(Certificate must be observed)
Design Bourdon tube pressure gauge
Type of mounting Front panel mounting
Operating medium Inert gases, Neutral fluids
Note on operating/pilot medium No acetylene, No oxygen
Operating pressure 0 MPa – 0.4 MPa0 bar – 4 bar0 psi – 58 psi
Alternating load factor 0.66
Measurement accuracy class 1
Degree of protection (IP rating) IP43
Media temperature range -20 °C to 60 °C
Ambient temperature range -20 °C to 60 °C
LABS (PWIS) conformity VDMA24364-B1/B2-L
Material note RoHS-compliant
Position of connection Centred, rear side
Pneumatic connection G1/4
Material (medium-contact) Brass
Material (screwed plug) Brass
Material (housing) ABS
Material (screen) SAN (Styrene Acrylonitrile)
Material (mounting ring) Steel
FESTO

162843 | FESTO | Flanged Precision Pressure Gauge FMAP-63-4-1/4-EN

₹ 1,237.26
Parameter Specification
Indicating range 0 bar – 4 bar1 psi – 58 psi
Symbol 00991463
Conforms to standard EN 837-1
Nominal size of pressure gauge 63
Explosion protection ATEX Zones 1, 2, 21, 22(Certificate must be observed)
Design Bourdon tube pressure gauge
Type of mounting Front panel mounting
Operating medium Inert gases, Neutral fluids
Note on operating/pilot medium No acetylene, No oxygen
Operating pressure 0 MPa – 0.4 MPa0 bar – 4 bar0 psi – 58 psi
Alternating load factor 0.66
Measurement accuracy class 1
Degree of protection (IP rating) IP43
Media temperature range -20 °C to 60 °C
Ambient temperature range -20 °C to 60 °C
LABS (PWIS) conformity VDMA24364-B1/B2-L
Material note RoHS-compliant
Position of connection Centred, rear side
Pneumatic connection G1/4
Material (medium-contact) Brass
Material (screwed plug) Brass
Material (housing) ABS
Material (screen) SAN (Styrene Acrylonitrile)
Material (mounting ring) Steel
