SPARECRUX is NOT an authorized distributor for FESTO

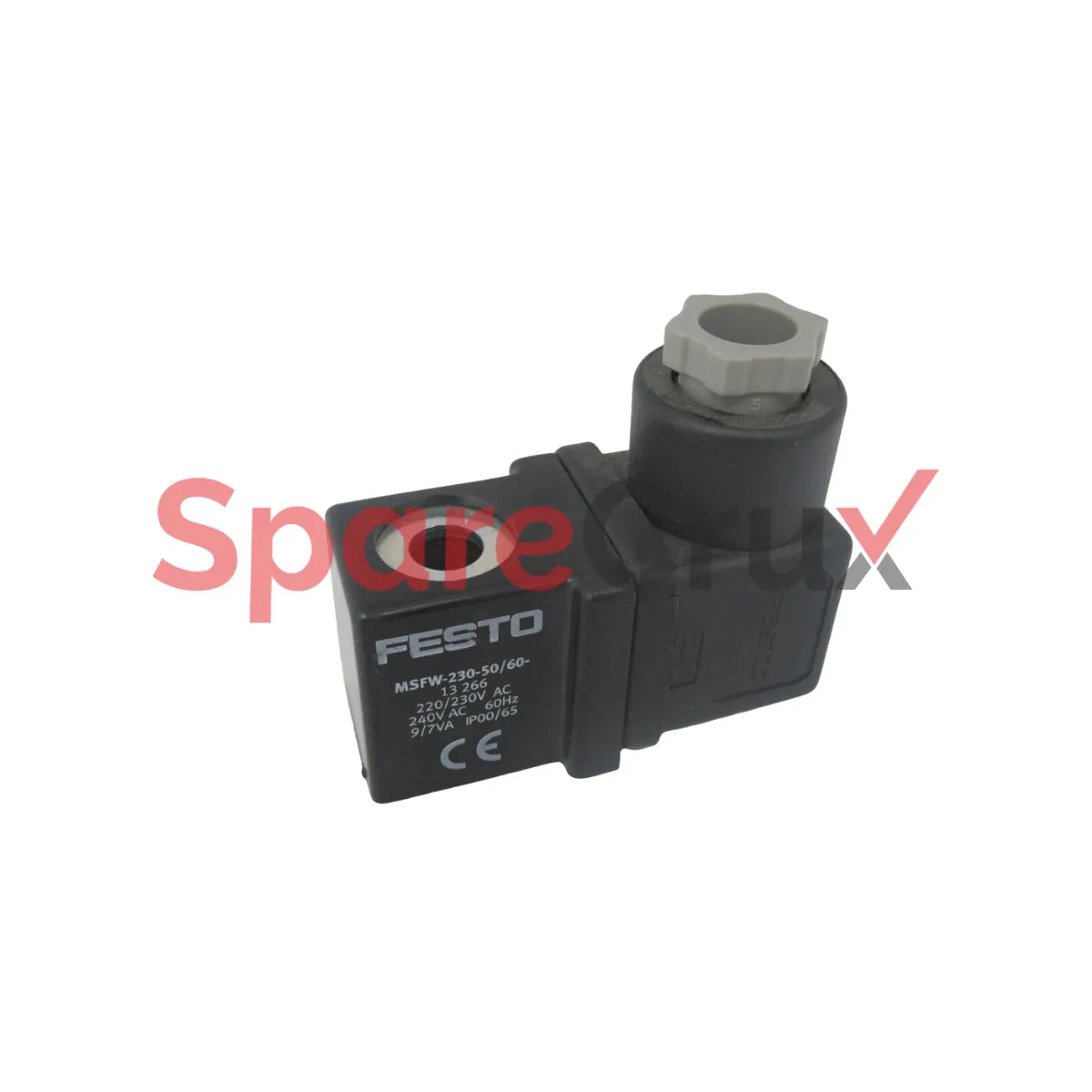

13266 | FESTO | Solenoid Coil MSFW-230-50/60-DS

₹ 1,087.38

₹ 921.51 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

13266

Original Equipment Manufacturer

FESTO

説明
Category Specification
Mounting Position Optional
Switching Position Indicator No
Min. Pick-Up Time 10 ms
Duty Cycle 100%
Power Factor (cos φ) 0.7
Coil Data 230 V AC, 50/60 HzPick-up power: 9.0 VAHolding power: 7.0 VA
Permissible Frequency Fluctuations ±5%
Permissible Voltage Fluctuations ±10%
Maritime Classification See certificate
Certifications & Markings CE mark (EU Low Voltage Directive)UKCA marking (UK electrical regs)
Certificate Authority DNV-TAA000032X
LABS (PWIS) Conformity VDMA24364-C1-L
Degree of Protection (IP Rating) IP65
Ambient Temperature Range -5 °C to +40 °C
Max. Tightening Torque for Socket 0.4 Nm
Product Weight 55 g
Electrical Connection Type A (to DIN EN 175301-803)
Mounting Type Via knurled nut
RoHS Compliance Yes
Materials – Solenoid Coil Duroplast, Copper, Steel
Material – Winding Copper
FESTO

13266 | FESTO | Solenoid Coil MSFW-230-50/60-DS

₹ 921.51
Category Specification
Mounting Position Optional
Switching Position Indicator No
Min. Pick-Up Time 10 ms
Duty Cycle 100%
Power Factor (cos φ) 0.7
Coil Data 230 V AC, 50/60 HzPick-up power: 9.0 VAHolding power: 7.0 VA
Permissible Frequency Fluctuations ±5%
Permissible Voltage Fluctuations ±10%
Maritime Classification See certificate
Certifications & Markings CE mark (EU Low Voltage Directive)UKCA marking (UK electrical regs)
Certificate Authority DNV-TAA000032X
LABS (PWIS) Conformity VDMA24364-C1-L
Degree of Protection (IP Rating) IP65
Ambient Temperature Range -5 °C to +40 °C
Max. Tightening Torque for Socket 0.4 Nm
Product Weight 55 g
Electrical Connection Type A (to DIN EN 175301-803)
Mounting Type Via knurled nut
RoHS Compliance Yes
Materials – Solenoid Coil Duroplast, Copper, Steel
Material – Winding Copper
