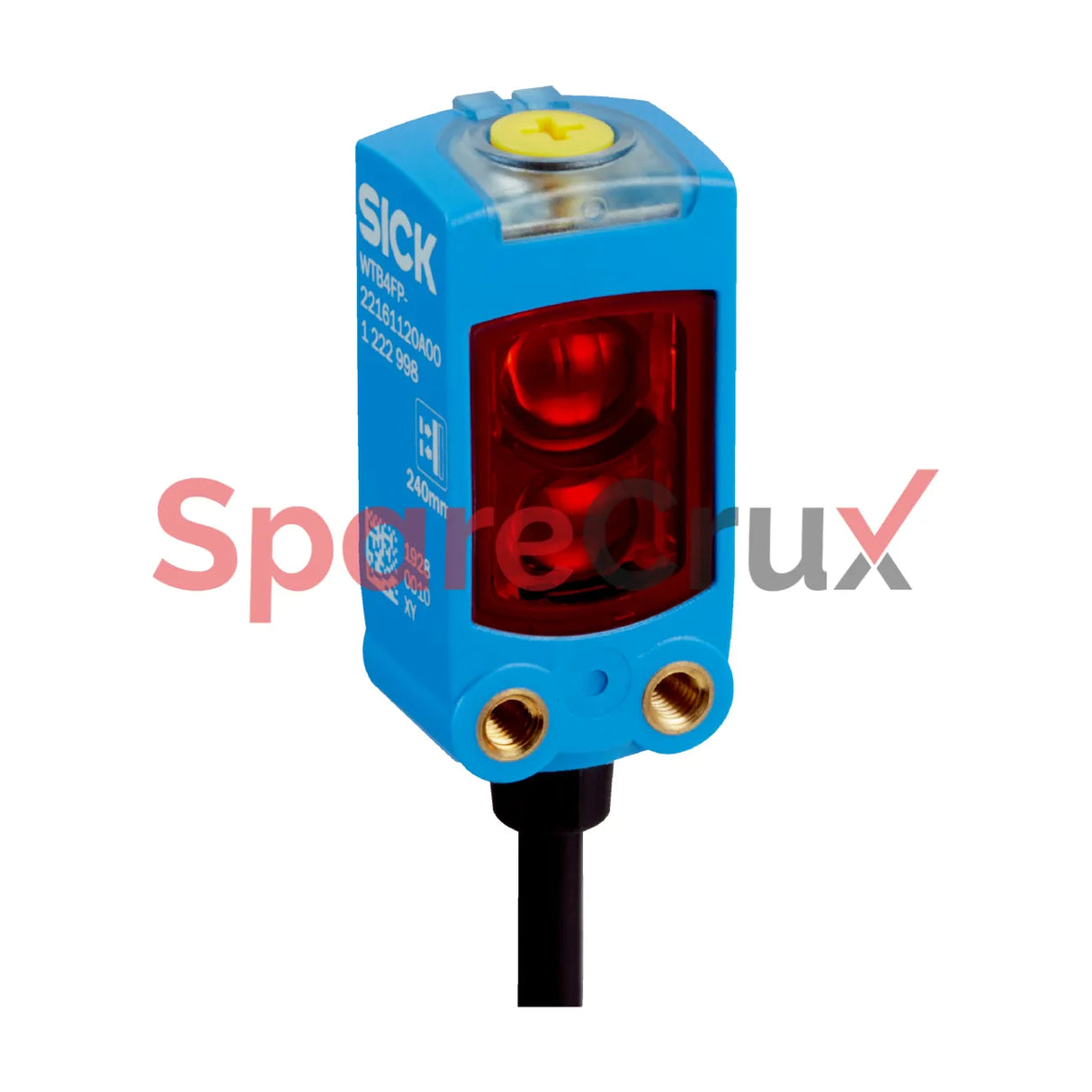

1120711 | SICK SENSORS | WTB4FP-1G312120ZZZ Photoelectric Proximity Sensor

₹ 20,556.07

₹ 17,420.40 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Supply voltage UB 10 V DC ... 30 V DC
Ripple ≤ 5 Vpp
Housing Rectangular
Design detail Flat
Dimensions (W x H x D) 16 mm x 40.1 mm x 12.1 mm
Connection Cable, 3-wire, 2 m



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1120711

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle – Photoelectric proximity sensor

Functional principle detail – Background suppression

Sensing range min. – 4 mm

Sensing range max. – 220 mm

Adjustable switching threshold for background suppression – 15 mm … 220 mm

Reference object – Object with 90% remission factor (complies with standard white according to DIN 5033)

Minimum distance between set sensing range and background (black 6% / white 90%) – 3 mm, at a distance of 80 mm

Recommended sensing range for the best performance – 40 mm … 140 mm

Normative reference – EN 62471:2008-09 | IEC 62471:2006, modified

LED risk group marking – Free group

Wave length – 635 nm

Average service life – 100,000 h at Ta = +25 °C

Supply voltage UB – 10 V DC … 30 V DC 1)

Ripple – ≤ 5 Vpp

Usage category – DC-12 (According to EN 60947-5-2)

Usage category – DC-13 (According to EN 60947-5-2)

Current consumption – ≤ 25 mA, without load. At UB = 24 V

Protection class – III

Housing – Rectangular

Design detail – Flat

Dimensions (W x H x D) – 16 mm x 40.1 mm x 12.1 mm

Connection – Cable, 3-wire, 2 m

Weight – Approx. 30 g

MTTFD – 642 years

DCavg – 0 %

TM (mission time) – 20 years

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

ECOLAB certificate – ✔

cULus certificate – ✔

ECLASS 5.0 – 27270904

ECLASS 5.1.4 – 27270904

ECLASS 6.0 – 27270904

ECLASS 6.2 – 27270904

ECLASS 7.0 – 27270904

ECLASS 8.0 – 27270904

ECLASS 8.1 – 27270904

ECLASS 9.0 – 27270904
