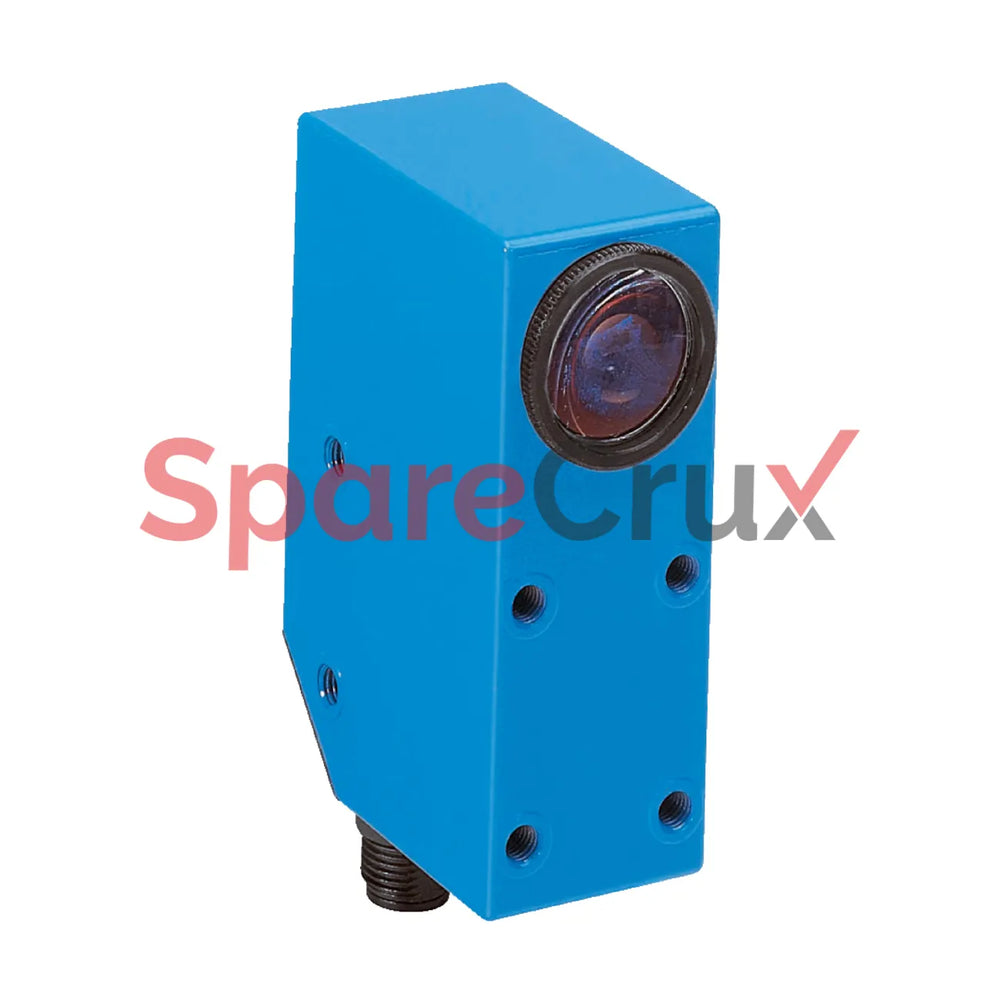

1015397 | SICK SENSORS | LUT3-620 Luminescence Sensors

₹ 126,118.40

₹ 106,880.00 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1015397

Original Equipment Manufacturer

SICK SENSORS

説明
Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
Sensing distance ≤ 20 mm 1)
Housing design Large
Working range 10 mm ... 35 mm
Light source LED, UV 2)
Wave length 375 nm
Light emission Long side
Light spot size 3 mm x 9 mm
Light spot direction Vertical
Receiving filters ≤ 420 nm 3)
Receiving range 450 nm ... 750 nm
Adjustment Potentiometer
Supply voltage 12 V DC ... 30 V DC 1)
Ripple < 2 Vpp 2)
Current consumption < 60 mA 3)
Switching frequency 1.5 kHz 4)
Response time 350 µs 5)
Switching output PNP, NPN
Switching output (voltage)

PNP: HIGH = VS– ≤ 3 V / LOW = approx. 0 V

NPN: HIGH = approx. UV / LOW ≤ 2 V
Switching mode Light switching
Output current Imax. 100 mA
Connection type Male connector M12, 4-pin
Protection class II 6)
