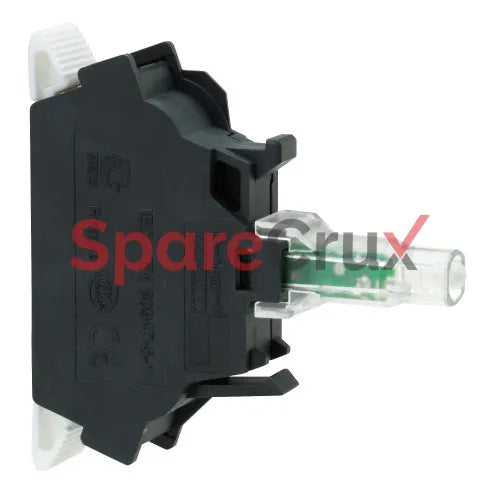

ZBV-B6N | SCHNEIDER ELECTRIC | Light block for head Ø22, blue, integral LED, 24 V AC/DC AC

₹ 2,802.50

₹ 2,375.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

ZBV-B6N

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Descripción
Range of product Harmony XB4 / XB5
Product or component type Light block
Device short name ZBV
Sale per indivisible quantity 5 pcs
Connections – terminals Screw clamp terminals: ≤ 2 × 1.5 mm² with cable end; ≥ 1 × 0.22 mm² without cable end (EN IEC 60947‑1)
Signalling type Steady
Light source Protected integral LED
Light source colour Blue
Rated supply voltage 24 V AC/DC, 50/60 Hz
Supply voltage limits 21.6…26.4 V AC; 19.2…30 V DC
Current consumption ≈ 18 mA
Product weight ≈ 0.017 kg
Tightening torque 0.8…1.2 N·m (EN IEC 60947‑1)
Service life 100 000 h at rated voltage and 25 °C
Surge withstand 1 kV (IEC 61000‑4‑5)
Fast transient resistance 2 kV (IEC 61000‑4‑4)
EMC field resistance 10 V/m (IEC 61000‑4‑3)
Electrostatic discharge resistance 6 kV on contact; 8 kV in air (IEC 61000‑4‑2)
Electromagnetic emission Class B (IEC 55011)
Mounting of block Front mounting
Ambient air temperature for operation −40…70 °C
Ambient air temperature for storage −40…70 °C
IP degree of protection IP20 (IEC 60529)
Standards & certifications EN/IEC 60947‑1, ‑5‑1, ‑5‑4, ‑5‑5; JIS C 4520; UL 508; CSA C22.2 No 14; CSA listed
Protective treatment TH
Sustainability status Green Premium product; RoHS compliant; REACh SVHC‑free
