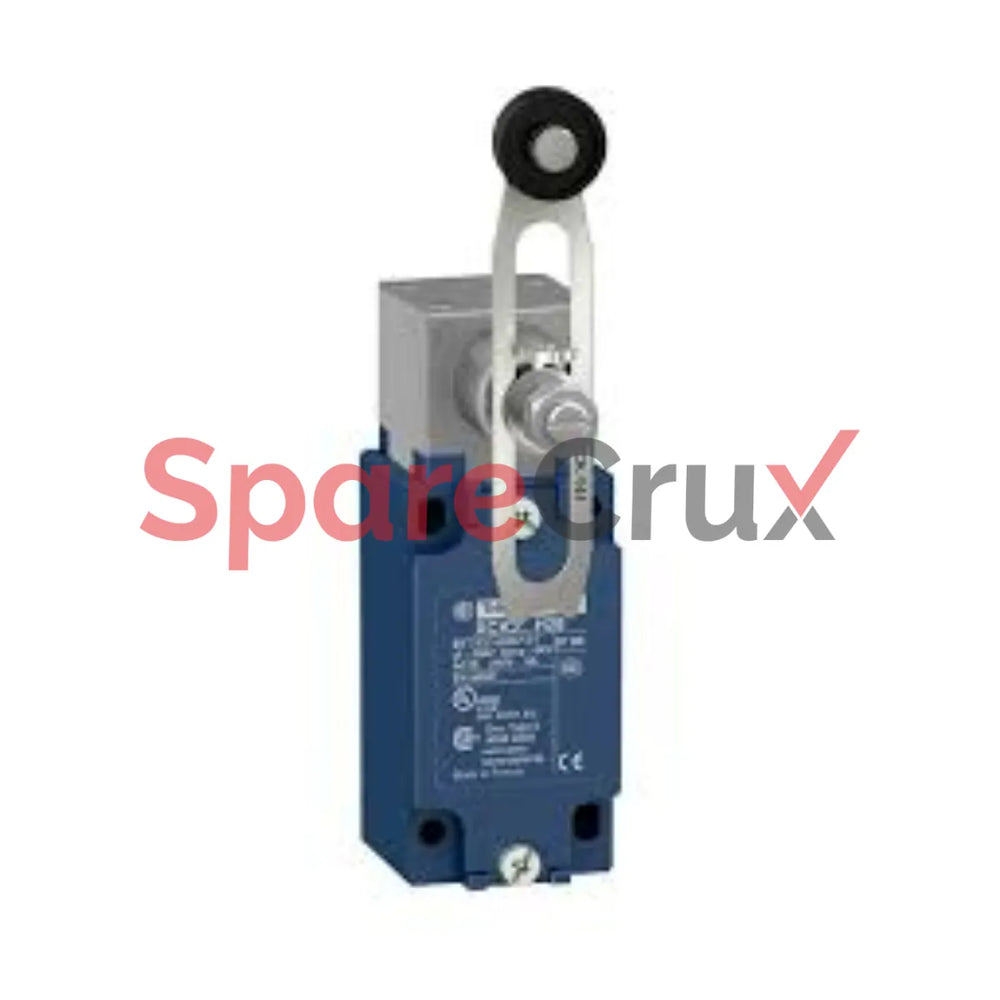

XCKJ10541 | TELEMECANIQUE SENSORS | Limit Switch

₹ 1,614.24

₹ 1,368.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

XCKJ10541

Original Equipment Manufacturer

TELEMECANIQUE SENSORS

Descripción
Specification Details
Manufacturer Telemecanique Sensors
Series / Range XC Standard (XCKJ)
Device Short Name XCKJ10541
Operator / Actuator Type Variable length thermoplastic roller lever
Contacts Configuration 1 NC + 1 NO
Contact Operation Snap action
Cable Entry 1 tapped entry for Pg 13.5 (outer Ø 9-12 mm) :contentReference[oaicite:1]{index=1}
Rated Operational Current (AC-15) 3 A at 240 V AC :contentReference[oaicite:2]{index=2}
Rated Operational Current (DC-13) 0.27 A at 250 V DC :contentReference[oaicite:3]{index=3}
Rated Insulation Voltage (Ui) 500 V (pollution degree 3) conforming to IEC 60947-1 :contentReference[oaicite:4]{index=4}
Impulse Withstand Voltage (Uimp) 6 kV :contentReference[oaicite:5]{index=5}
Mechanical Durability 30,000,000 cycles :contentReference[oaicite:6]{index=6}
Electrical Durability 5,000,000 cycles (inductive loads DC-13) :contentReference[oaicite:7]{index=7}
Operating Temperature Range -25 °C … +70 °C :contentReference[oaicite:8]{index=8}
IP Rating IP66 conforming to IEC 60529 :contentReference[oaicite:9]{index=9}
Body Material Zamak (metal) :contentReference[oaicite:10]{index=10}
Mounting Dimensions (Body) Approx. 40 mm width x 77 mm height x 44 mm depth :contentReference[oaicite:11]{index=11}
