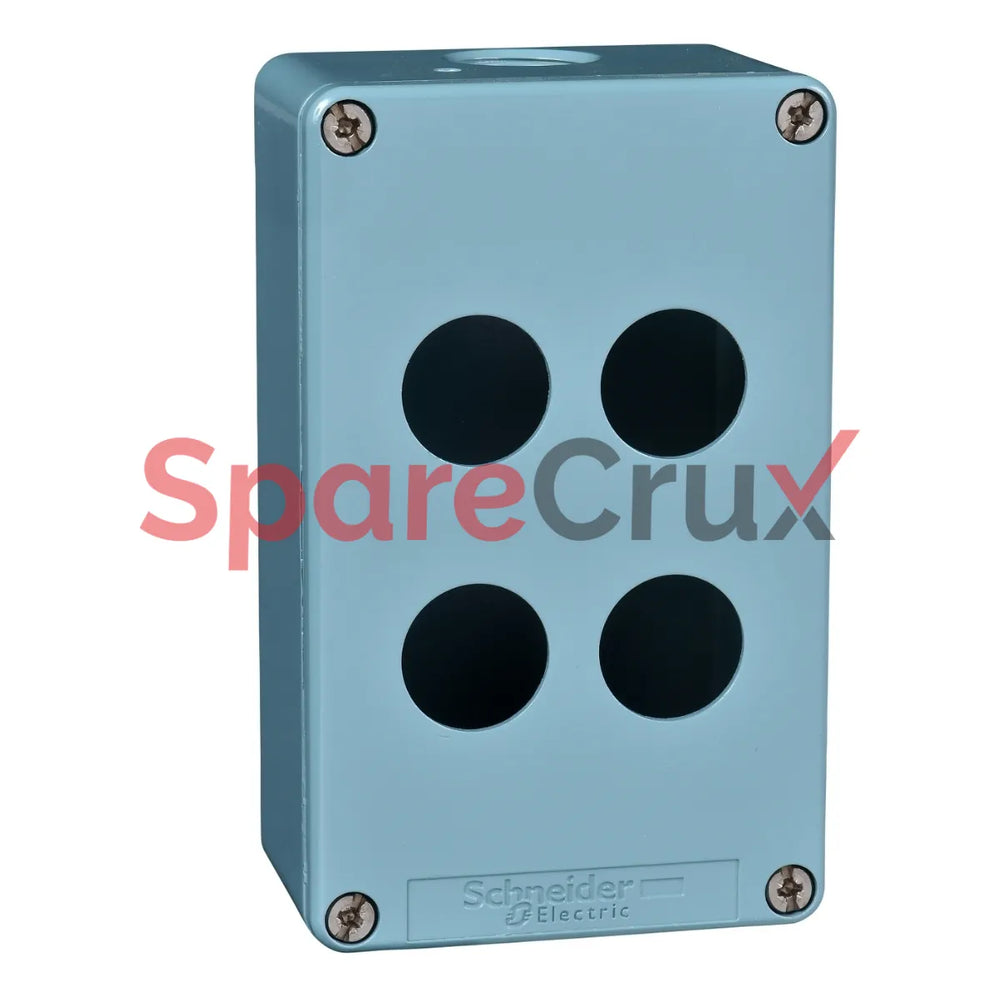

XAPM2204 | SCHNEIDER ELECTRIC | Die-cast Empty Control Station - XAPM - Ø22- zinc alloy- 4 openings in 2 columns

₹ 7,571.23

₹ 6,416.30 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

XAPM2204

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Descripción

Series Harmony XAP / XB2 SL
Material Zinc alloy (die‑cast)
Color Blue
Front Plate Size (H × W) 80 × 130 mm
Usable Depth 49 mm
Number of Cut‑Outs 4 × Ø22 mm (in 2 columns × 2 rows)
Cable Entries 1 hole with blanking plug and 1 without for ≤14 mm cable gland
Mounting Style Flush mount
IP Rating IP65 (IEC 60529), IP69K (NF C 20‑010)
Class / Overvoltage Category Class I (IEC 60536, NF C 20‑030)
Ambient Operating Temp −40 °C to +70 °C
Storage Temperature −40 °C to +70 °C
Weight ≈ 0.6 kg
Vertical Rows 2
IP / Mechanical Protection IP65 front, IP69K overall
Operating Standards IEC 60529, NF C 20‑010, NF C 20‑030
Environmental Compliance Green Premium product; RoHS/REACh compliant
