SPARECRUX is NOT an authorized distributor for ALLEN BRADLEY

This product has been discontinued, and manufacturer warranty or support may no longer be available.

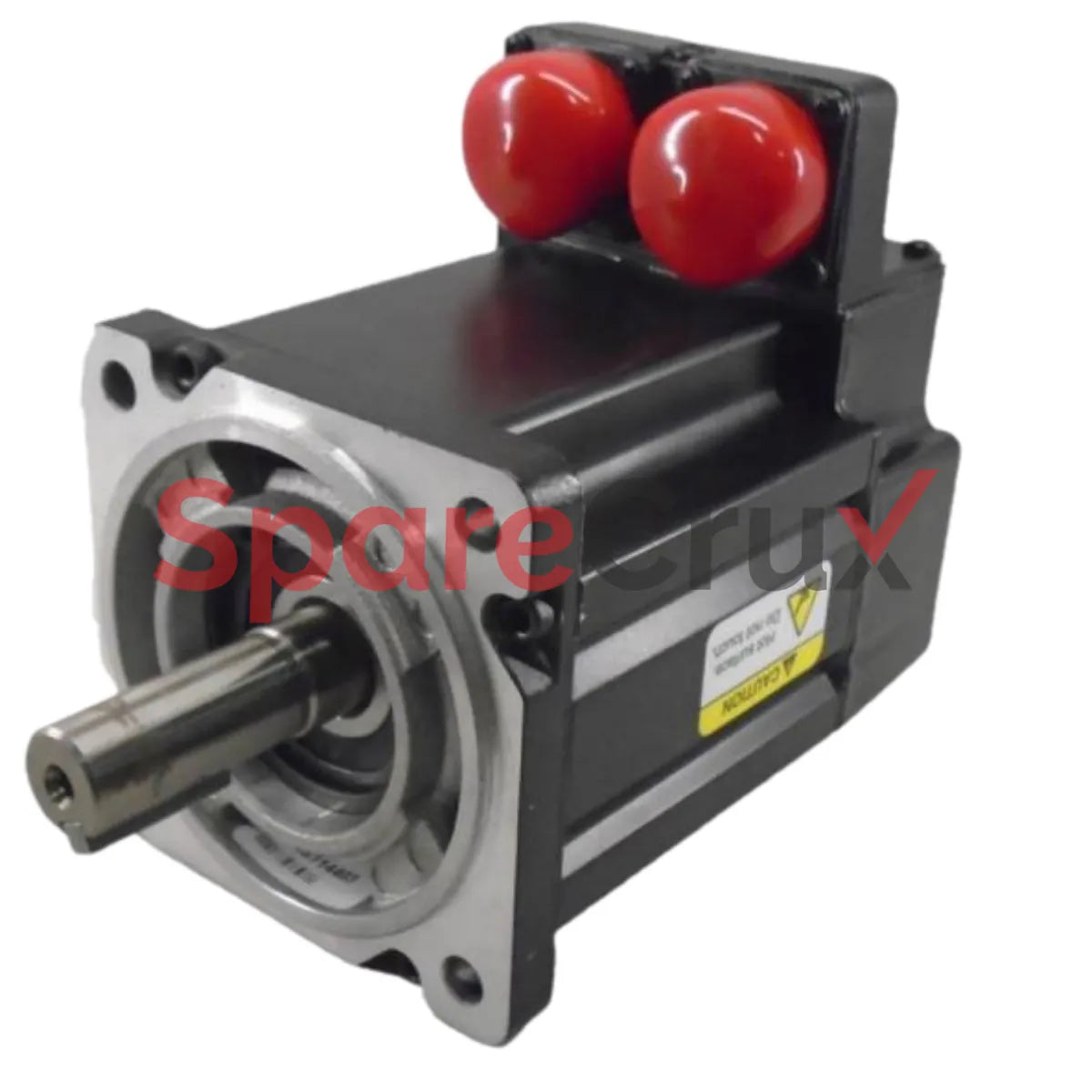

MPL-B230P-EJ42AA | ALLEN BRADLEY | Servo Motor

₹ 148,517.40

₹ 125,862.20 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

MPL-B230P-EJ42AA

Original Equipment Manufacturer

ALLEN BRADLEY

Descripción

Part Number MPL‑B230P‑EJ42AA
Manufacturer Allen‑Bradley / Rockwell Automation
Series MPL Premium Permanent‑Magnet Rotary Servo Motor (Low Inertia)
Voltage Class 400 V AC (≈460 VAC)
Frame Size 75 mm IEC (Frame “2”)
Magnet Stack Length 76.2 mm (3.0 in)
Rated Speed 5000 rpm
Rated Power Output 0.86 kW (≈230 W)
Continuous Stall Torque ~2.1 Nm
Peak Stall Torque ~8.2 Nm
Continuous Stall Current ~2.6 A (peak ~11.3 A)
Rotor Inertia 0.000063 kg·m²
Feedback 128 sin/cos absolute single‑turn encoder (Hiperface)
Shaft Keyed shaft; No shaft seal; No brake
Connector Circular DIN connector, right‑angle, 180° rotatable (3 connectors)
Mounting Flange IEC metric, free mounting holes type FF
Weight ≈5.6 lb (≈2.54 kg)
ALLEN BRADLEY

MPL-B230P-EJ42AA | ALLEN BRADLEY | Servo Motor

₹ 125,862.20
Part Number MPL‑B230P‑EJ42AA
Manufacturer Allen‑Bradley / Rockwell Automation
Series MPL Premium Permanent‑Magnet Rotary Servo Motor (Low Inertia)
Voltage Class 400 V AC (≈460 VAC)
Frame Size 75 mm IEC (Frame “2”)
Magnet Stack Length 76.2 mm (3.0 in)
Rated Speed 5000 rpm
Rated Power Output 0.86 kW (≈230 W)
Continuous Stall Torque ~2.1 Nm
Peak Stall Torque ~8.2 Nm
Continuous Stall Current ~2.6 A (peak ~11.3 A)
Rotor Inertia 0.000063 kg·m²
Feedback 128 sin/cos absolute single‑turn encoder (Hiperface)
Shaft Keyed shaft; No shaft seal; No brake
Connector Circular DIN connector, right‑angle, 180° rotatable (3 connectors)
Mounting Flange IEC metric, free mounting holes type FF
Weight ≈5.6 lb (≈2.54 kg)
