SPARECRUX is NOT an authorized distributor for SKF

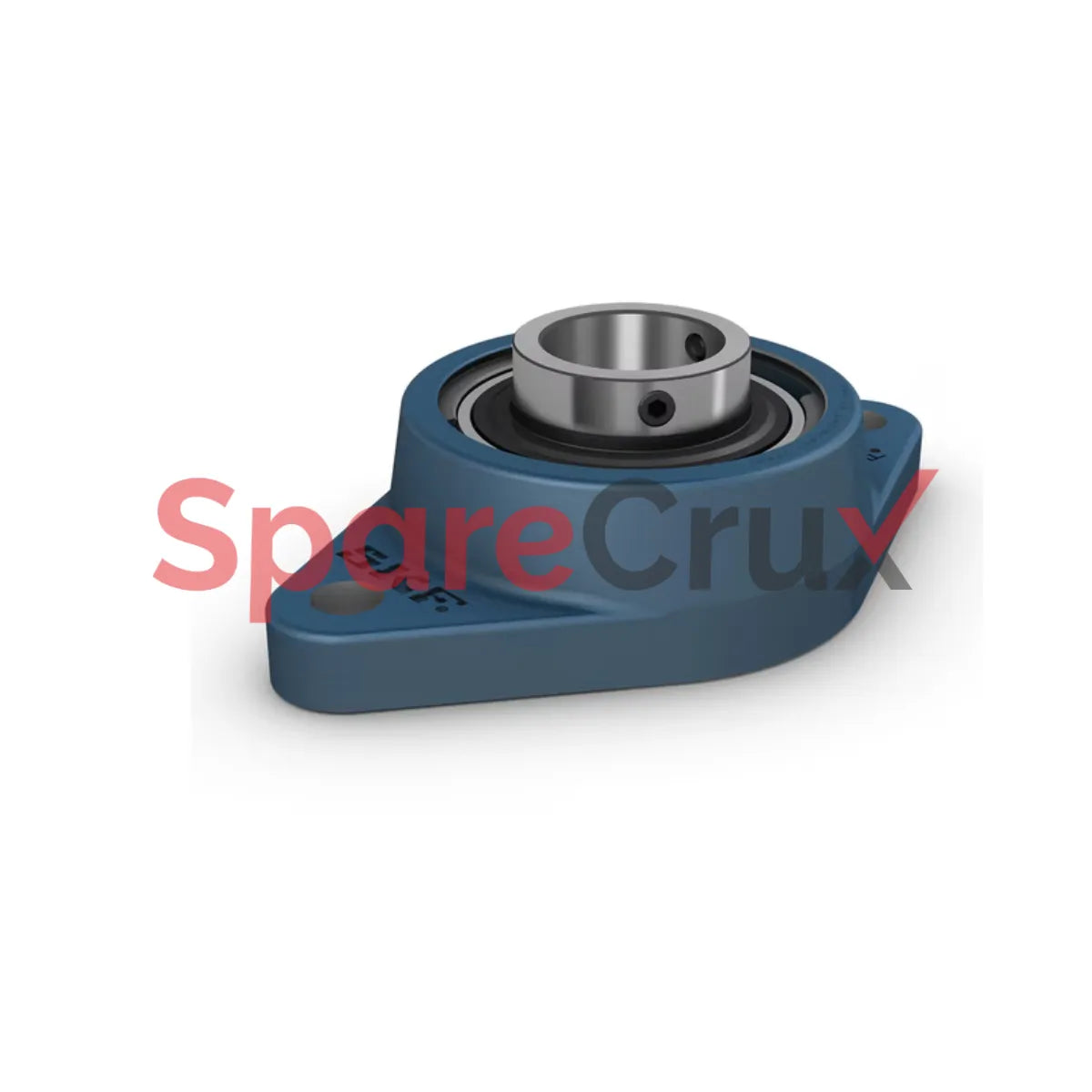

FYTB 20 TF | SKF | Oval Flanged Ball Bearing Unit

₹ 2,762.14

₹ 2,340.80 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

FYTB 20 TF

Original Equipment Manufacturer

SKF

Descripción

Feature Specification
Brand SKF
Model FYTB 20 TF
Bore Diameter (d) 20 mm
Housing Material Cast Iron
Bearing Type Y-bearing (insert bearing with extended inner ring)
Locking Mechanism Set screw
Mounting Type 2-bolt flange
Bolt Hole Diameter 11.5 mm
Bolt Hole Distance 90 mm
Total Length 60.5 mm
Width (B) 31 mm
Height (H) 112 mm
Dynamic Load Rating (C) 12.7 kN
Static Load Rating (C₀) 6.55 kN
Limiting Speed 8,500 rpm
Weight 0.43 kg
Country of Origin Italy
SKF

FYTB 20 TF | SKF | Oval Flanged Ball Bearing Unit

₹ 2,340.80
Feature Specification
Brand SKF
Model FYTB 20 TF
Bore Diameter (d) 20 mm
Housing Material Cast Iron
Bearing Type Y-bearing (insert bearing with extended inner ring)
Locking Mechanism Set screw
Mounting Type 2-bolt flange
Bolt Hole Diameter 11.5 mm
Bolt Hole Distance 90 mm
Total Length 60.5 mm
Width (B) 31 mm
Height (H) 112 mm
Dynamic Load Rating (C) 12.7 kN
Static Load Rating (C₀) 6.55 kN
Limiting Speed 8,500 rpm
Weight 0.43 kg
Country of Origin Italy
