SPARECRUX is NOT an authorized distributor for BUSSMANN

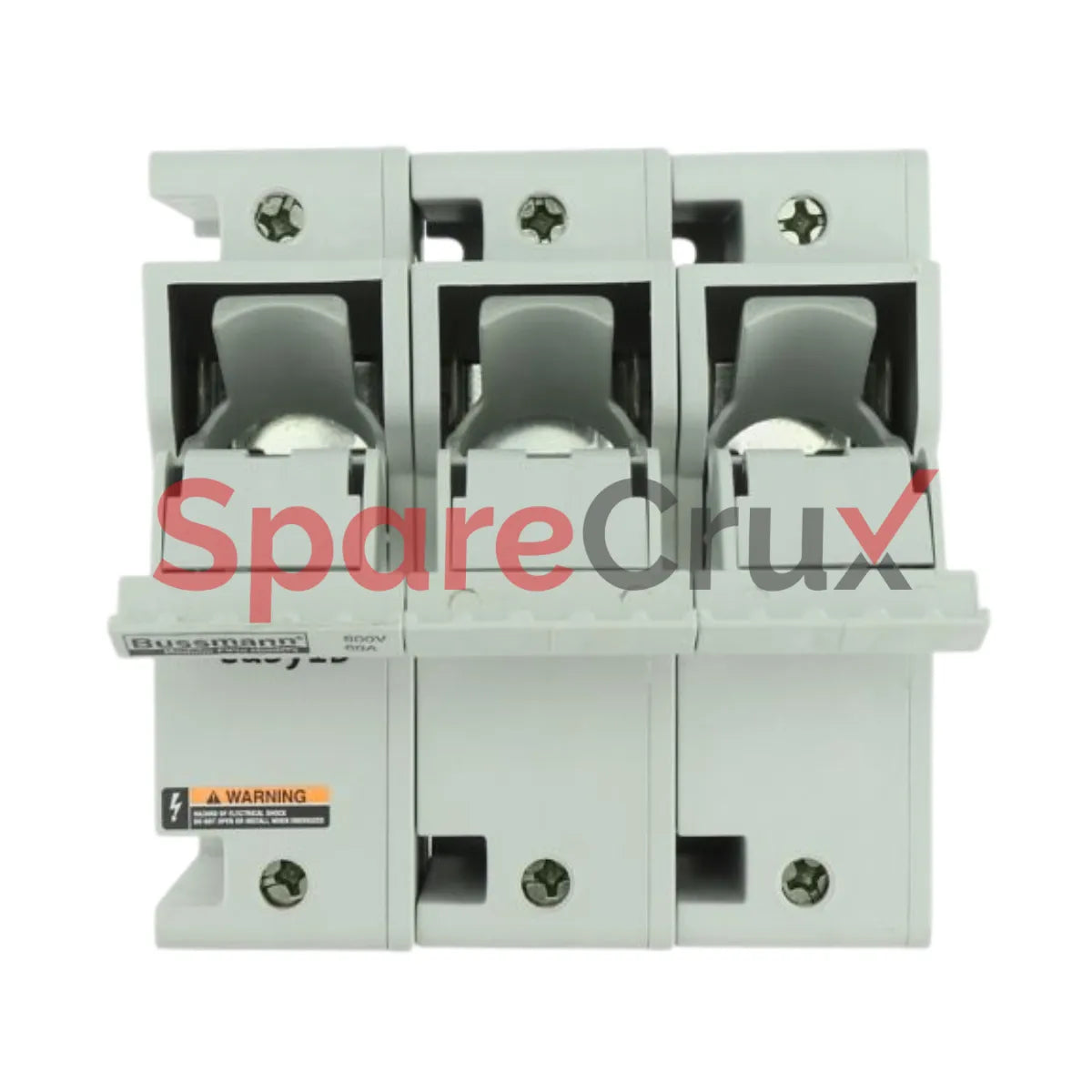

CH60J3 | BUSSMANN | 35 mm DIN rail, 600 Vac/dc

₹ 42,188.47

₹ 35,752.94 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

CH60J3

Original Equipment Manufacturer

BUSSMANN

Descripción
Specification Details
Product Name Eaton Bussmann series CH modular fuse holder
Catalog Number CH60J3
UPC 051712630931
Product Length/Depth 5 in
Product Height 2.5 in
Product Width 5 in
Product Weight 1.536 lb
Warranty Not Applicable
Compliances RoHS Compliant, CE Marked
Certifications UL Listed, CSA Certified, Contact Manufacturer
Amperage Rating 60 A
Voltage Rating 600 Vac, 600 Vdc
Material Tin-plated copper clip, Thermoplastic housing
Number of Poles Three-pole
Operating Temperature - Max 85 °C
Operating Temperature - Min 85 °C
Class Class J
Mounting Method 35 mm DIN rail, Panel
BUSSMANN

CH60J3 | BUSSMANN | 35 mm DIN rail, 600 Vac/dc

₹ 35,752.94
Specification Details
Product Name Eaton Bussmann series CH modular fuse holder
Catalog Number CH60J3
UPC 051712630931
Product Length/Depth 5 in
Product Height 2.5 in
Product Width 5 in
Product Weight 1.536 lb
Warranty Not Applicable
Compliances RoHS Compliant, CE Marked
Certifications UL Listed, CSA Certified, Contact Manufacturer
Amperage Rating 60 A
Voltage Rating 600 Vac, 600 Vdc
Material Tin-plated copper clip, Thermoplastic housing
Number of Poles Three-pole
Operating Temperature - Max 85 °C
Operating Temperature - Min 85 °C
Class Class J
Mounting Method 35 mm DIN rail, Panel
