SPARECRUX is NOT an authorized distributor for SICK SENSORS

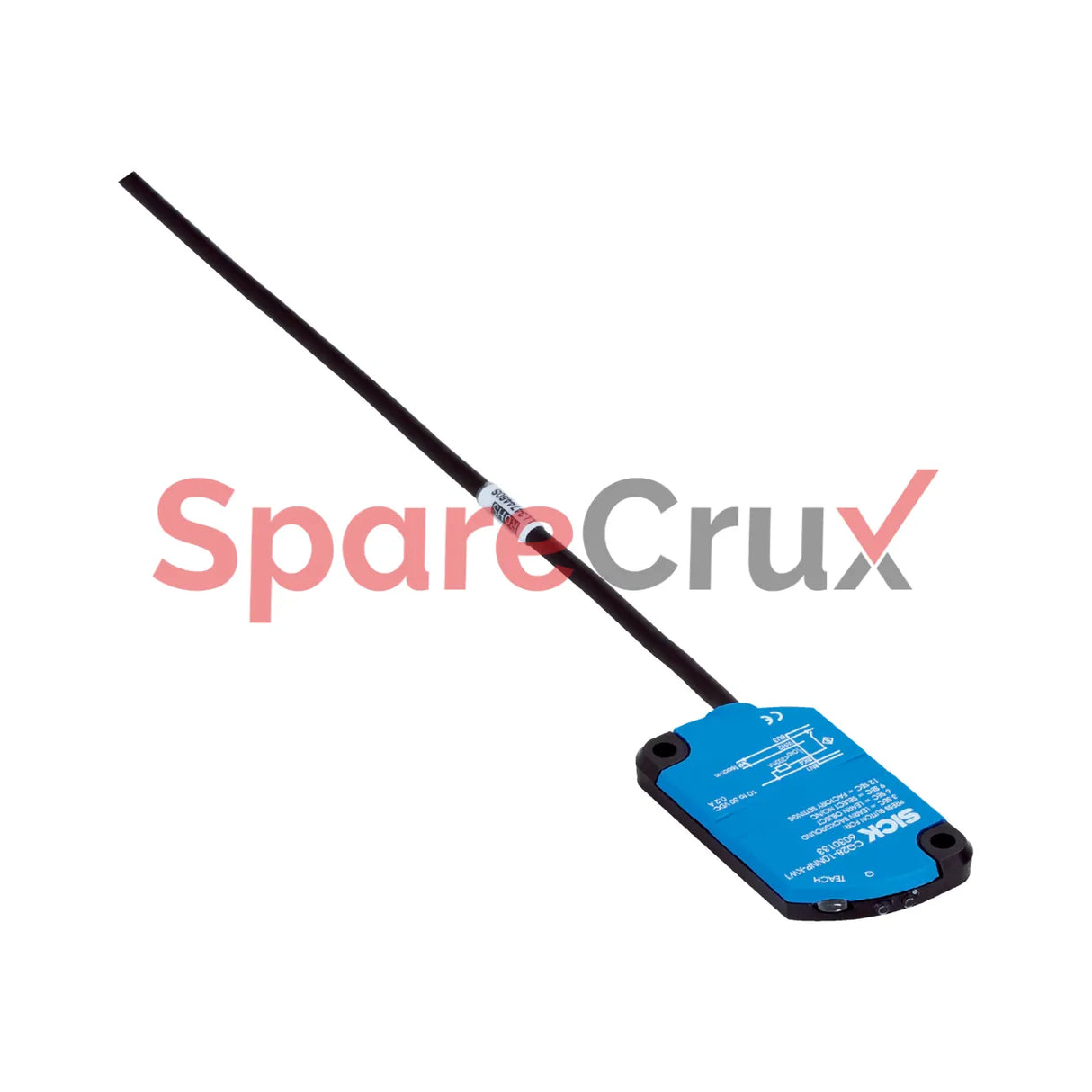

6030133 | SICK SENSORS | CQ28-10NNP-KW1 Capacitive Proximity Sensors

₹ 9,785.50

₹ 8,292.80 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6030133

Original Equipment Manufacturer

SICK SENSORS

Descripción

Housing Rectangular
Dimensions (W x H x D) 28 mm x 46 mm x 5.5 mm
Sensing range Sn 1 mm ... 10 mm
Safe sensing range Sa 7.2 mm
Installation type Non-flush
Switching frequency 10 Hz
Connection type Cable, 4-wire, 2 m 1)
Switching output NPN
Switching output detail NPN
Output function NC or NO
Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2.5 V DC 1)
Current consumption 12 mA 2)
Time delay before availability ≤ 300 ms
Reproducibility

≤ 5 % 3)

 4)

Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2 5)
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.14 mm²
