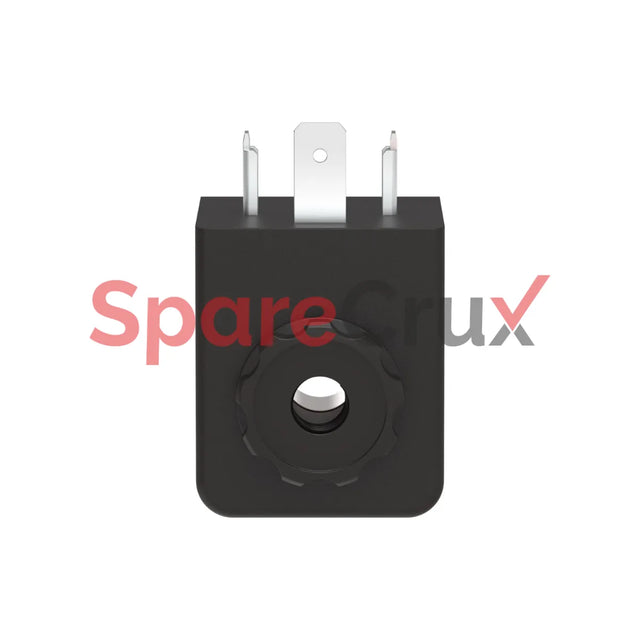

549905 | FESTO | Solenoid Coil MD-2-230VAC-PA

₹ 1,295.89

₹ 1,098.21 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

549905

Original Equipment Manufacturer

FESTO

Descripción

Feature Specification
Type of Actuation Electric
Mounting Position Optional
Duty Cycle 100%
Power Factor (cos φ) 0.7
Characteristic Coil Data 230 V AC, 50/60 Hz, Pick-up power: 14.5 VA, Holding power: 10.5 VA
Permissible Frequency Fluctuations ±10%
Permissible Voltage Fluctuations ±10%
CE Mark To EU Low Voltage Directive
UKCA Marking To UK regulations for electrical equipment
LABS (PWIS) Conformity VDMA24364-B2-L
Degree of Protection IP65
Ambient Temperature -20 °C to 50 °C
Max. Tightening Torque for Fitting 0.5 Nm
Product Weight 110 g
Electrical Connection To DIN EN 175301-803
Type of Mounting Via knurled nut
Note on Materials RoHS-compliant
Material Solenoid Coil Duroplast, Copper, Steel
Material Winding Copper
