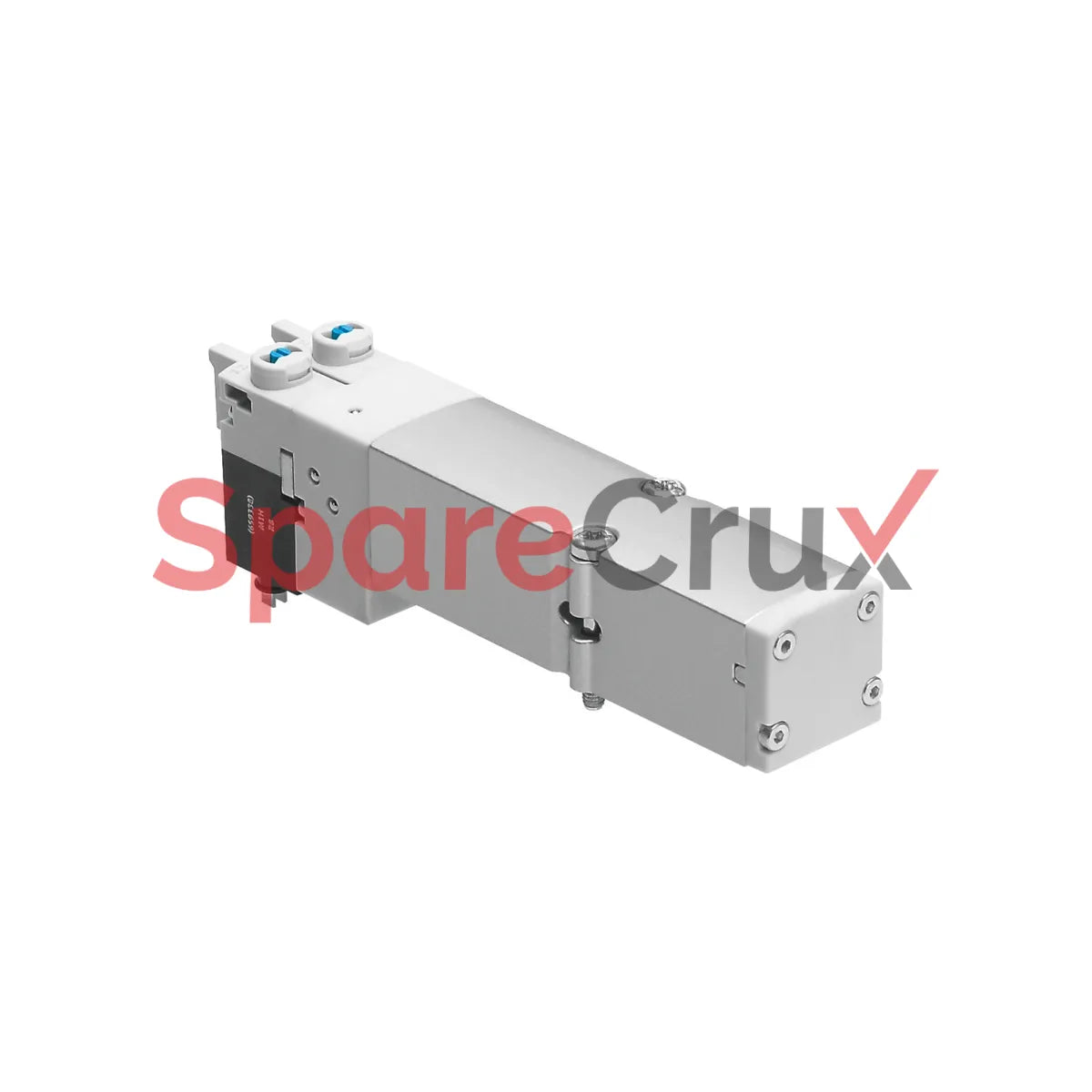

537953 | FESTO | Solenoid Valve VMPA2-M1H-J-PI

₹ 7,216.92

₹ 6,116.03 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

537953

Original Equipment Manufacturer

FESTO

Descripción

Specification Details
Valve function 5/2 bistable
Type of actuation Electric
Valve size 20 mm
Standard nominal flow rate 670 l/min (DIN 1343)
Operating voltage 24V DC
Operating pressure -0.09 MPa ... 1 MPa
-0.9 bar ... 10 bar
Design Piston gate valve
Approval c UL us - Recognized (OL)
Degree of protection IP65 (to IEC 60529)
Sealing principle Soft
Mounting position Optional
Manual override Detenting / Non-detenting
Type of piloting Pilot actuated
Flow direction Reversible
Symbol 00991067
Lap Overlap
Signal status display Yes
Pilot pressure 0.3 MPa ... 0.8 MPa
3 bar ... 8 bar
Suitability for vacuum Yes
Flow rate with QS-8 670 l/min
Flow rate with QS-10 860 l/min
Switching time on 9 ms
Switching time reversal 22 ms
Max. positive test pulse with 0 signal 400 µs
Max. negative test pulse with 1 signal 900 µs
Permissible voltage fluctuations ±25%
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
