SPARECRUX is NOT an authorized distributor for FESTO

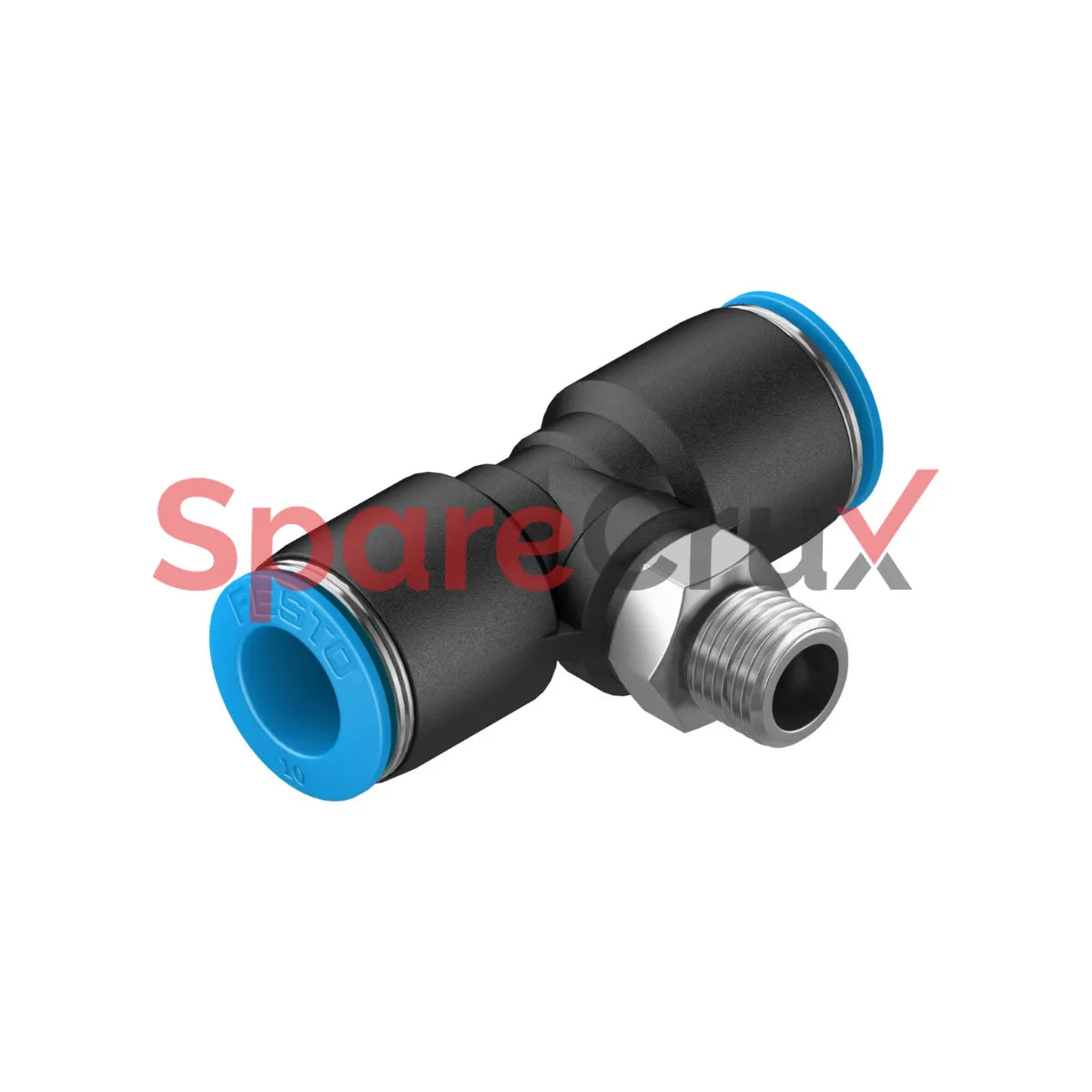

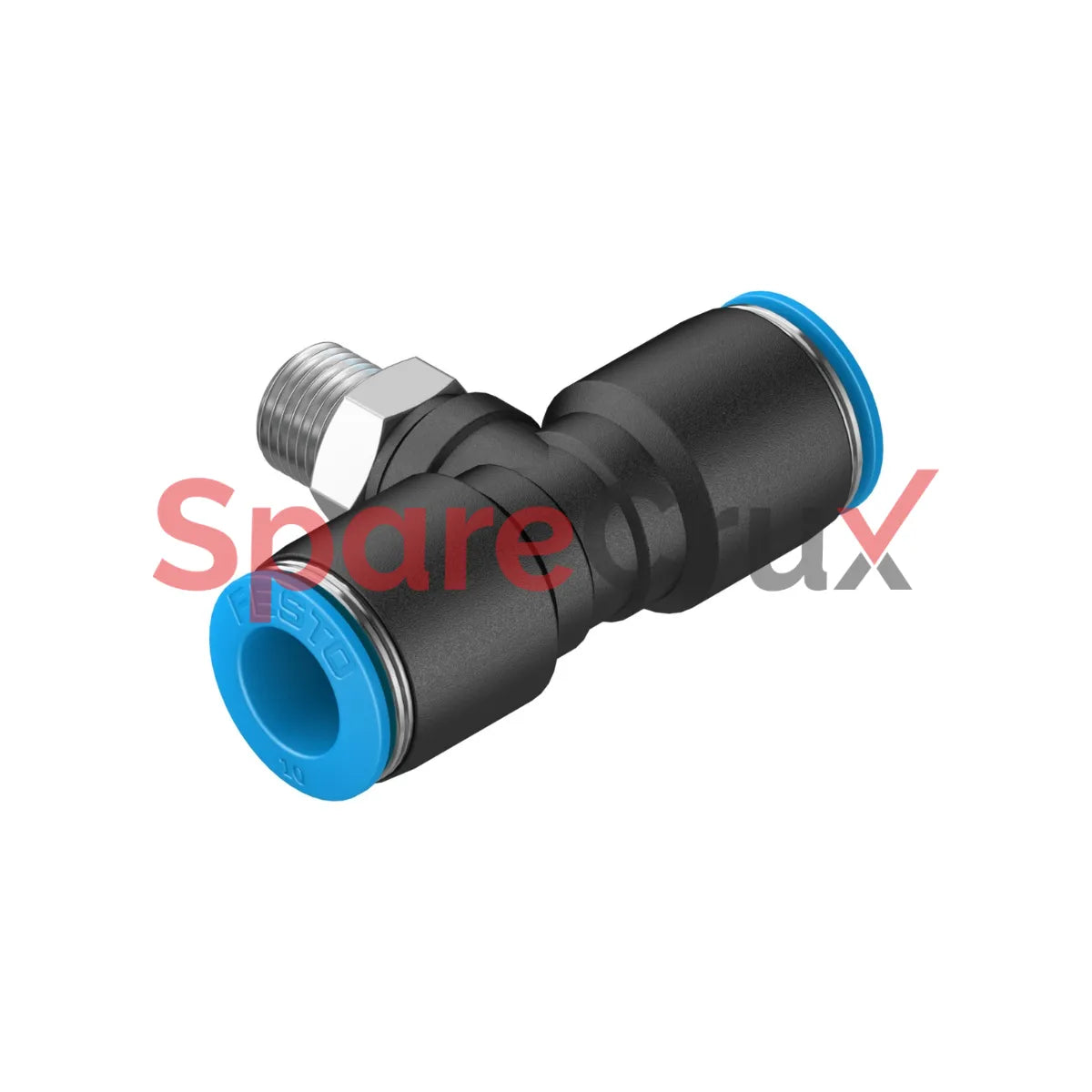

190667 | FESTO | Push-in T-fitting QST-1/8-10

₹ 418.00

₹ 354.24 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

190667

Original Equipment Manufacturer

FESTO

Descripción
Parameter Specification
Size Standard
Nominal size 6 mm
Type of seal on screwed plug Coating
Mounting position Optional
Design T-shape, Push-pull principle
Size of pack 10
Operating pressure (complete temperature range) -0.095 MPa ... 0.6 MPa-0.95 bar ... 6 bar-13.775 psi ... 87 psi
Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa-0.95 bar ... 14 bar-13.775 psi ... 203 psi
Note on operating pressure Water: max. 0.6 MPa at max. 50°C
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (ice-free)
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance class (CRC) 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 4 according to ISO 14644-1
Ambient temperature -10 °C ... 80 °C
Nominal torque 7 Nm
Tolerance for nominal tightening torque ± 20%
Product weight 25 g
Number of outputs 2
Number of supply lines 1
Type of mounting External hexagon, size 12 mm
Pneumatic connection, port 1 Male thread R1/8
Pneumatic connection, port 2 For tubing outside diameter of 10 mm
Colour of release ring Blue
Material screwed plug Nickel-plated brass
Note on materials RoHS-compliant
Material housing PBT
Material release ring POM
Material tubing seal NBR
Material tubing clamp component High-alloy stainless steel
