SPARECRUX is NOT an authorized distributor for FESTO

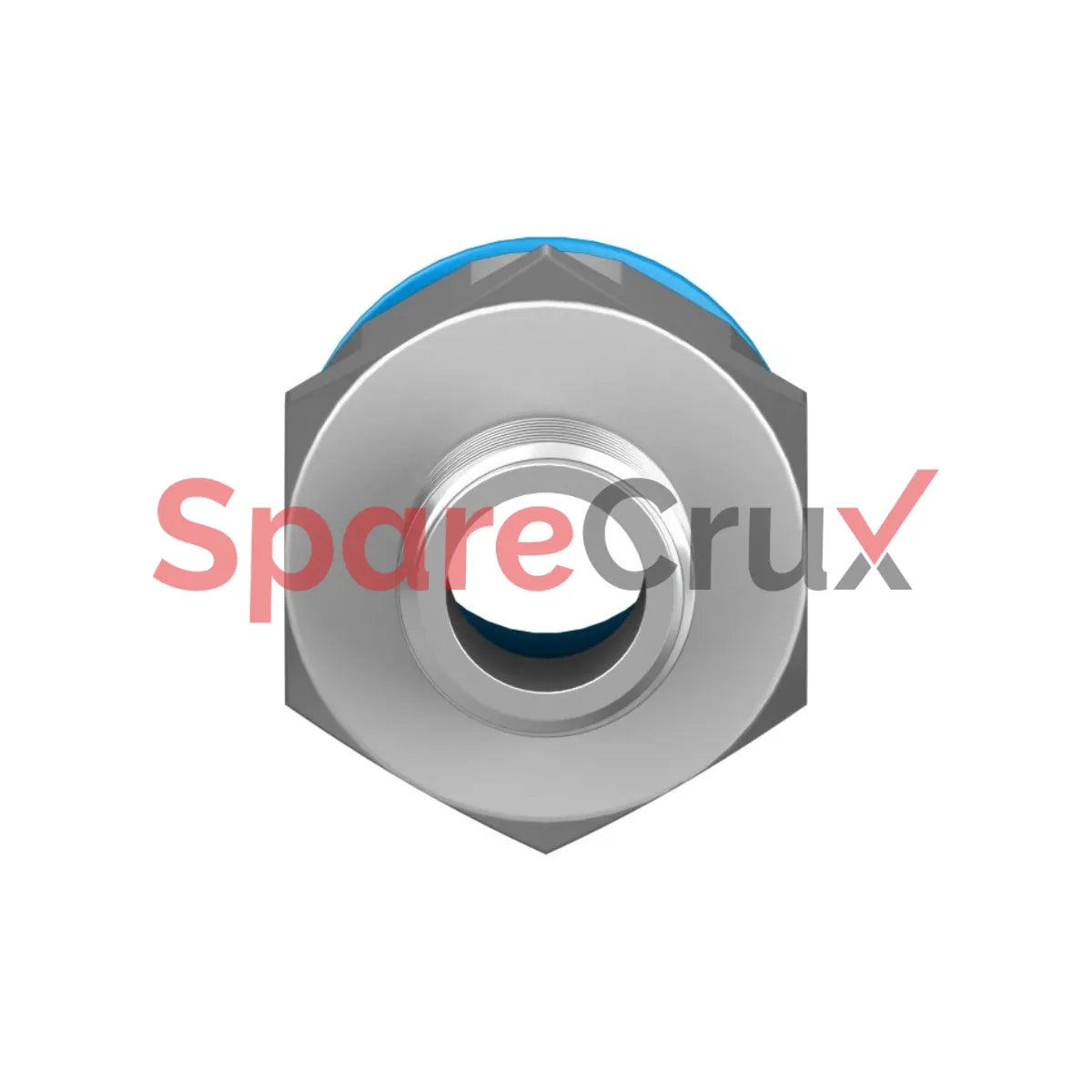

190643 | FESTO | Push-in Fitting QS-1/8-10

₹ 154.56

₹ 130.98 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

190643

Original Equipment Manufacturer

FESTO

Descripción
Feature Details
Size Standard
Nominal size 6 mm
Seal type on screwed plug Coating
Mounting position Optional
Design Straight design, Push-pull principle
Size of pack 10 pieces
Operating pressure (full range) -0.095 MPa ... 0.6 MPa (-0.95 bar ... 6 bar)
Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa (-0.95 bar ... 14 bar)
Operating medium Compressed air (ISO 8573-1), Water (ice-free)
Lubricated operation Possible
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10 °C ... 80 °C
Nominal torque 7 Nm
Tolerance on tightening torque ± 20%
Product weight 21 g
Type of mounting External hexagon, size 17 mm
Pneumatic connection port 1 Male thread R1/8
Pneumatic connection port 2 For tubing outside diameter of 10 mm
Colour of release ring Blue
Material housing Brass, nickel-plated
Material release ring POM
Material tubing seal NBR
Material tubing clamp component High-alloy stainless steel
RoHS compliant Yes
