SPARECRUX is NOT an authorized distributor for FESTO

This product has been discontinued, and manufacturer warranty or support may no longer be available.

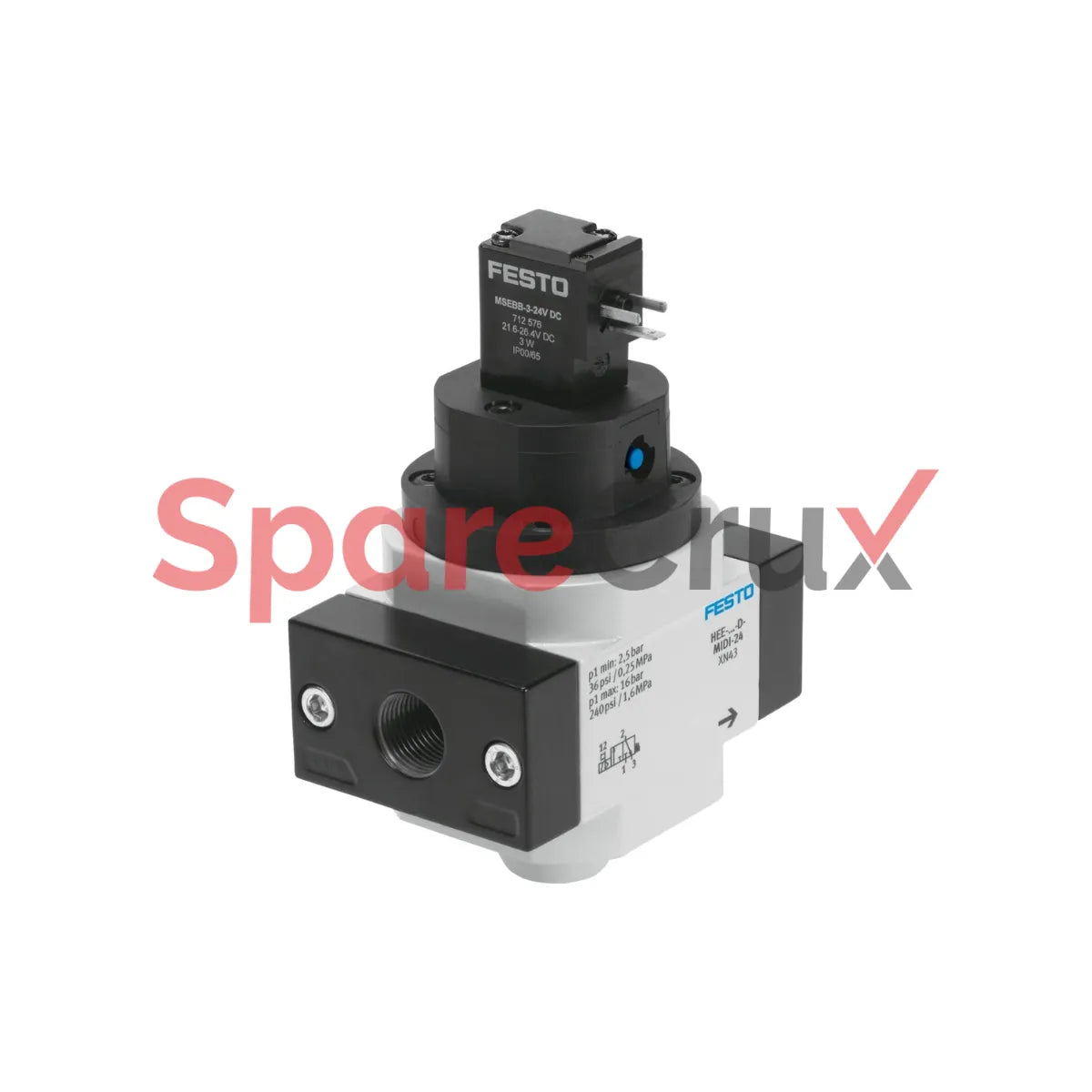

172944 | FESTO | On/off Valve HEE-1/2-D-MIDI-24

₹ 7,036.28

₹ 5,962.95 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

172944

Original Equipment Manufacturer

FESTO

Descripción
Property Value
Design Piston gate valve
Type of actuation Electric
Sealing principle Soft
Exhaust-air function Without flow control option
Manual override Detenting
Type of reset Mechanical spring
Type of piloting Pilot actuated
Symbol 00991008
Valve function 3/2-way, closed, monostable
Operating pressure 0.25 MPa ... 1.6 MPa (2.5 bar ... 16 bar)
Overlap (lap) Overlap
C value 17 l/sbar
b value 0.3
Standard nominal flow rate (DIN 1343) 3600 l/min
Duty cycle 100%
Characteristic coil data 24 V DC: 2.5 W
Permissible voltage fluctuations +/- 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
Note on operating and pilot medium Lubricated operation possible (lubricated operation required if used)
Corrosion resistance class CRC 2 - Moderate corrosion stress
Note on materials RoHS-compliant
LABS (PWIS) conformity VDMA24364-B1/B2-L
Media temperature -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Type of mounting With accessories
Mounting position optional
Flow direction Non-reversible
Product weight 500 g
Pneumatic connection, port 1 G1/2
Pneumatic connection, port 2 G1/2
Pneumatic connection, port 3 G1/4
Air purity class at output Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
Electrical connection Type C
Plugs To DIN EN 175301-803
Signal status display With accessories
Material seals NBR
Material housing Die-cast aluminium
