SPARECRUX is NOT an authorized distributor for BUSSMANN

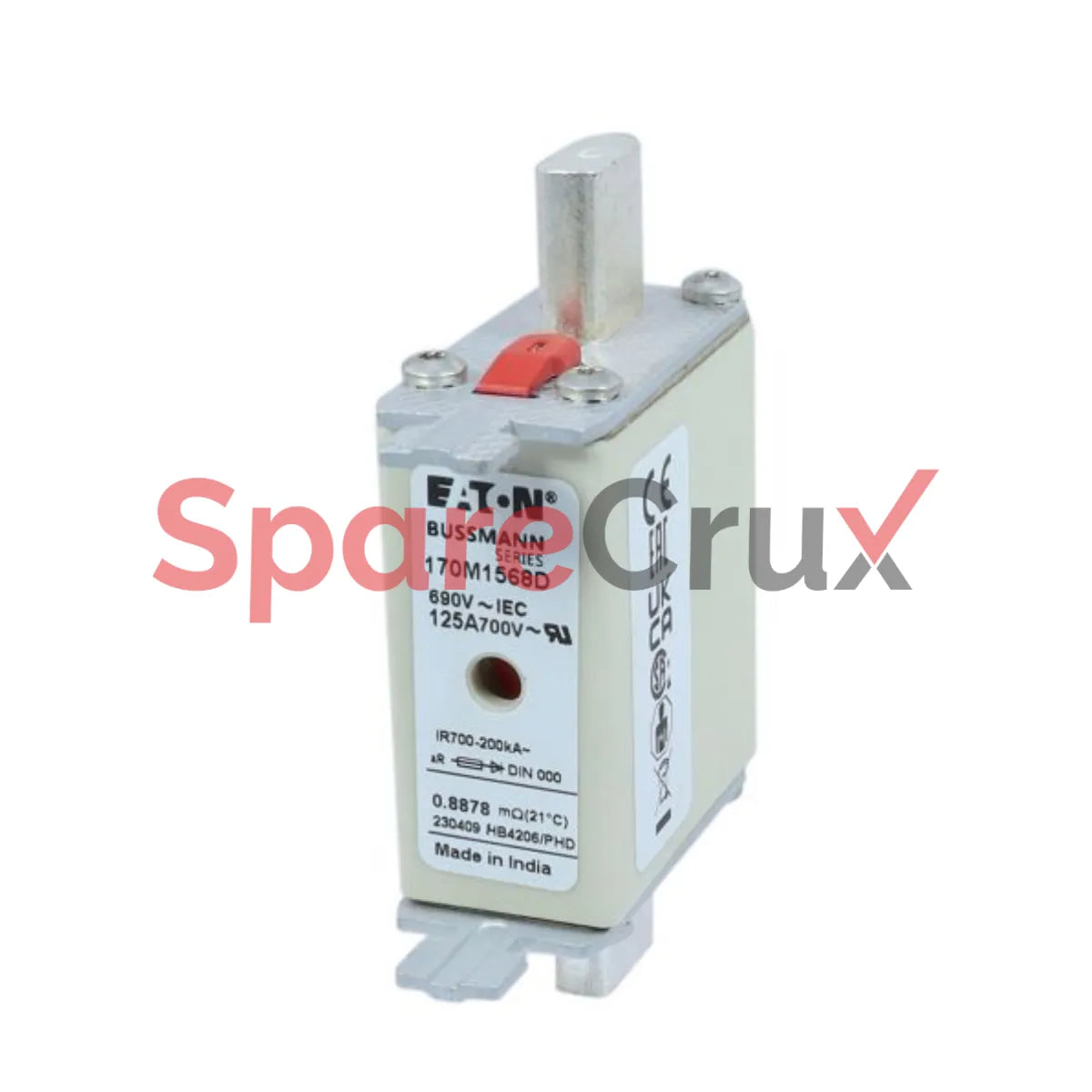

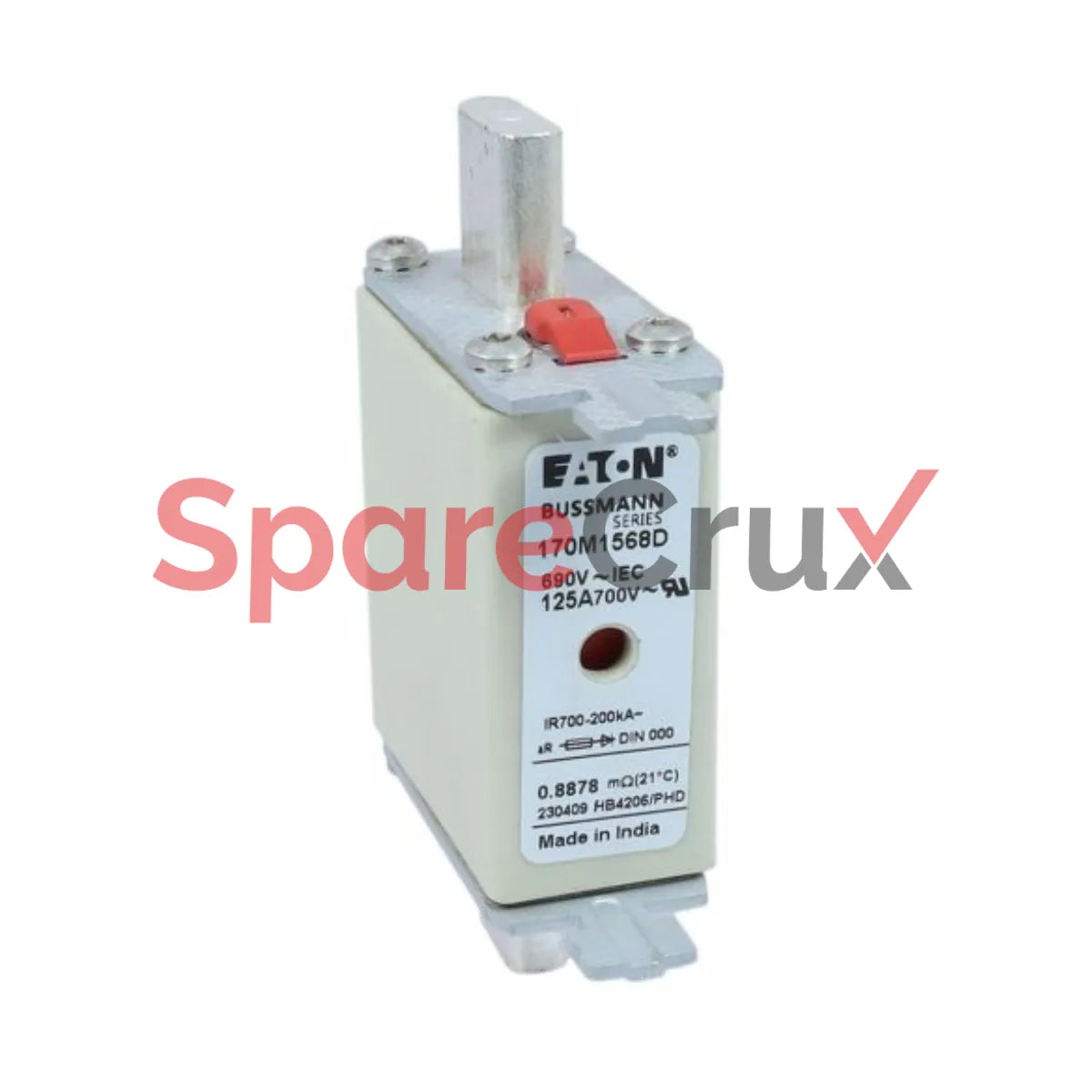

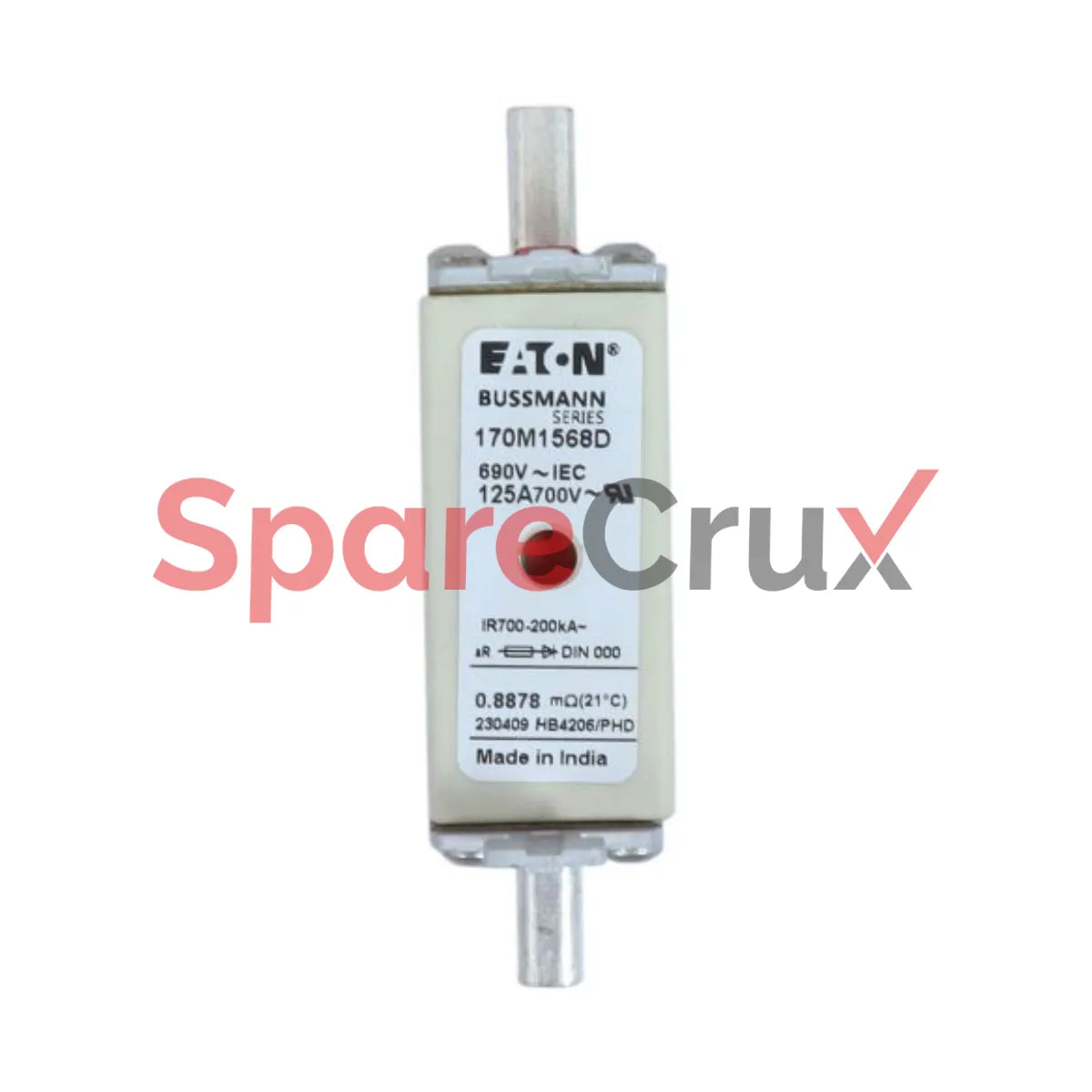

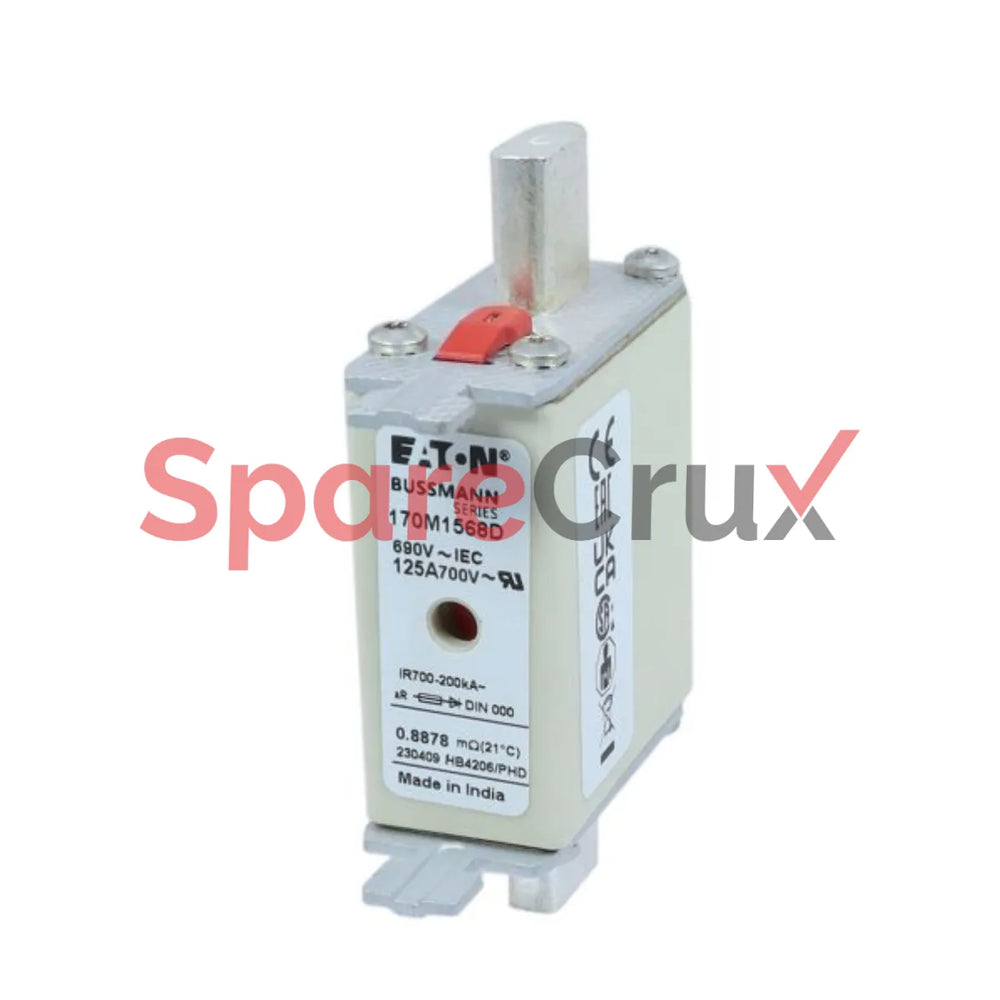

170M1568D | BUSSMANN | FUSE 125A 690V aR DIN 000 HSDNH

₹ 20,933.20

₹ 17,740.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

170M1568D

Original Equipment Manufacturer

BUSSMANN

Descripción
Attribute Details
Product Name Eaton Bussmann series high speed square body fuse
Catalog Number 170M1568D
Model Code FUSE 125A 690V aR DIN 000 HSDNH
UPC 051712334532
EAN 5027590441346
Product Length/Depth 79 mm
Product Height 51 mm
Product Width 21 mm
Product Weight 136.6 g
Warranty Not Applicable
Compliances CE Marked, RoHS Compliant
Certifications UL Recognized, IEC Rated
Global Catalog 170M1568D
Amperage Rating 125 A
Breaking capacity 200 kA
Fuse indicator Combination fuse status indicator
Insulated metal gripping lugs (IMGL) No
Utilization category aR (accompanied semiconductor protection)
Voltage type AC
Fuse size 000
Rated voltage AC 690 V
Current type AC
Class Class aR
Clearing (I2T) 8250 at 660 V
Watt losses 21.5 W
Fuse shape Square body, knife blade contacts
Pre arc (I2T) 1180
Color None
Interrupt rating 200 kAIC
Fitted with Dual indicator
Connection Din 43-620 blade end x Din 43-620 blade end
Construction size 000
Packaging type Standard
Voltage rating 690 V (IEC), 700 V (UL)
Type Fuse
Application Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Fuse type DIN 43620, Bladed
Fuse system (according to IEC 60269) Other
