SPARECRUX is NOT an authorized distributor for FESTO

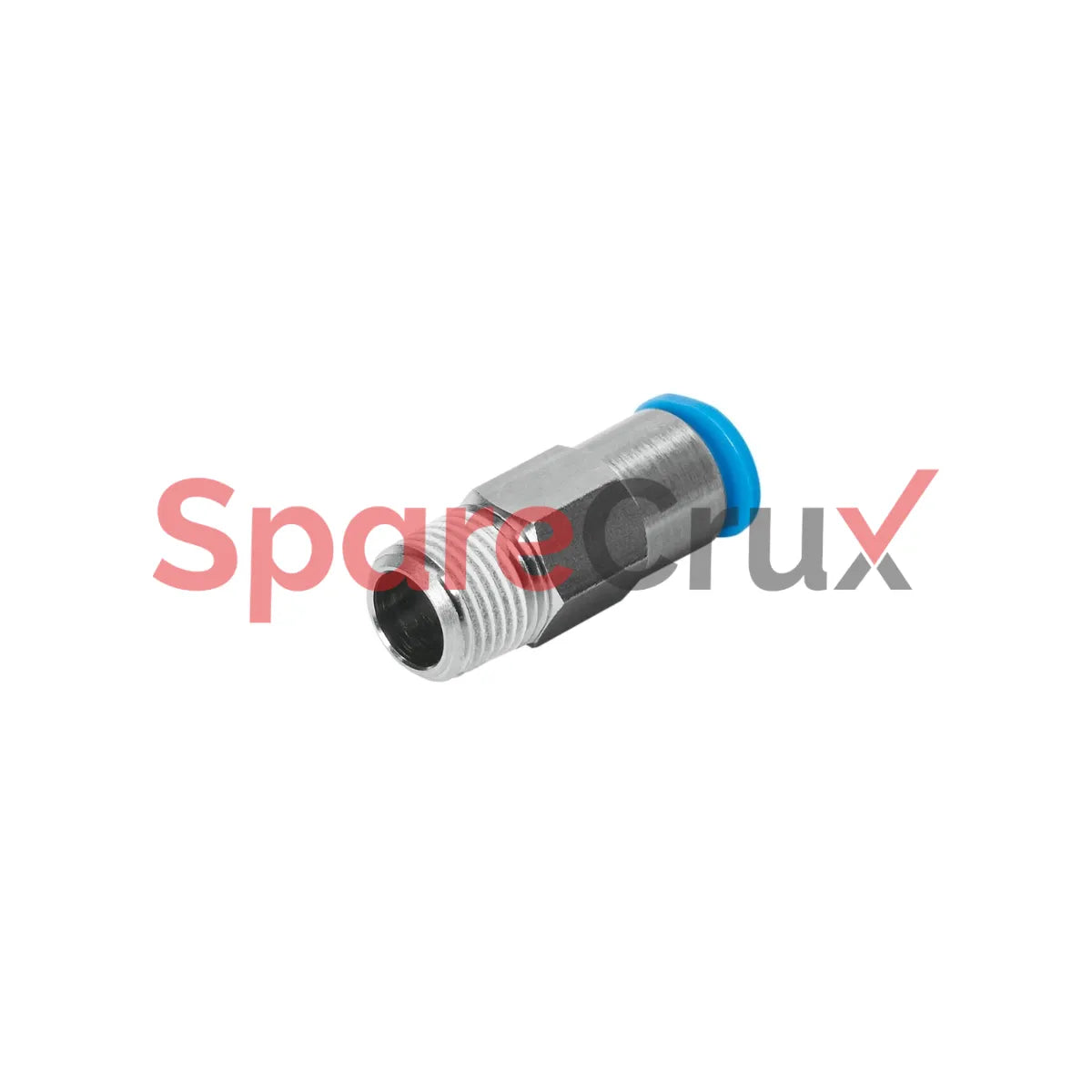

153428 | FESTO | Push-in Fitting, Self-sealing QSK-1/2-12

₹ 576.81

₹ 488.82 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

153428

Original Equipment Manufacturer

FESTO

Descripción
Category Specification
Size Standard
Nominal Size 6.4 mm
Design Straight fitting with push-pull principle
Mounting Position Optional
Tubing Compatibility PAN, PAN-MF, PAN-R, PAN-V0, PEN, PFAN, PLN, PTFEN, PUN (and variants)
Tubing Insertion Depth 23.5 mm
Pneumatic Port 1 Male thread R1/2
Pneumatic Port 2 For tubing outer diameter 12 mm
Colour of Release Ring Blue
Mounting Type External hexagon, 21 mm
Nominal Tightening Torque 26 Nm ± 20%
Operating Pressure (Full Temp) -0.095 MPa to 0.6 MPa(-0.95 to 6 bar, -13.775 to 87 psi)
Temperature-Dependent Pressure Up to 1.4 MPa (14 bar / 203 psi)
Ambient Temperature -10 °C to 80 °C
Operating Medium Compressed air ISO 8573-1:2010 [7:-:-] (lubricated possible)
Corrosion Resistance Class (CRC) CRC 1 – Low corrosion stress
LABS Conformity VDMA24364-B1/B2-L
RoHS Compliance Yes
Weight 65.5 g
