SPARECRUX is NOT an authorized distributor for FESTO

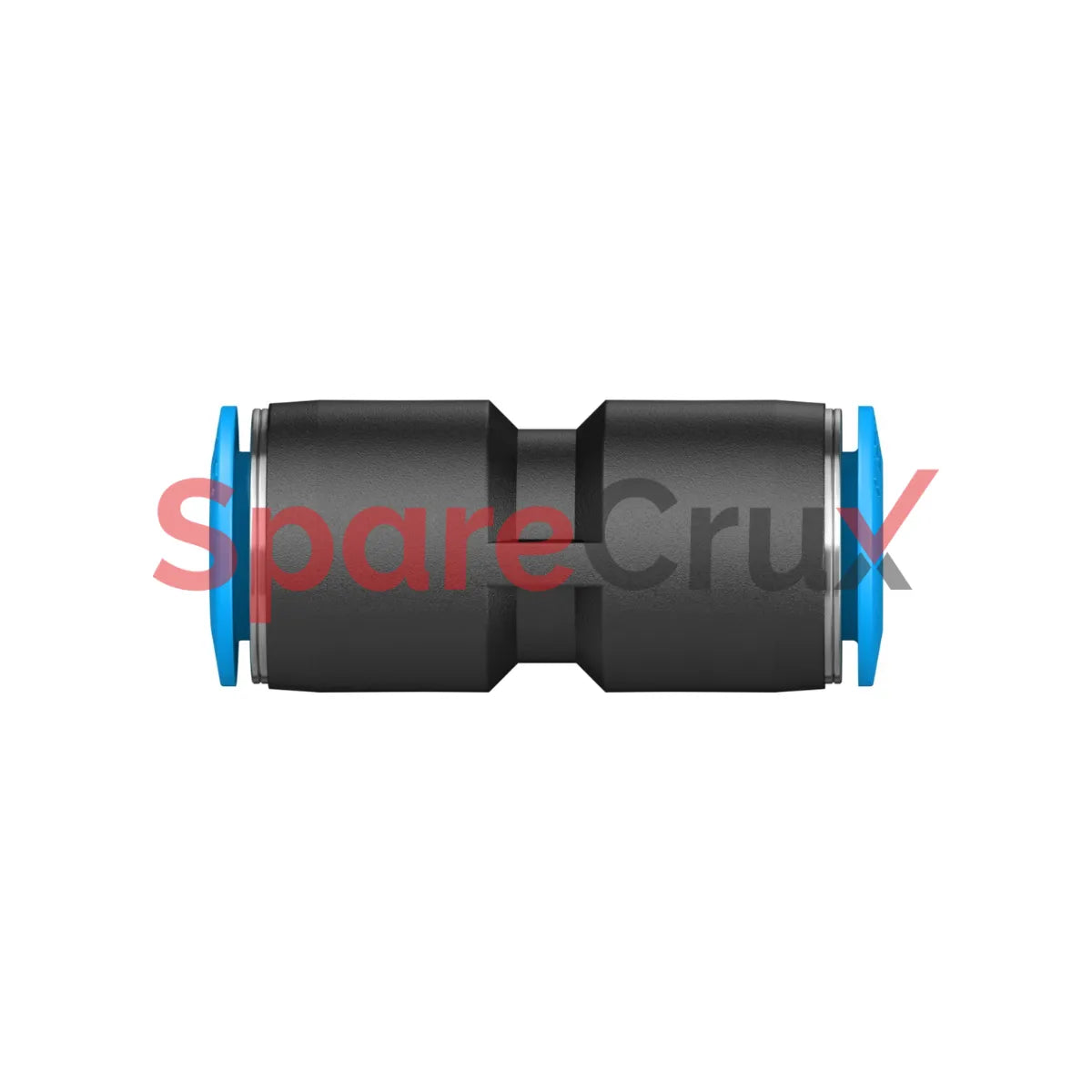

153036 | FESTO | Push-in Connector QS-16

₹ 485.91

₹ 411.79 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

153036

Original Equipment Manufacturer

FESTO

Descripción
Parameter Specification
Size Standard
Nominal size 13 mm
Mounting position Optional
Design Straight design, Push-pull principle
Size of pack 1
Operating pressure (entire temp. range) -0.095 MPa ... 0.6 MPa
-0.95 bar ... 6 bar
-13.775 psi ... 87 psi
Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
-0.95 bar ... 14 bar
-13.775 psi ... 203 psi
Note on operating pressure Water: max. 0.6 MPa at max. 50°C
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (ice-free)
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance class (CRC) 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 4 according to ISO 14644-1
Ambient temperature -10 °C ... 80 °C
Product weight 26 g
Pneumatic connection, port 1 For tubing outer diameter of 16 mm
Pneumatic connection, port 2 For tubing outer diameter of 16 mm
Colour of release ring Blue
Note on materials RoHS-compliant
Material housing PBT
Material release ring POM
Material tubing seal NBR
Material tubing clamp component High-alloy stainless steel
FESTO
