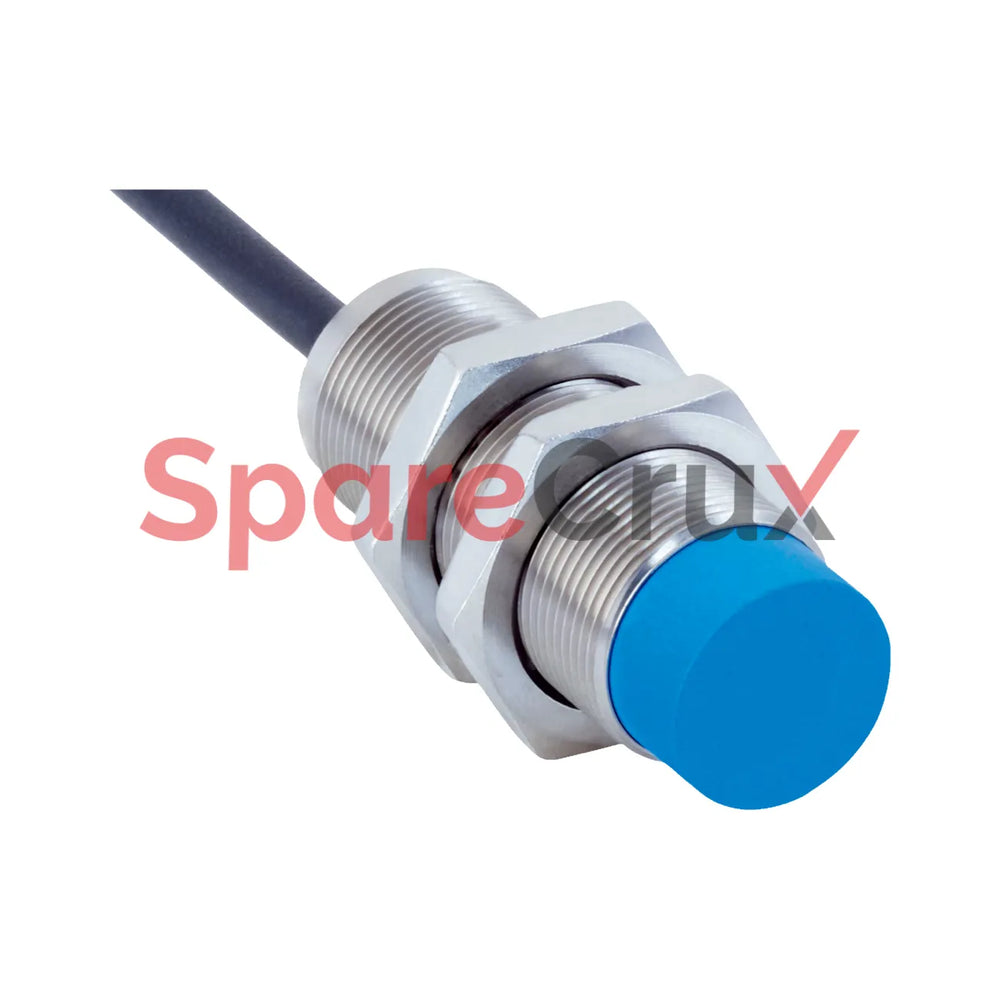

1119669 | SICK SENSORS | IMX18-30NPOZU2S Inductive Proximity Sensor

₹ 7,568.87

₹ 6,414.30 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Standard design
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 30 mm
Safe sensing range Sa 24.3 mm
Installation type Non-flush
Switching frequency 10 Hz
Connection type Cable, 3-wire, 2 m
Switching output PNP
Switching output detail PNP
Output function NC
Electrical wiring DC 3-wire
Enclosure rating IP68 1)
Housing material Nickel-plated brass
Sensing face material Plastic, LCP
Housing length 59 mm
Thread length 46.5 mm
Tightening torque, max. ≤ 30 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1119669

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing – Metric

Housing type – Standard design

Thread size – M18 x 1

Diameter – Ø 18 mm

Sensing range Sn – 30 mm

Safe sensing range Sa – 24.3 mm

Installation type – Non-flush

Switching frequency – 10 Hz

Connection type – Cable, 3-wire, 2 m

Switching output – PNP

Supply voltage – 10 V DC ... 30 V DC

Ripple – ≤ 10 %

Voltage drop – ≤ 2 V

Time delay before availability – ≤ 150 ms

Hysteresis – 5 % ... 15 %

Reproducibility – ≤ 7 %

Temperature drift (of Sr) – ± 10 %

EMC – According to EN 60947-5-2

Continuous current Ia – ≤ 200 mA

No load current – ≤ 50 mA

Cable material – PUR

MTTFD – 411 years

DCavg – 0 %

TM (mission time) – 20 years

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

cULus certificate – ✔

Information according to Art. 3 of Data Act (EU 2023/2854) – ✔

ECLASS 5.1.4 – 27270101

ECLASS 6.0 – 27270101

ECLASS 7.0 – 27270101

ECLASS 8.0 – 27270101

ECLASS 9.0 – 27270101

ECLASS 10.0 – 27270101

ECLASS 11.0 – 27270101

ECLASS 12.0 – 27274001

ECLASS 13.0 – 27274001

ECLASS 14.0 – 27274001
