SPARECRUX is NOT an authorized distributor for SICK SENSORS

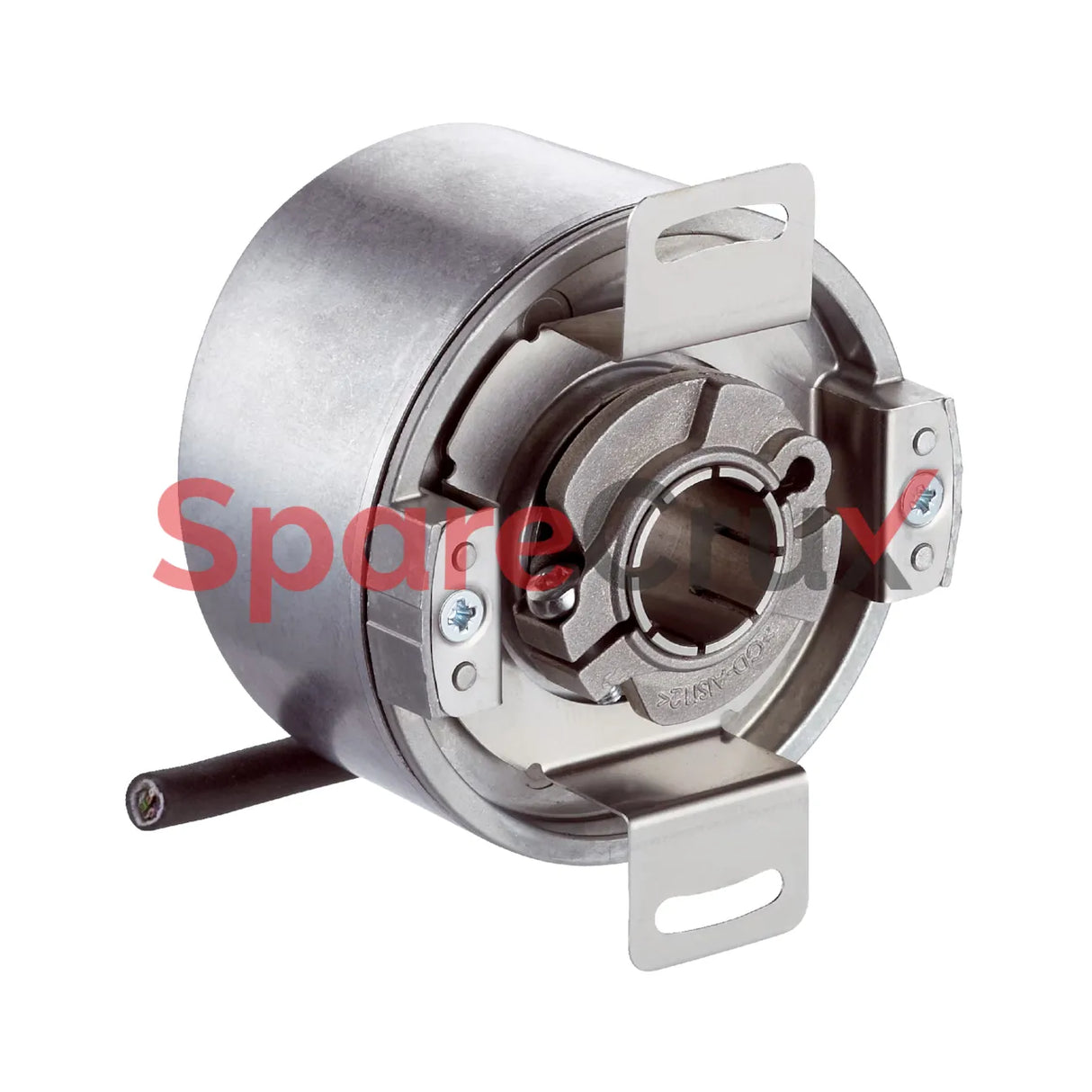

1118787 | SICK SENSORS | AFS60A-TDPK262144 Absolute Encoder

₹ 65,939.34

₹ 55,880.80 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1118787

Original Equipment Manufacturer

SICK SENSORS

Descripción
Connection type Cable, 8-wire, universal, 1.5 m 1)
Supply voltage 4.5 ... 32 V
Power consumption ≤ 0.7 W (without load)
Mechanical design Through hollow shaft
Shaft diameter 10 mm
Characteristics of the shaft Front clamp
Weight 0.2 kg 1)
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum die cast
Start up torque < 0.8 Ncm (+20 °C)
Operating torque < 0.6 Ncm (+20 °C)
Permissible movement static

± 0.5 mm (axial)

± 0.3 mm (radial)
