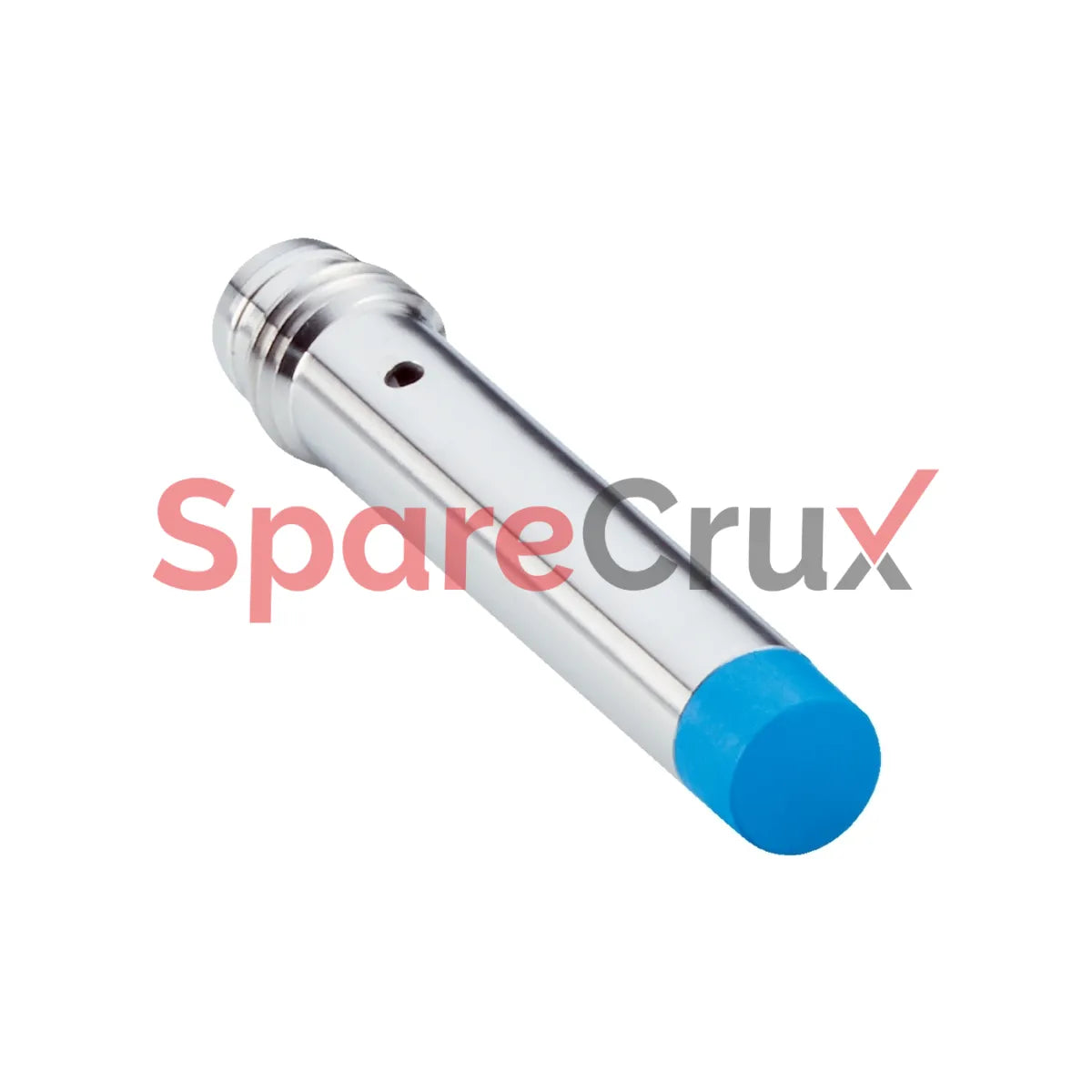

1114155 | SICK SENSORS | IHM06-06NPSVT0S Inductive Proximity Sensor

₹ 4,237.38

₹ 3,591.00 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Housing Cylindrical
Housing Standard design
Diameter Ø 6.5 mm
Sensing range Sn 6 mm
Safe sensing range Sa 4.86 mm
Installation type Non-flush
Switching frequency 1,000 Hz
Connection type Connector M8, 3-pin
Switching output PNP
Switching output detail PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 50 mm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1114155

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Cylindrical

Housing - Standard design

Diameter - Ø 6.5 mm

Sensing range Sn - 6 mm

Safe sensing range Sa - 4.86 mm

Installation type - Non-flush

Switching frequency - 1,000 Hz

Connection type - Connector M8, 3-pin

Switching output - PNP

Switching output detail - PNP

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 20 % 1)

Voltage drop - ≤ 2 V 2)

Time delay before availability - ≤ 80 ms

Hysteresis - 1 % ... 10 %

Reproducibility - ≤ 2 % 3)

Temperature drift (of Sr) - ≤ 10 %

EMC - EN 60947-5-2

Continuous current Ia - ≤ 200 mA

Short-circuit protection - ✔

Power-up pulse protection - ✔

MTTFD - 1,330 years

DCavg - 0 %

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

IO-Link certificate - ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) - ✔

Note - The values are reference values which may vary

St37 steel (Fe) - 1

Stainless steel (V2A, 304) - Approx. 0.75

Aluminum (Al) - Approx. 0.5

Copper (Cu) - Approx. 0.43

Brass (Br) - Approx. 0.54
