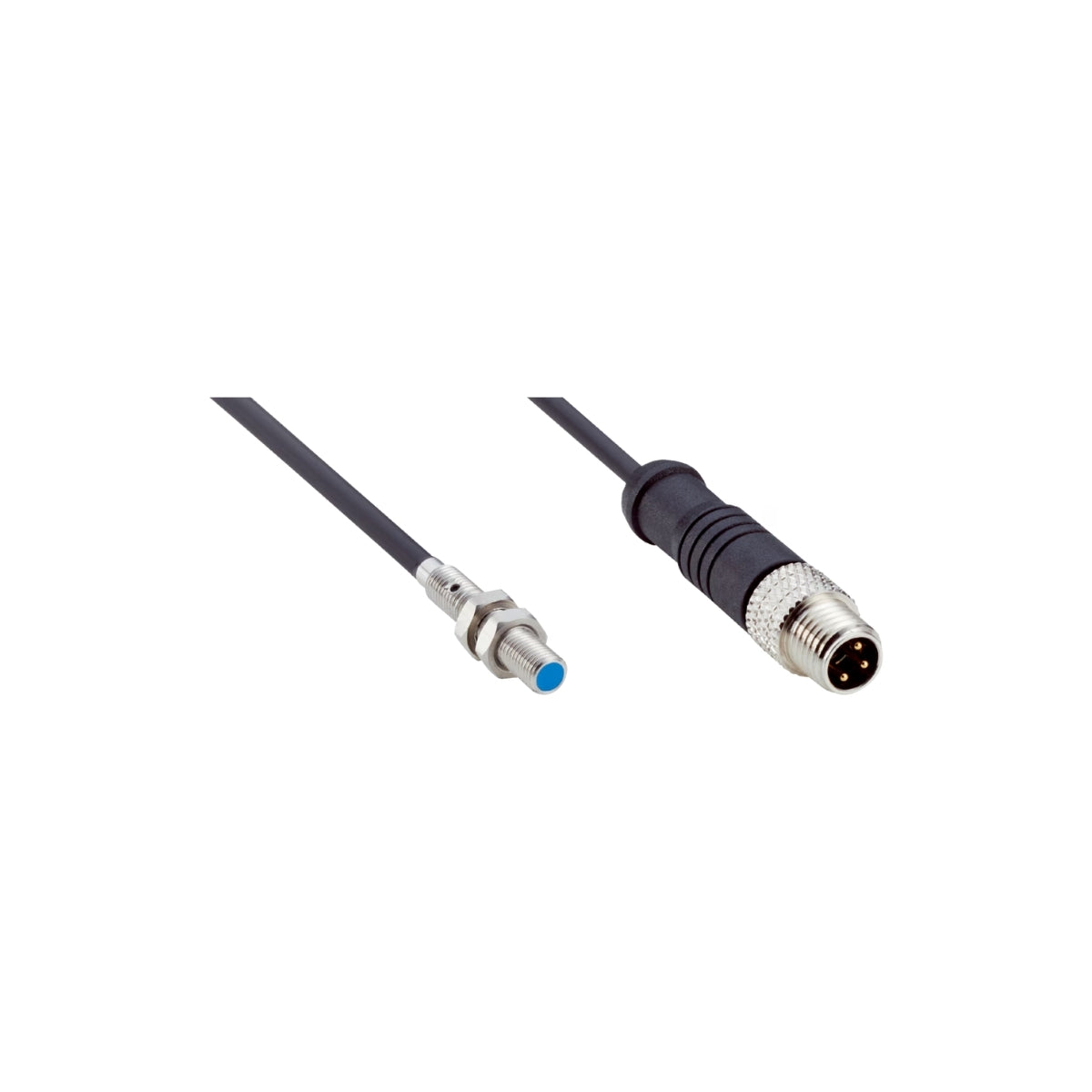

1108732 | SICK SENSORS | IMM05-0B8NSVR8S Inductive Proximity Sensor

₹ 4,050.46

₹ 3,432.60 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Standard design
Thread size M5 x 0.5
Diameter Ø 5 mm
Sensing range Sn 0.8 mm
Safe sensing range Sa 0.648 mm
Installation type Flush
Switching frequency 5,000 Hz
Connection type Cable with connector M8, 3-pin, 0.2 m
Switching output NPN
Switching output detail NPN
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 25 mm
Thread length 23 mm
Tightening torque, max. ≤ 1.5 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1108732

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric

Housing - Standard design

Thread size - M5 x 0.5

Diameter - Ø 5 mm

Sensing range Sn - 0.8 mm

Safe sensing range Sa - 0.648 mm

Installation type - Flush

Switching frequency - 5,000 Hz

Connection type - Cable with connector M8, 3-pin, 0.2 m

Switching output - NPN

Switching output detail - NPN

Output function - NO

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 20 % 1)

Voltage drop - ≤ 2 V 2)

Time delay before availability - ≤ 10 ms

Hysteresis - 1 % ... 15 %

Reproducibility - ≤ 2.5 % 3)

Temperature drift (of Sr) - ≤ 10 %

EMC - EN 60947-5-2

Continuous current Ia - ≤ 200 mA

Cable material - PUR

Cable diameter - Ø 2.9 mm

MTTFD - 1,350 years

DCavg - 0 %

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

IO-Link certificate - ✔

Note - The values are reference values which may vary

St37 steel (Fe) - 1

Stainless steel (V2A, 304) - Approx. 0.72

Aluminum (Al) - Approx. 0.49

Copper (Cu) - Approx. 0.42

Brass (Br) - Approx. 0.56
