SPARECRUX is NOT an authorized distributor for SICK SENSORS

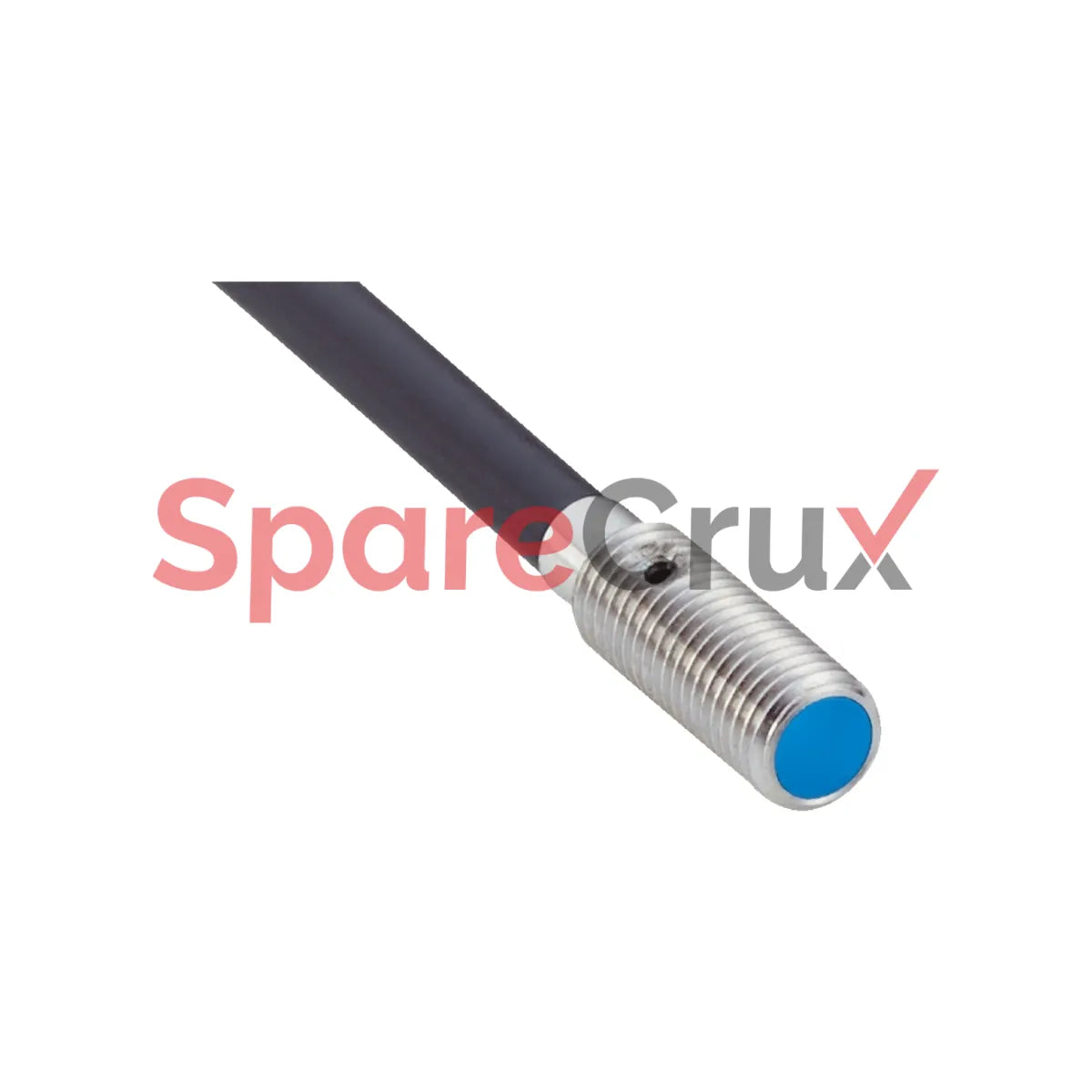

1105620 | SICK SENSORS | IMM05-1B5NSVU2K Inductive Proximity Sensor

₹ 3,495.63

₹ 2,962.40 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1105620

Original Equipment Manufacturer

SICK SENSORS

Descripción

Housing Metric
Housing Short-body
Thread size M5 x 0.5
Diameter Ø 5 mm
Sensing range Sn 1.5 mm
Safe sensing range Sa 1.215 mm
Installation type Flush
Switching frequency 4,800 Hz
Connection type Cable, 3-wire, 2 m
Switching output NPN
Switching output detail NPN
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 12 mm
Thread length 10 mm
Tightening torque, max. ≤ 1.5 Nm



SICK SENSORS 1105620 IMM05-1B5NSVU2K Inductive Proximity Sensor
SICK SENSORS

1105620 | SICK SENSORS | IMM05-1B5NSVU2K Inductive Proximity Sensor

₹ 2,962.40
Housing Metric
Housing Short-body
Thread size M5 x 0.5
Diameter Ø 5 mm
Sensing range Sn 1.5 mm
Safe sensing range Sa 1.215 mm
Installation type Flush
Switching frequency 4,800 Hz
Connection type Cable, 3-wire, 2 m
Switching output NPN
Switching output detail NPN
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 12 mm
Thread length 10 mm
Tightening torque, max. ≤ 1.5 Nm
